VS Capsule Preassembled Trim Rings

Discover the simple and cost-effective alternative to trim your VS Capsules with our preassembled Trim Rings. This product is hand-crafted and preassembled from beautiful prefinished maple.

Elevate the functionality and aesthetics of your VS Capsules with our preassembled Trim Rings, a simple and cost-effective solution crafted from beautiful prefinished maple. Each hand-crafted ring features secure bracers at the corners to maintain its shape while providing sturdy support for your extended mattress, ensuring both style and stability. Installation is a breeze, taking approximately 30 minutes with just wood glue and a power drill, thanks to pre-drilled holes that guarantee a perfect fit every time. Designed to integrate seamlessly with our Serg Supply wall panel kits, these trim rings come with everything you need, including driver and passenger side rings and mounting fasteners. With outer dimensions tailored for Sprinter 144, Sprinter 170 and Transit 148 models, our DIY Trim Rings are the ideal choice for enhancing your van's interior while maintaining a polished look. These will generally ship with the drivers side ring in Box 1. In Box 2 there will be the passengers side ring and both of the backings.

Note: These rings are specifically designed for Vanspeed Capsules and will not fit Flares.

Features

• Secure and Stylish: Bracers on each corner hold the shape and a sturdy assembly holds your extended mattress without sacrificing on looks
• Easy to Install: Each set takes around 30 minutes to install with nothing but wood glue and a power drill. Pre-drilled holes guide you for a perfect fitment every time.  When paired with a Serg Supply wall panel kit, this product integrates seamlessly.

Materials

• Prefinished Maple: 3/4" Prefinished Semigloss coat on maple plywood

Please refer to our materials page here to see images and details of each option: Materials

What's Included

In the box there will be:

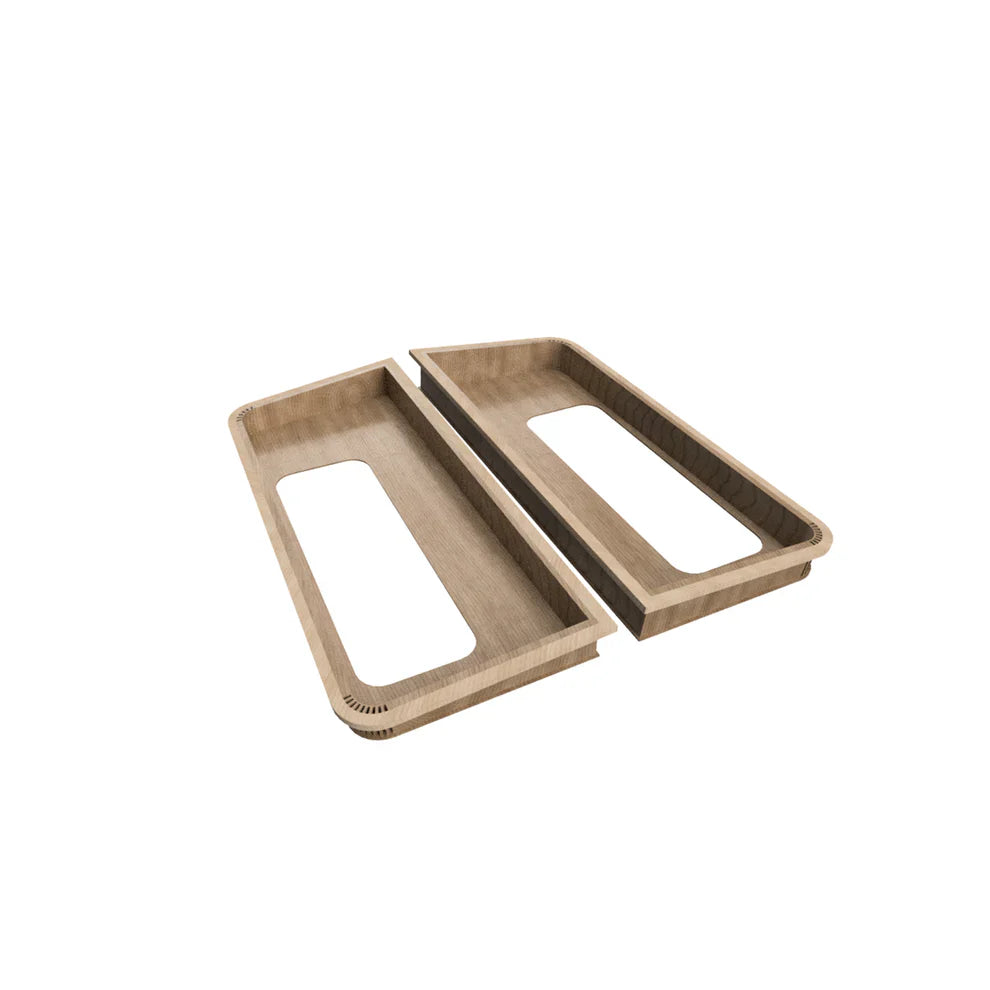

• Driver Side Ring
• Passenger Side Ring

• 16 1-1/4" Mounting Fasteners + Washers
  Hardware: Please note that this product will come with Stainless Steel Hardware.  Please inform us if you would like Black Oxide and we can send you a quote for the change.


Specs

• Sprinter 144:
  • Outer Dimensions: 55"W x 25"H x 6"/4.75"D
  • Inner Dimensions: 50"W x 22"H
• Sprinter 170:
  • Outer Dimensions: 39"W x 24"H x 6.25"/4.75"D
  • Inner Dimensions: 36"W x 20.5"H
• Transit 148:
  • Outer Dimensions: 49.75"W x 20.5"H x 7.25"/6.25"D
  • Inner Dimensions: 44"W x 15.75"H

DIY Installation

Our DIY Trim Ring is designed to fit your walls with screws.

• Installation Difficulty: Easy | 1 Person
• Installation Time: 30 minutes
• Tools Needed: Power Drill, wood glue

FAQs

How do I install the trim rings by mounting to the Serg Supply Wall Panel Kit?

These are made to be directly compatible with our own wall panel kits. The opening to your trim rings coincides perfectly with the opening on your wall panel kit. Fasteners are included to mount on all four corner. You can glue on additional strips on the top and bottom to add fastening points at your own discretion.

How do I know if this Trim Ring will fit my vehicle?

These trim rings are specifically made for the Vanspeed Capsules in each submodel selection. Note: This will not fit Flares.
