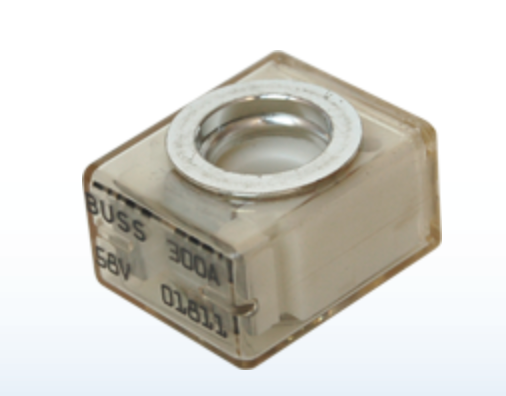

- Requires the use of Terminal Fuse Blocks PN 5191 or PN 2151—do not mount the fuse directly to the battery terminal
- Interrupt rating satisfies ABYC requirements for DC Main circuit protection on large battery banks
- Ignition protected—safe for installation aboard gasoline powered boats
- Clear window—visual indication of blown condition
- Color coded for each amperage
Specifications | |
---|---|
Amperage | 300A |
Ignition Protected ![]() |
Yes |
Maximum Voltage | 58V DC |
Interrupt Capacity ![]() |
10000A @ 14V DC 5000A @ 32V DC 2000A @ 58V DC |
Weight | 0.06lb (0.03 kg) |
