Mercedes Sprinter SLIDING Window WITH FLY SCREEN And DROP PIN LOCK – Driver Side

Mercedes Sprinter SLIDING Window WITH FLY SCREEN And DROP PIN LOCK – Driver Side

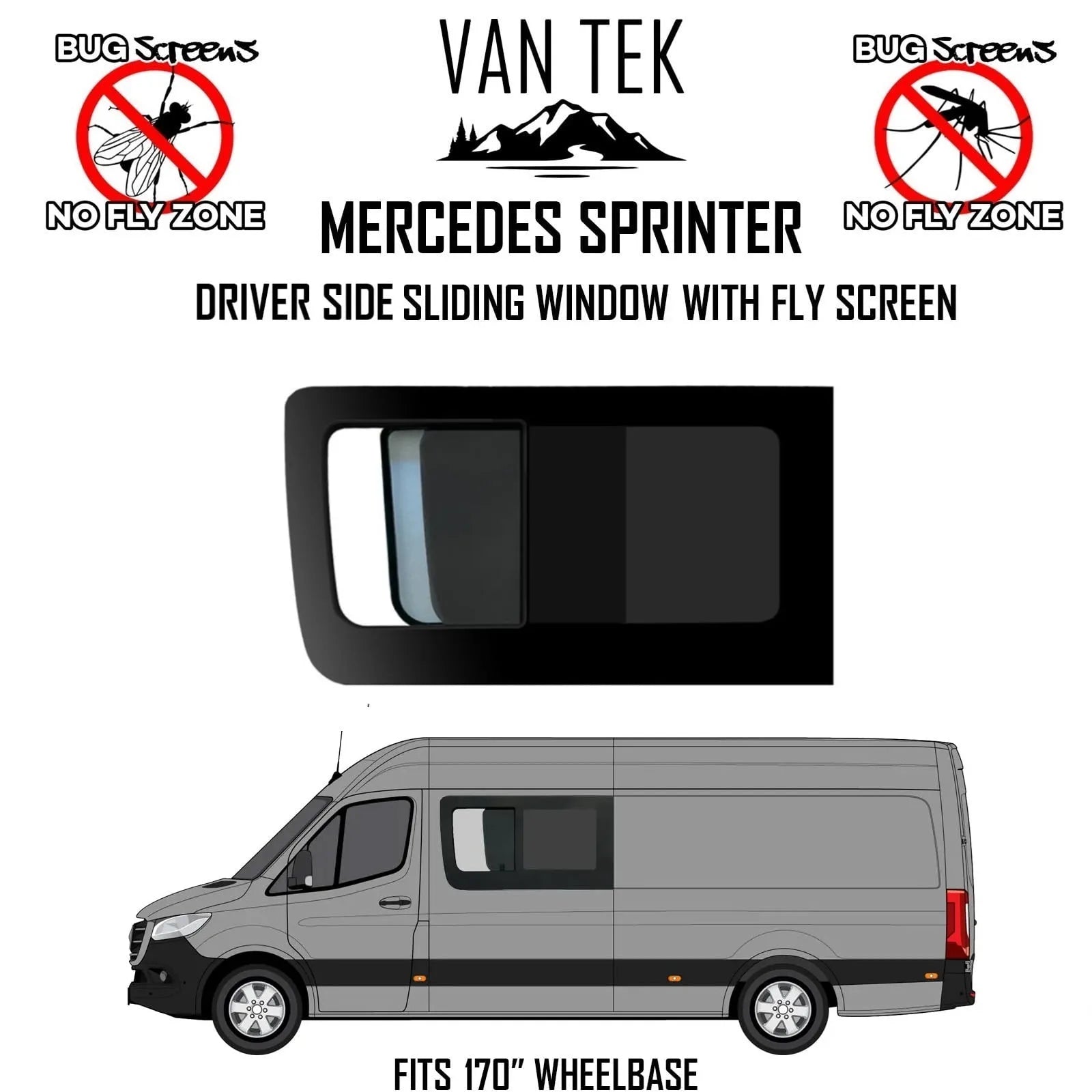

BRAND NEW 2025 Mercedes Sprinter Sliding Window With Fly Screen and DROP PIN LOCK

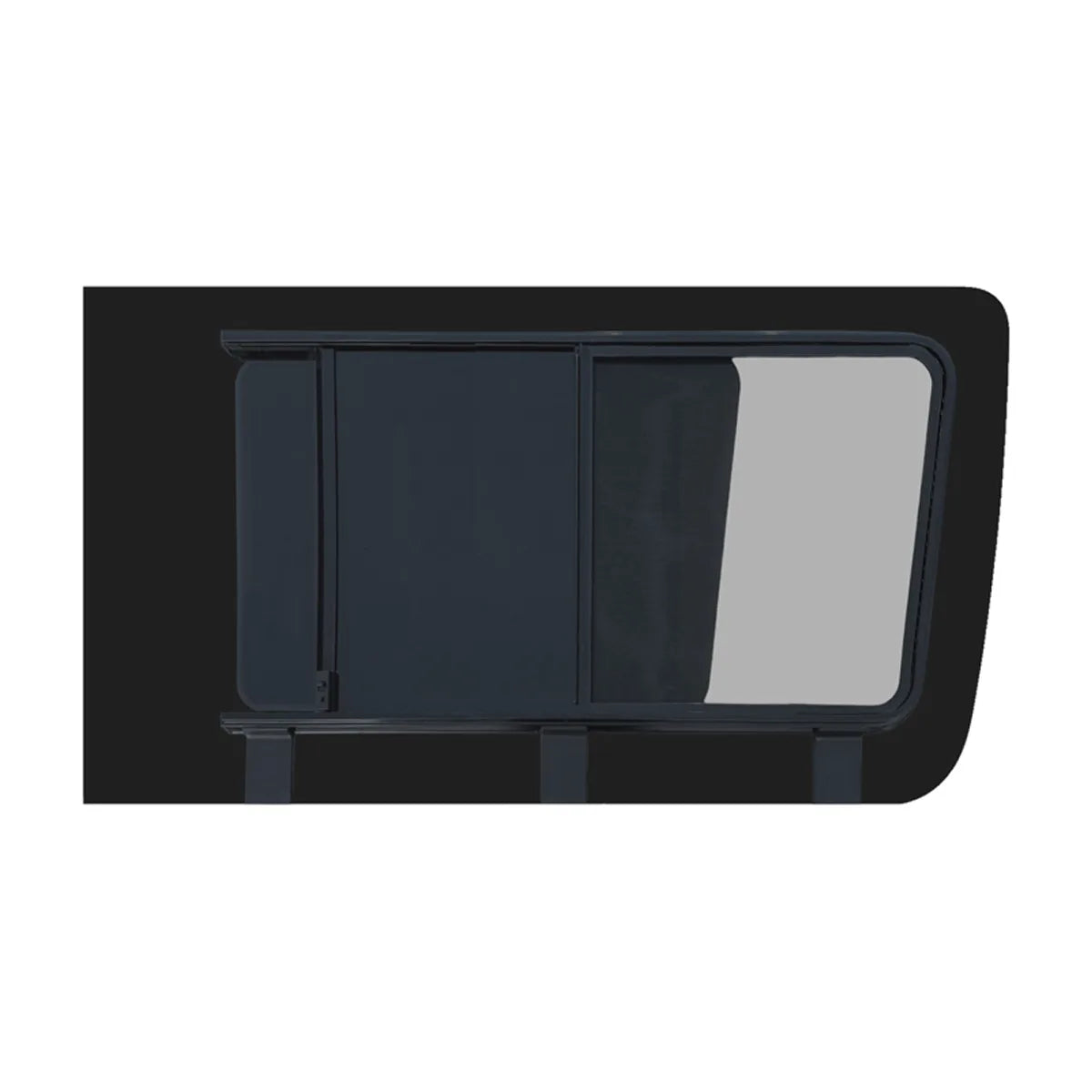

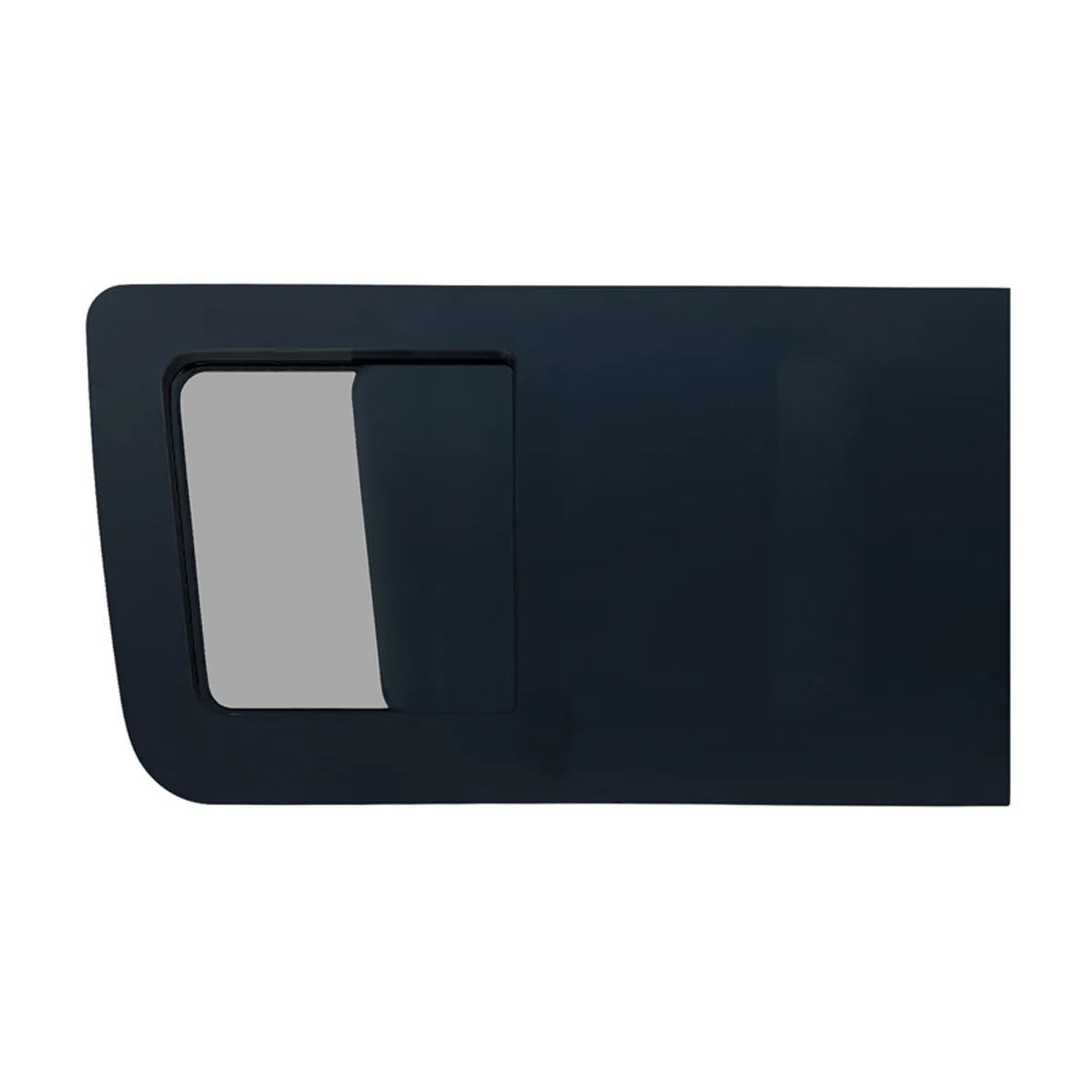

This brand new design has the ability for the window to be locked in multiple open positions and be fully locked preventing the window being opened from outside.

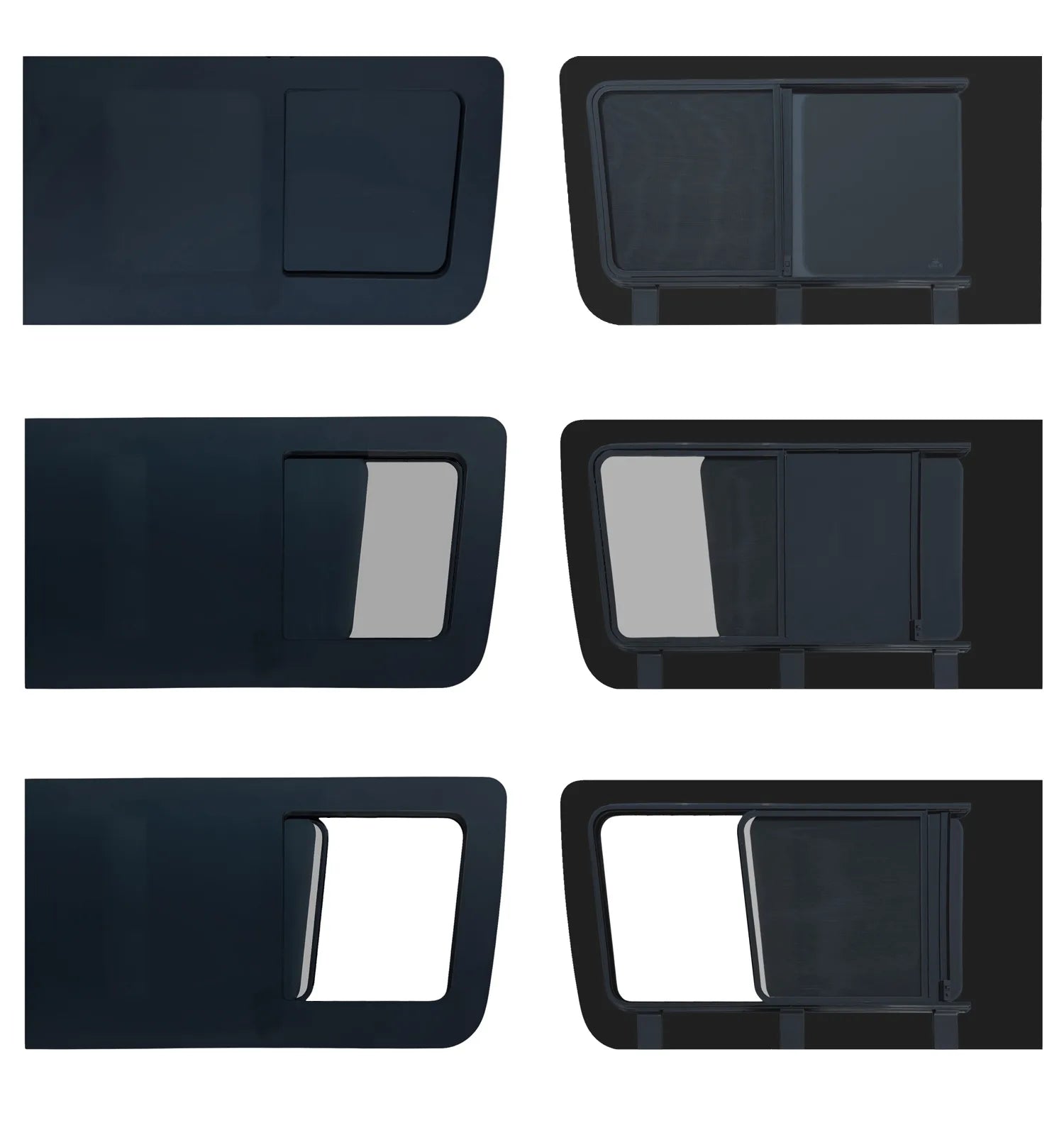

The locked ventilation feature locks the window open 2″ but can also be locked at 8″ open and 16″ open.

The fly screen slides independently to the sliding window giving protection from flying insects at any open position.

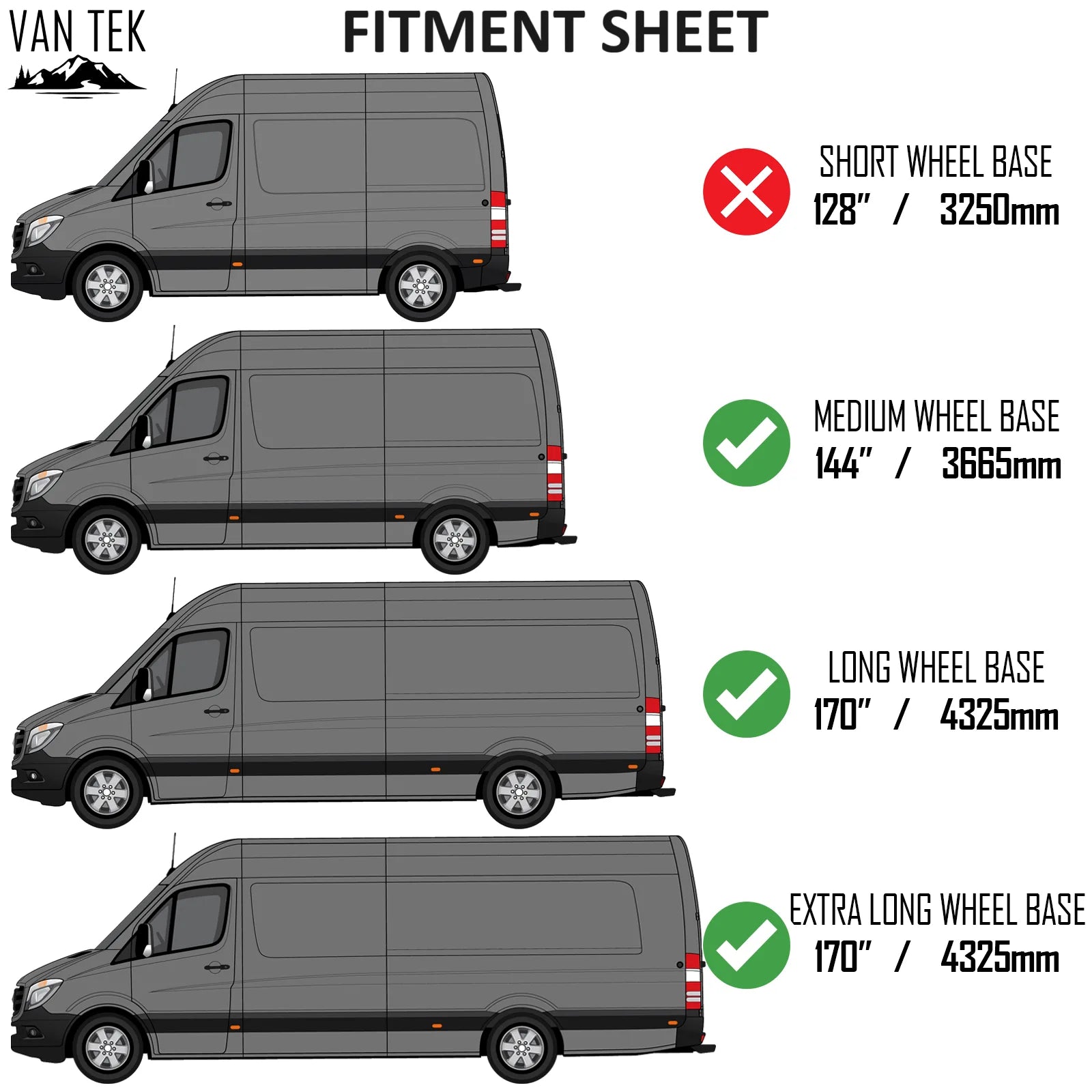

To Fit:

Mercedes Sprinter 2007 – 2025

Mercedes Sprinter MWB 144″

Mercedes Sprinter LWB 170″

Mercedes Sprinter XLWB Extended 170″

Includes:

1 x Mercedes Sprinter Sliding Window WITH INTERNAL FLY SCREEN And Drop Pin Lock – Driver Side

Window Specs:

• Manufacturer: Van Tek Glass
• Manufacturer Part Number: VTGSPRBFL-R
• All our glass meets international safety standards these include: Worldwide Dot Standards, USA Federal Motor Vehicle Safety Standards
• E-marked and AS Rated to strict European standards
• Toughened safety glass
• Sliding opening window
• Internal Fly/Insect Screen
• Drop Pin Lock – Sliding Window Can Be Locked in Multiple Open Positions
• Fly Screen slides independently to the opening window to allow airflow whilst being protected from flying insects entering the vehicle.
• Bonded window – No external seal or gasket
• Privacy stained glass (not a tinting film)
• Tinted to 80% allowing 20% of light to pass through
• Made in Europe
• Av Rating 15% (block 15% of UV rays)
• External Drainage system
• Black ceramic (silk print) round the internal circumference of the glass so you can’t see the cut metal work
• Tried and tested design
• Driver Side Size 1406mm x 769mm

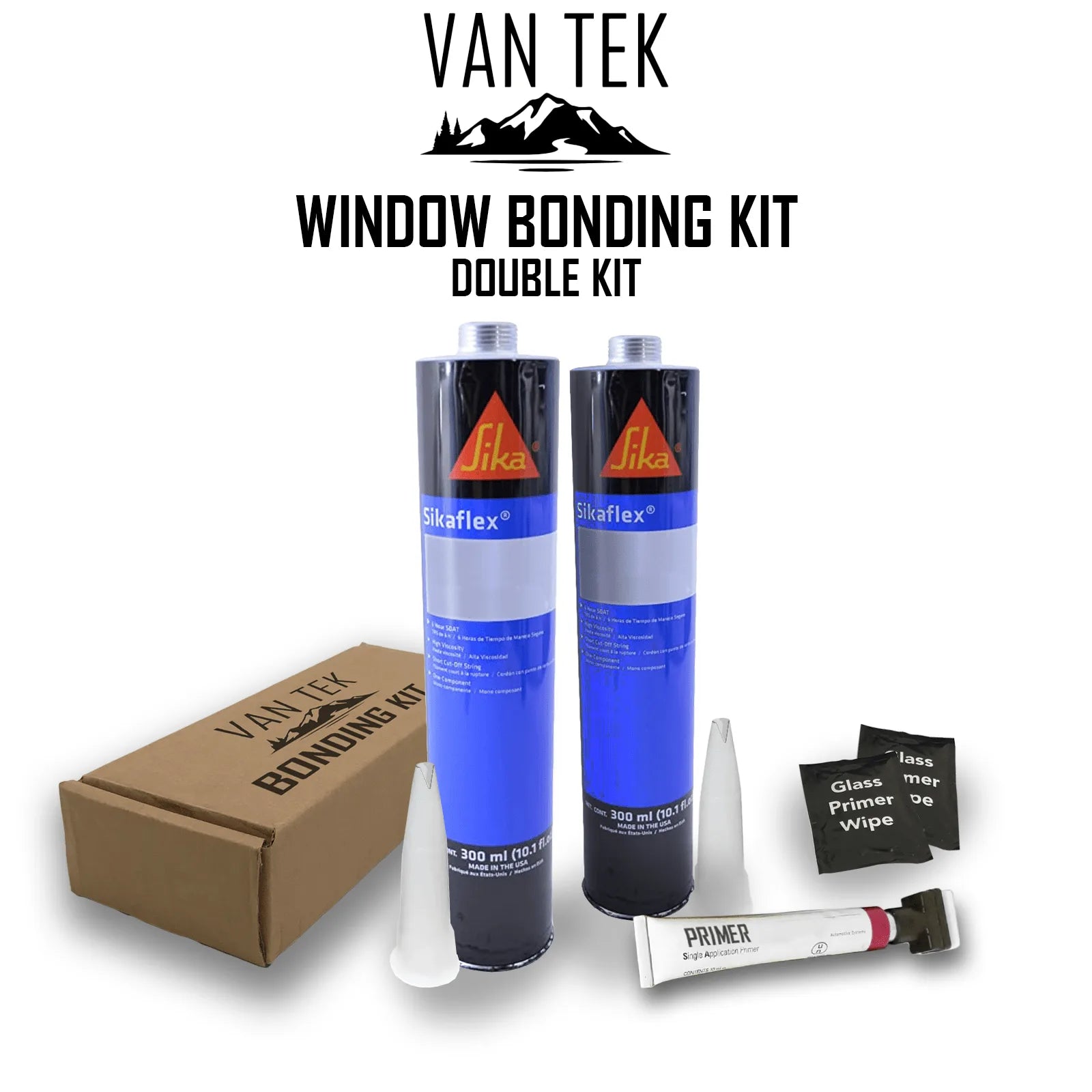

Optional Bonding Kit:

• 2 x Sika Flex P2G Urethane Adhesive Tubes (applied through standard silicone gun)
• 2 x Nozzle tips to apply the adhesive
• 2 x Primer Stick’s with applicator (to be applied to the window and body panel before applying adhesive)
• 1 x Glass Wipe/Panel Wipe (to clean the window and body panel before applying primer)
• 1 x Bonding Kit Instruction Manual
• More fitting kit info here: https://vantekglass.com/product/2-x-tube-window-bonding-kit/

The bonding kit can be purchased by adding it to your cart with the window you require via the drop down fit kit and trim options

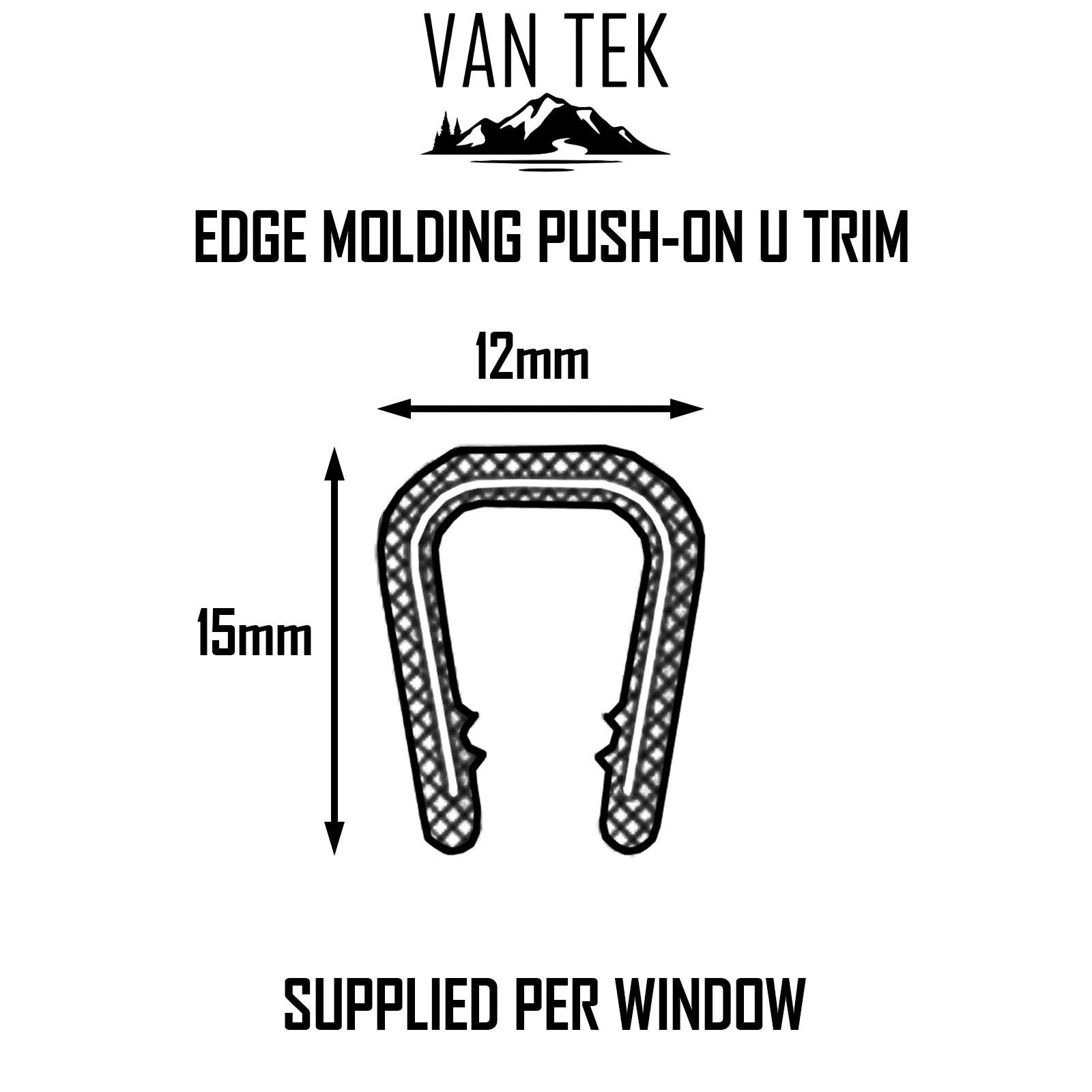

Optional U Trim:

U Trim is used to cover the cut edge. It cover the inner lip and cut edge in one.

• Used to cover the cut edge for a professional finish
• Sold Per window
• 12mm wide
• 15mm tall
• 4 x Meter Long

The trim can be purchased by adding it to your cart with the window you require via the drop down fit kit and trim options
