Ford Transit Aluminum Ceiling Furring Kit

This low-profile aluminum furring system delivers the structural support your ceiling demands with lasting durability. Constructed from .063" aluminum, it resists rust and corrosion indefinitely while offering flexible installation via screws, rivets, or adhesive.

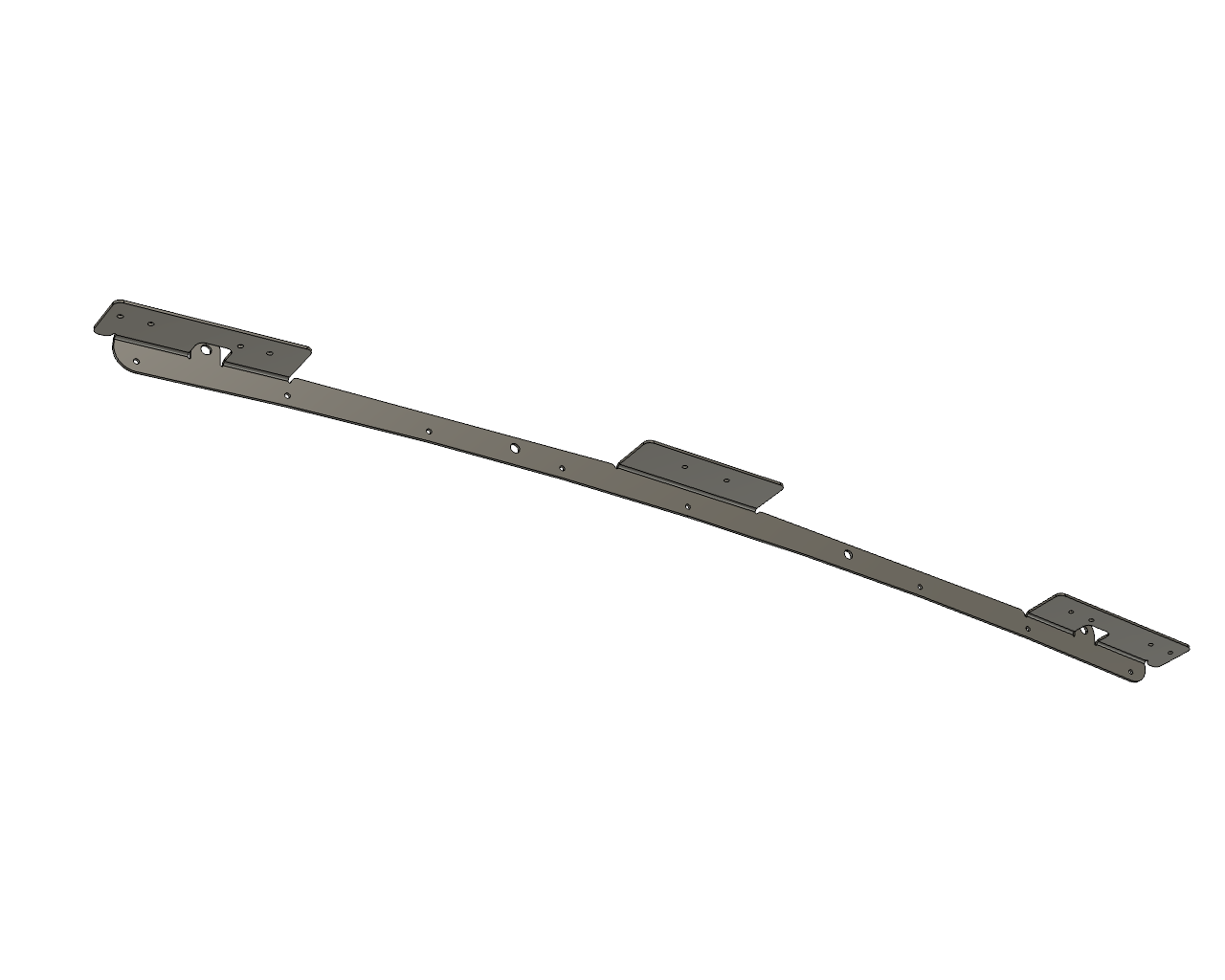

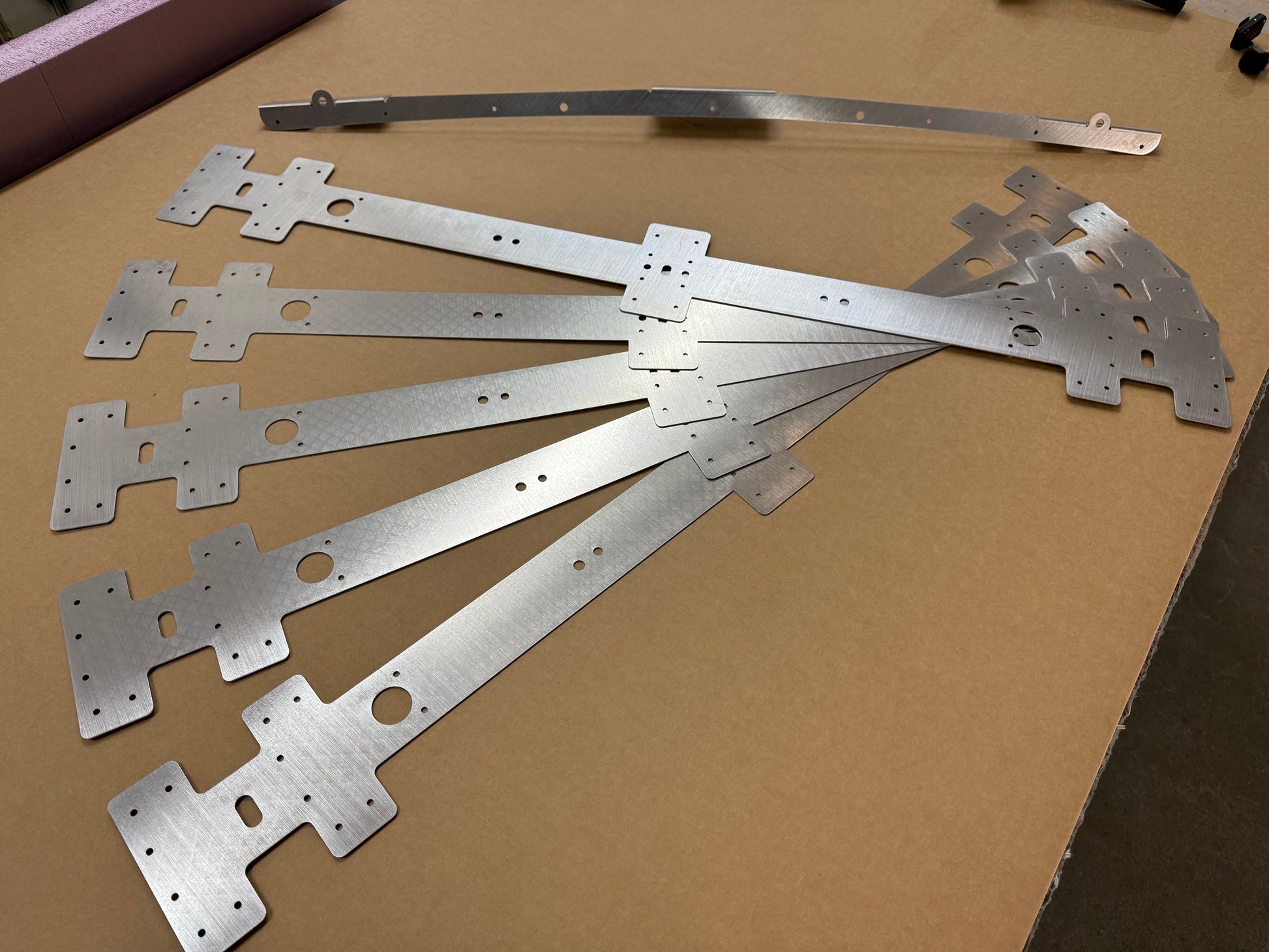

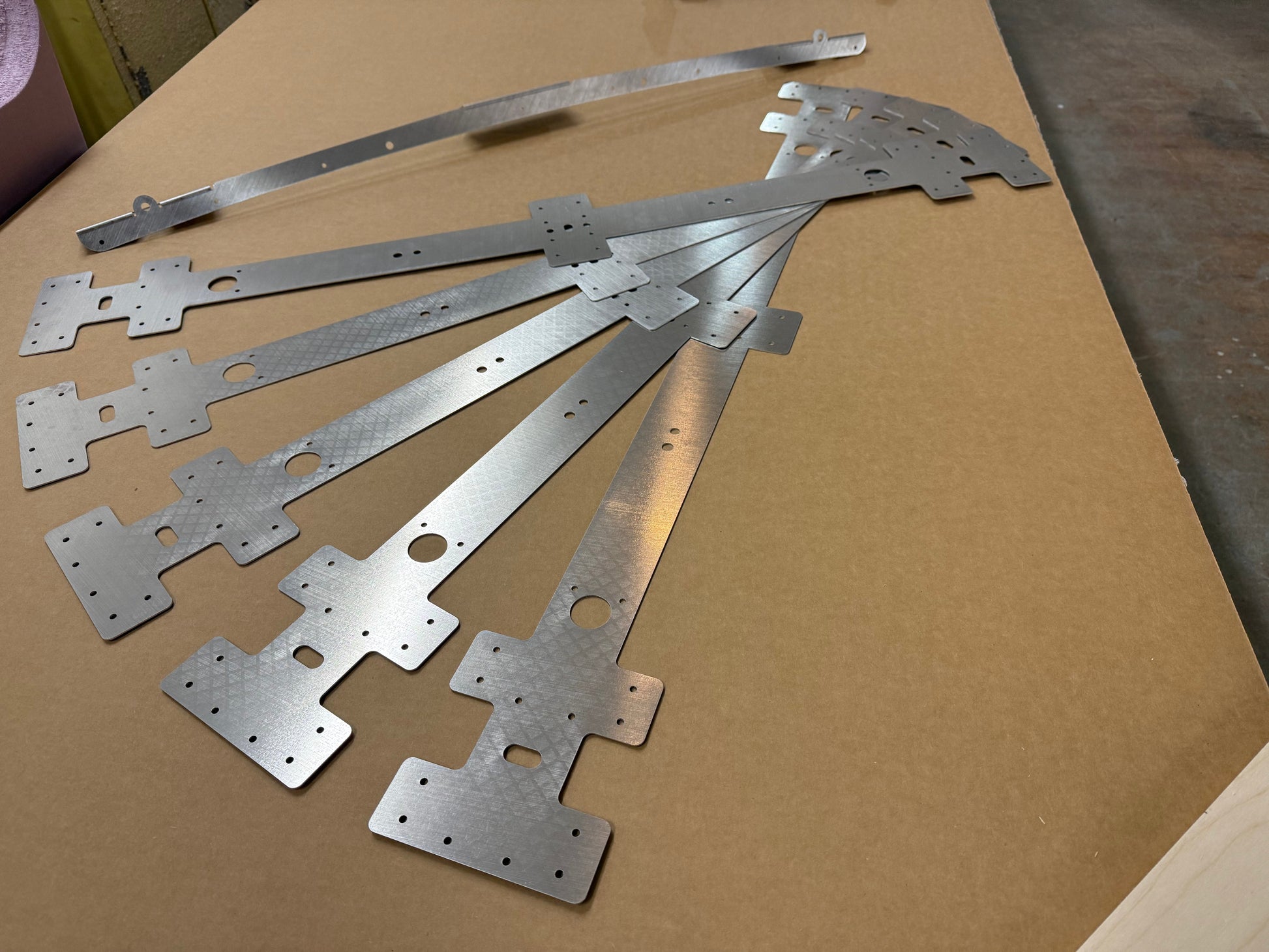

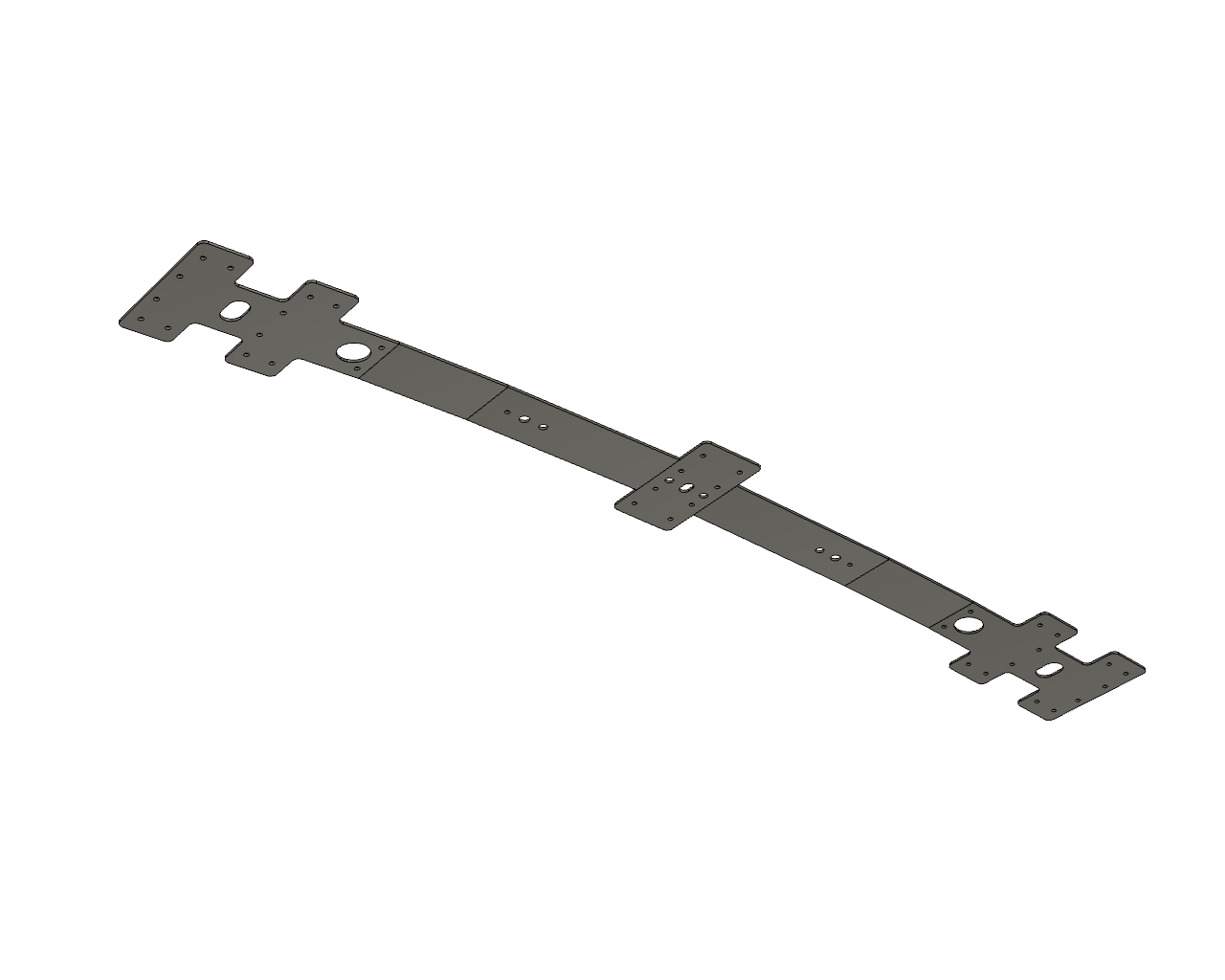

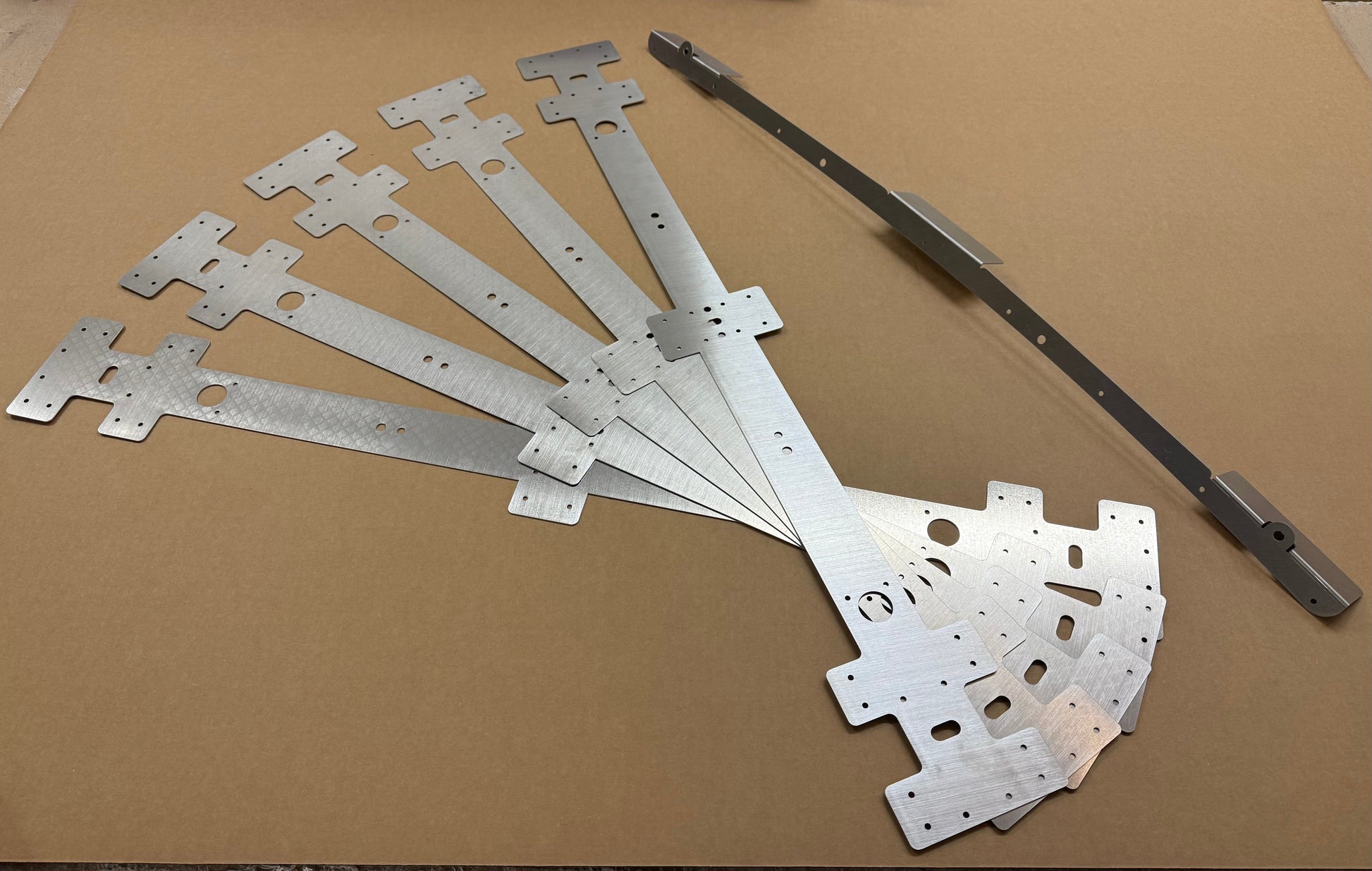

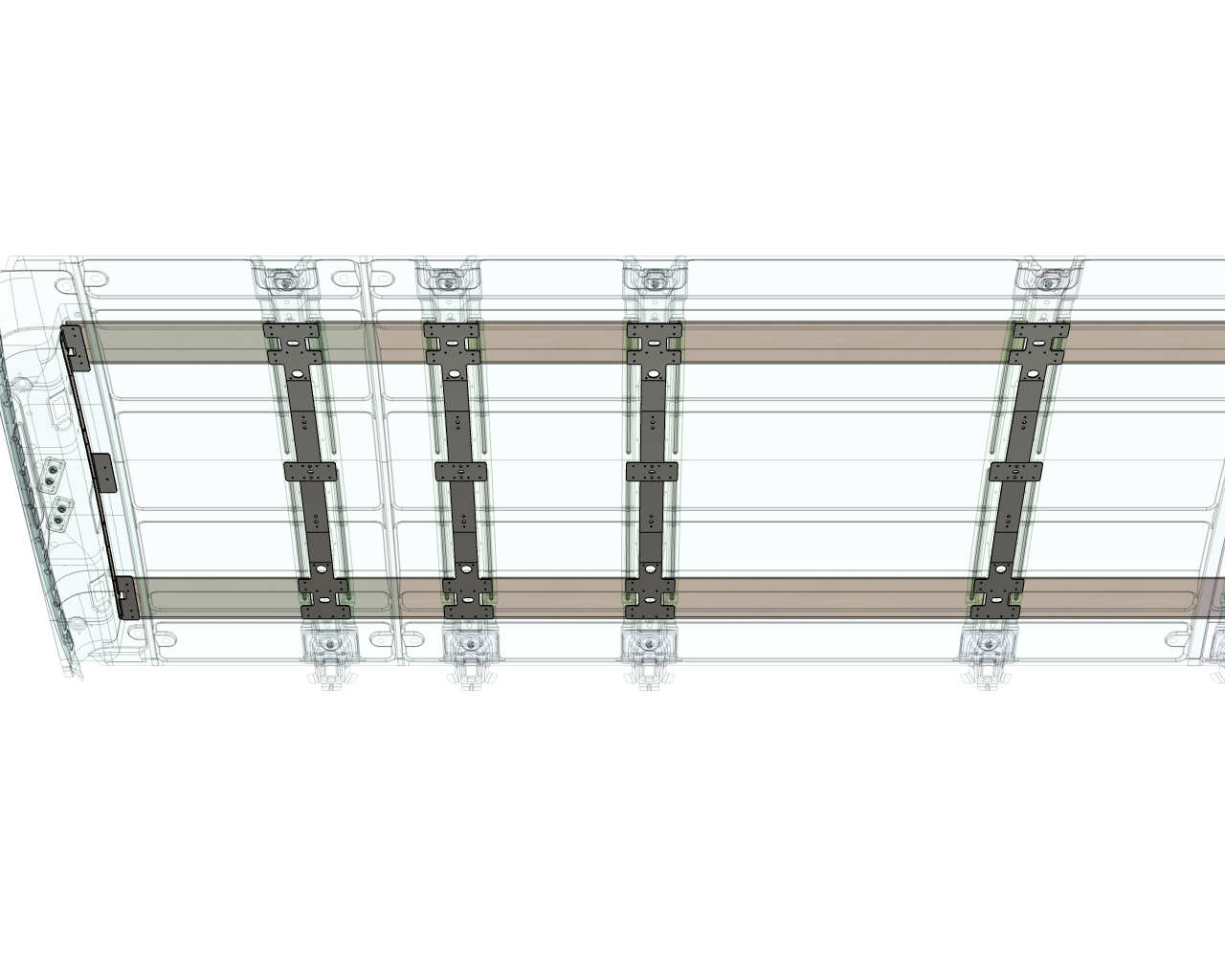

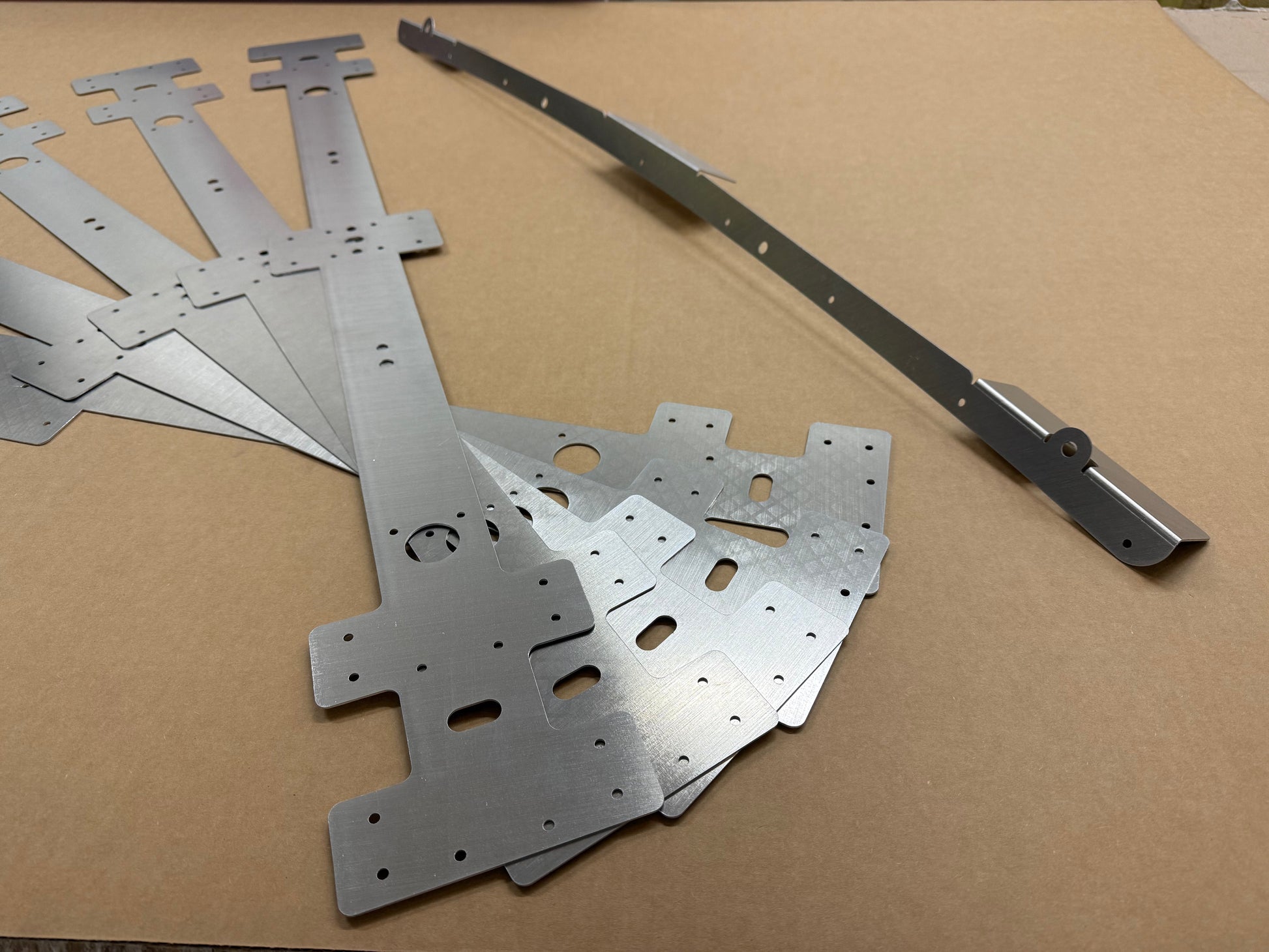

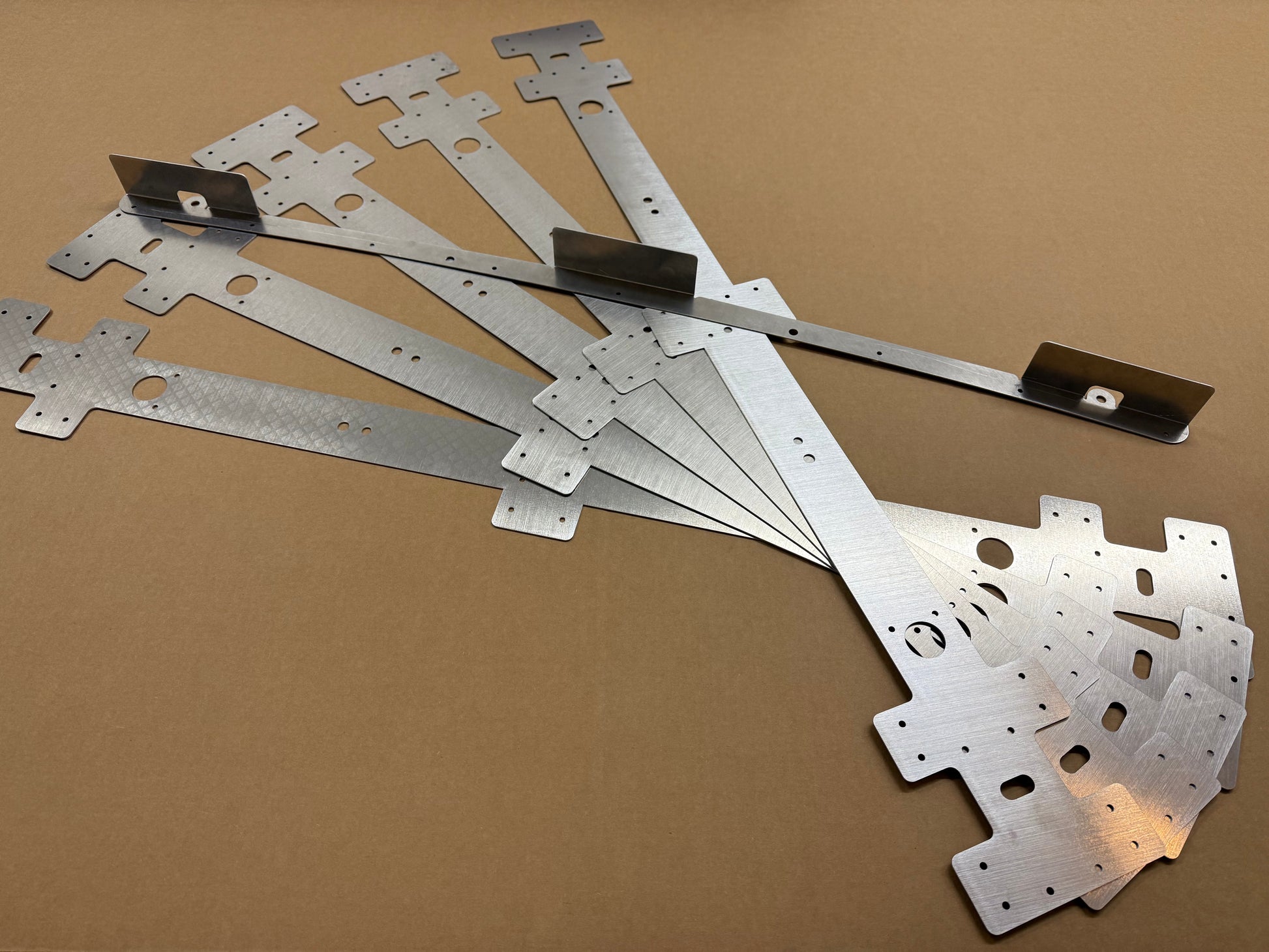

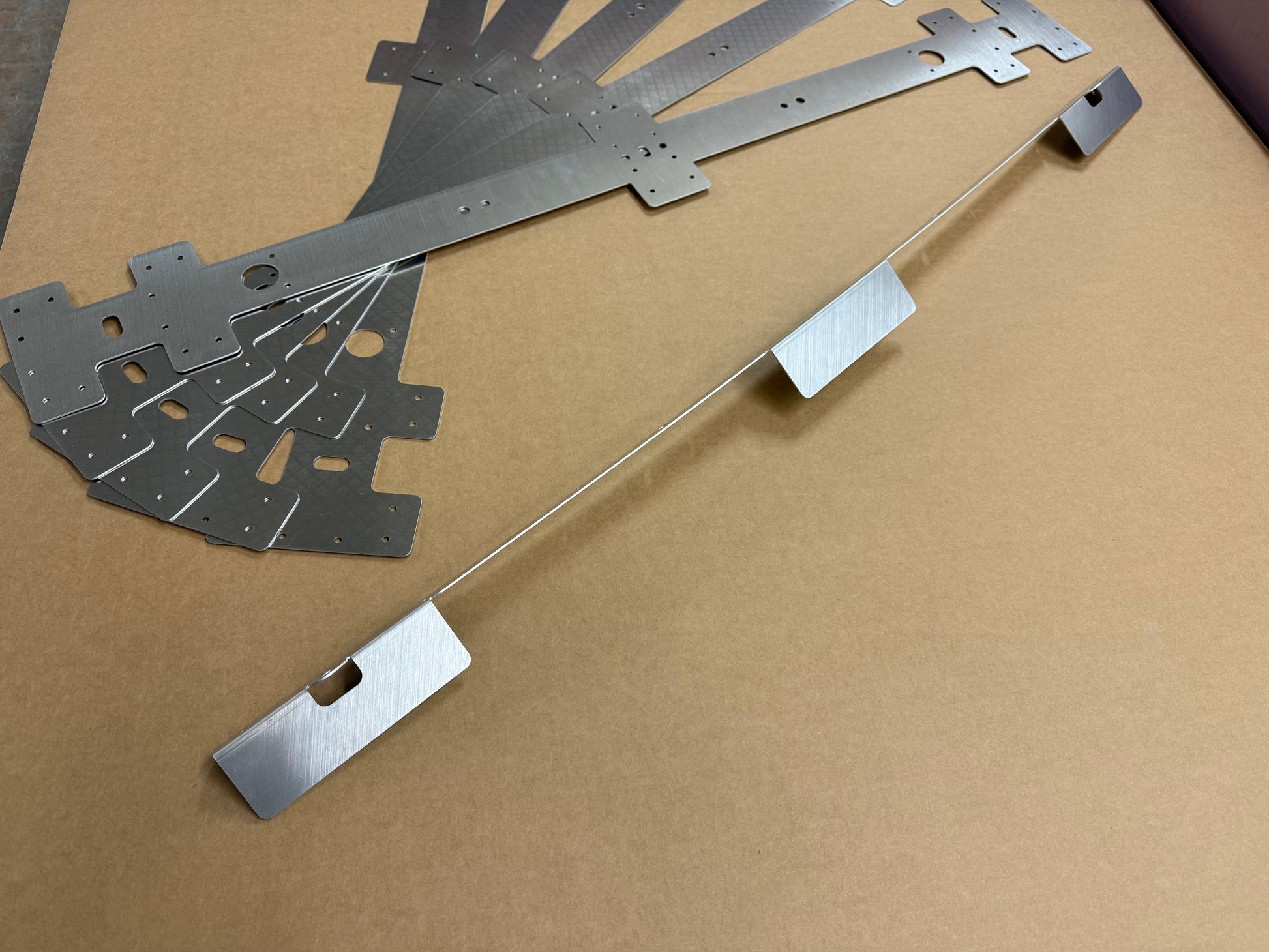

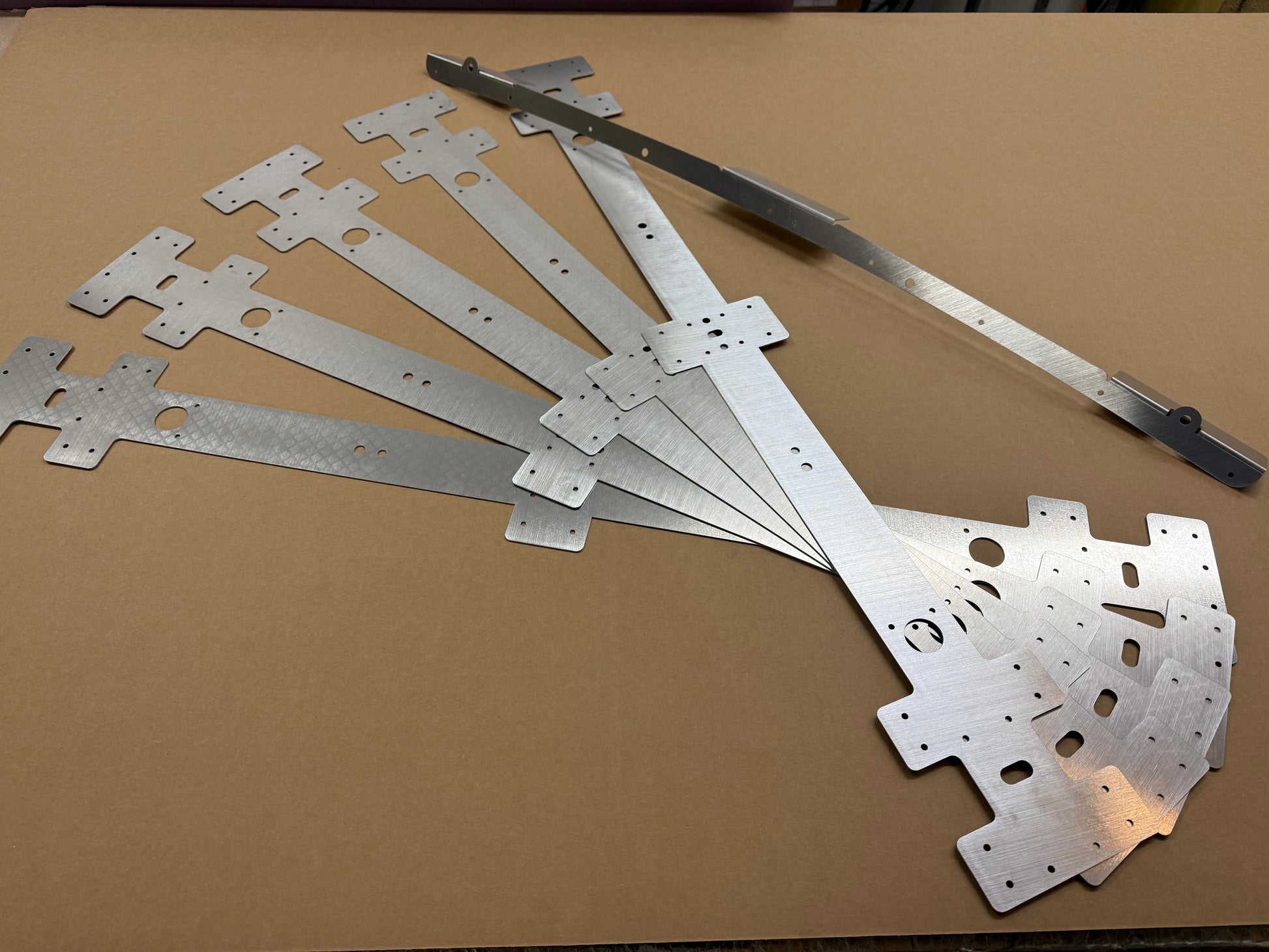

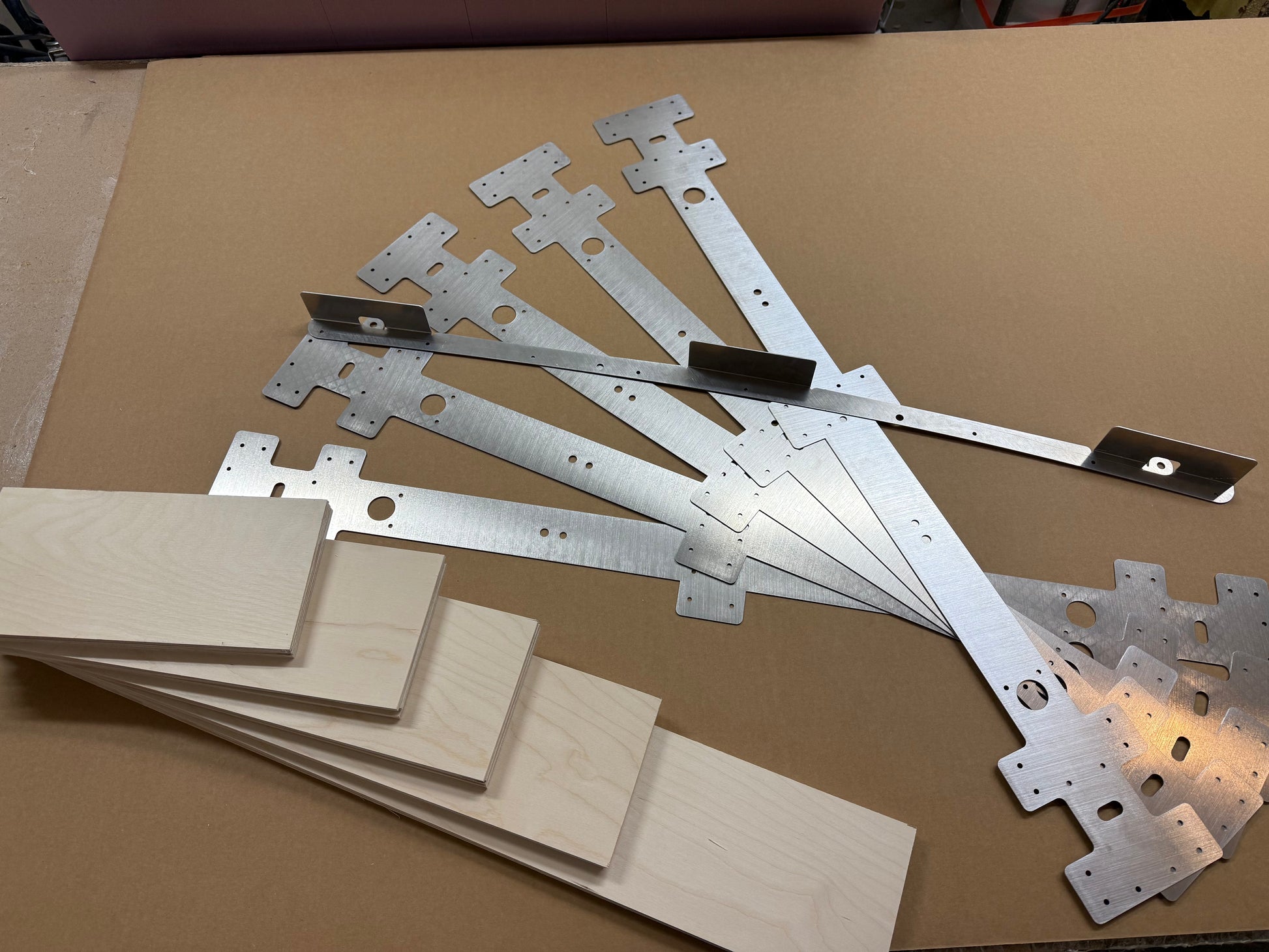

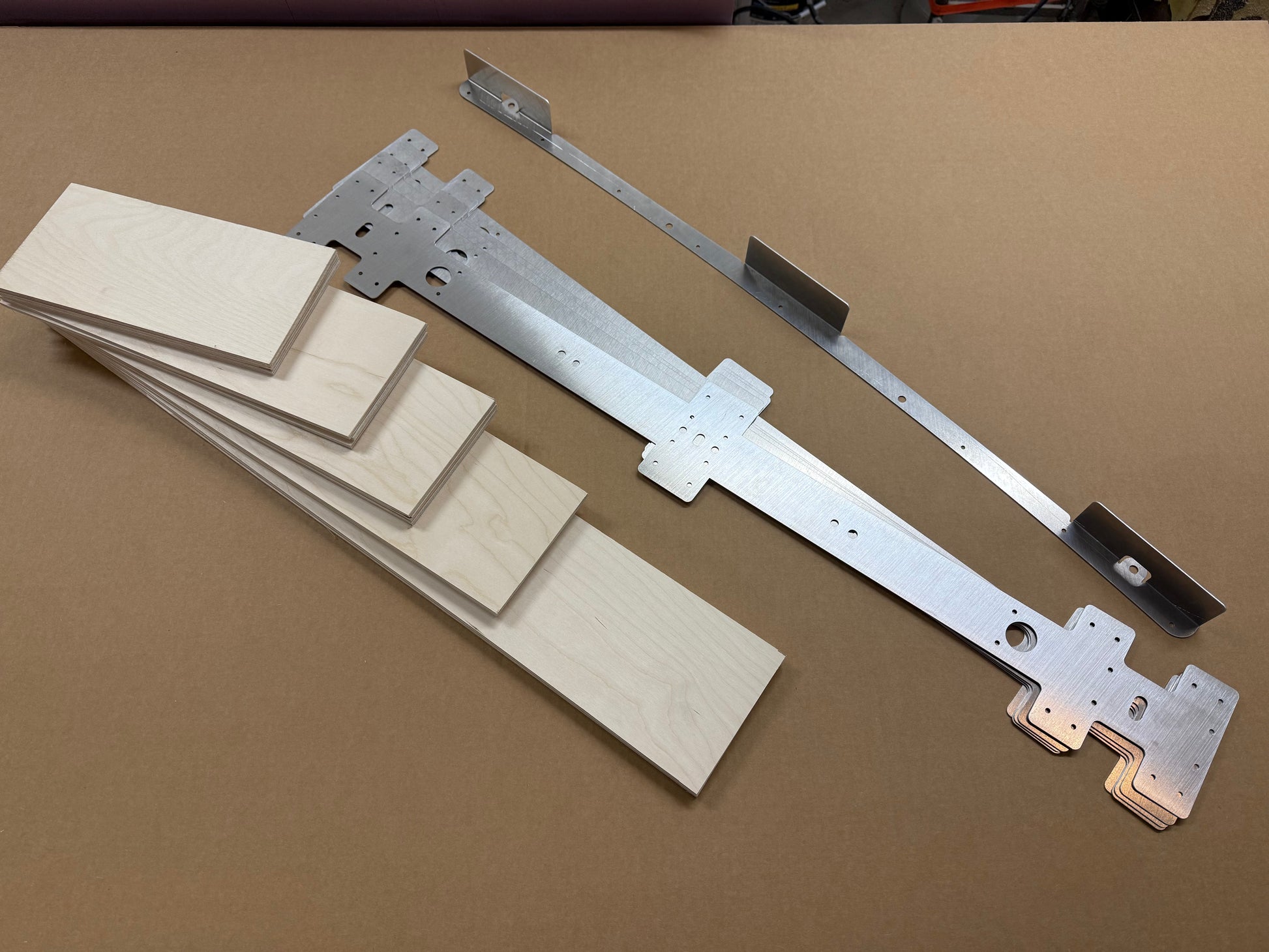

The kit includes a rear trim piece that aligns with factory holes for precise positioning, plus one furring bracket per roof rib (5 for EXT models, 4 for LB models). The brackets accommodate .25" strips—source our optional Baltic birch strips or cut your own material to specification.

Note: Thicker material may require end mitring or measurement adjustments for proper fit.

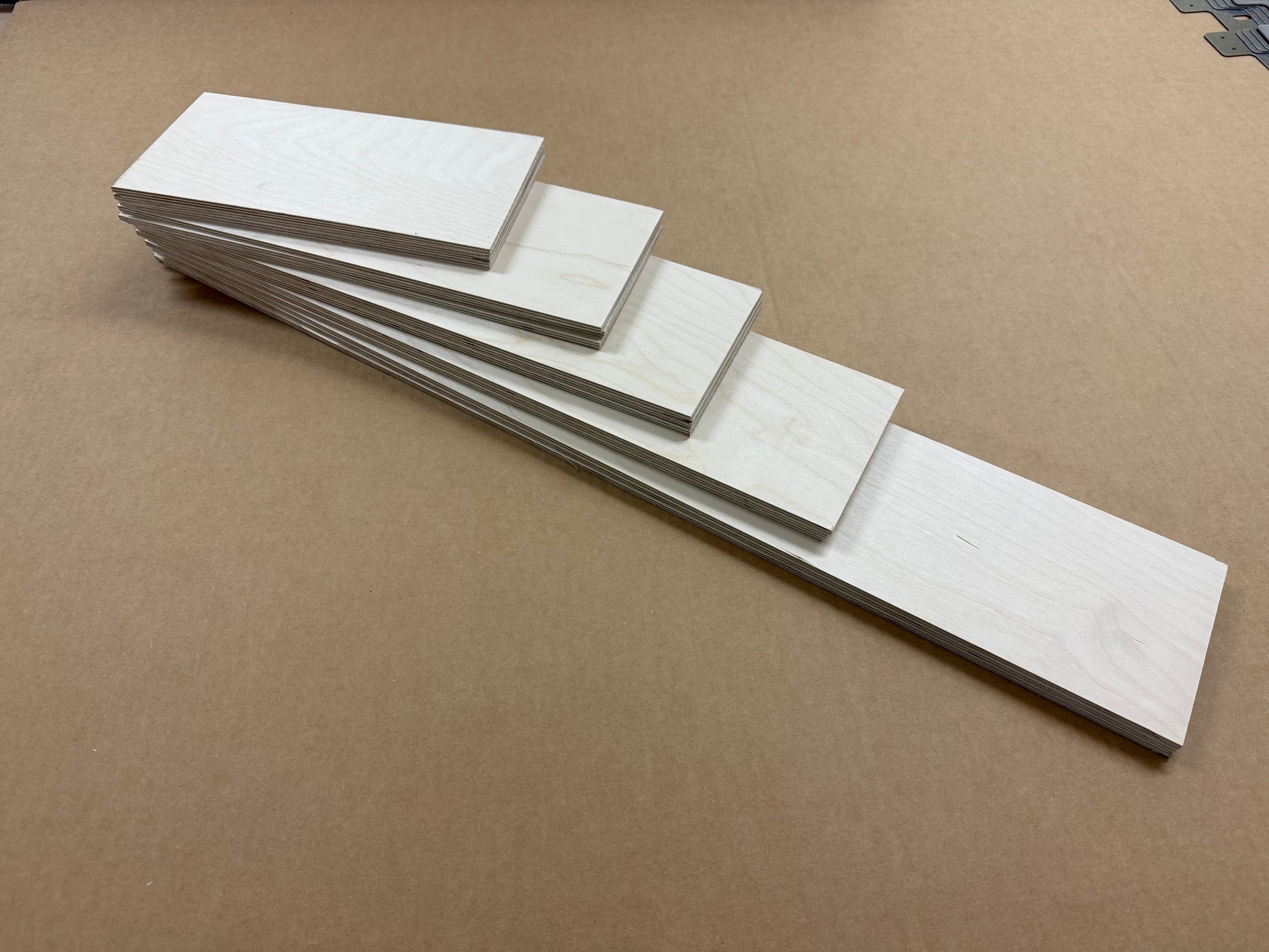

Cut list: 6" wide for all strips. 3 of each length noted below.

EXT: 26, 36, 17.25, 13, 21

LB: 26, 36, 17.25, 9

See our installation video HERE
