Aero Overhead Van Cabinet | Rounded

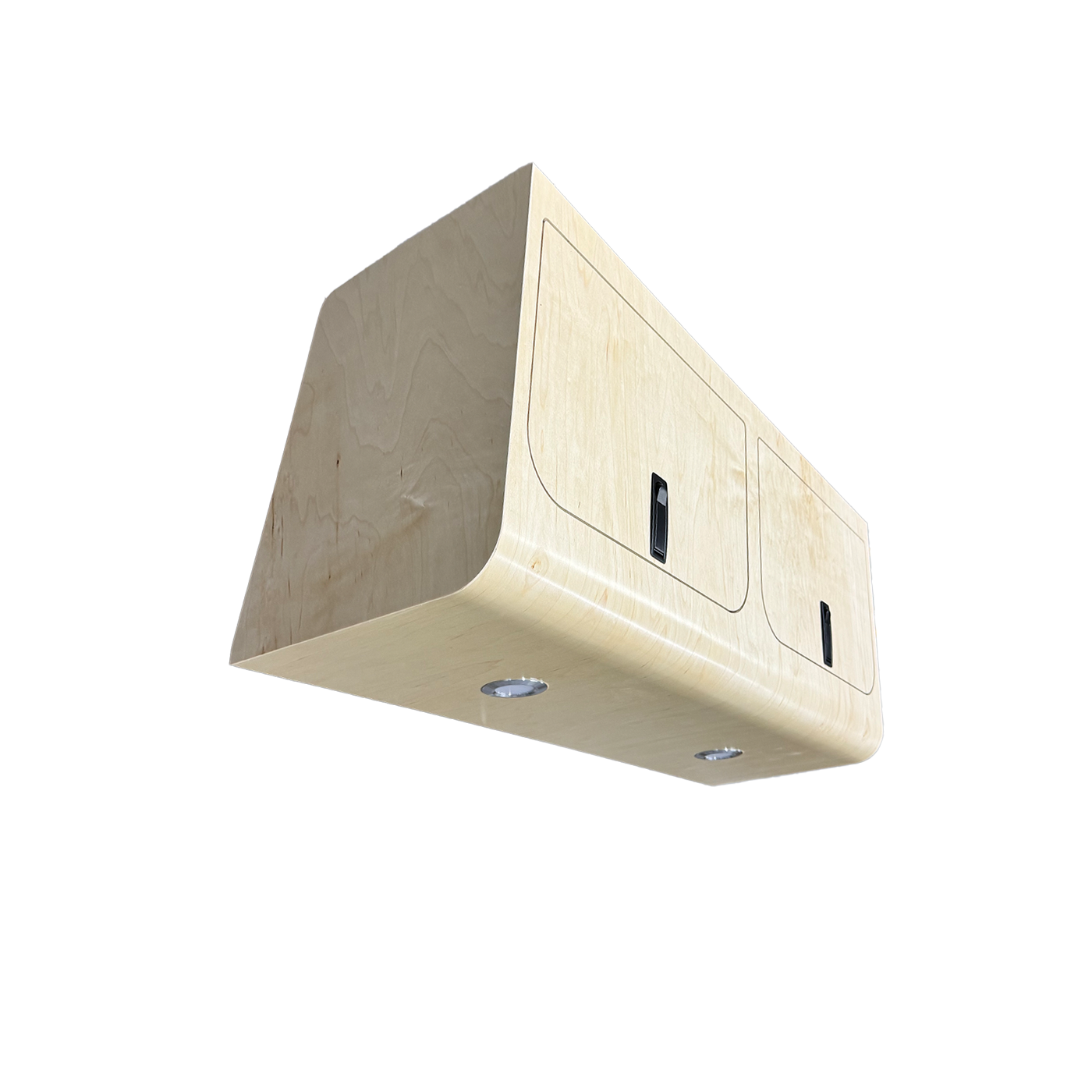

Get the most of your space with our sleek Aero Rounded Overhead Campervan Cabinets. Tailored to fit your Mercedes Sprinter, Ram Promaster, or Transit camper van conversion seamlessly, these overhead van cabinets are the perfect blend of form and function. Crafted with precision, they are hand-made to ensure durability and functionality. When outfitting your camper van conversion, there's no better choice than Serg Supply's Overhead Cabinets. These cabinets are designed to mount directly to the walls of your van using factory holes, making installation simple for DIY and professional van builders.

Our commitment to quality craftsmanship, tailored design, and versatility sets us apart. Each van cabinet is a testament to our dedication to creating a product that not only adds a touch of elegance to your van but also offers exceptional functionality. With spacious access, secure closures, and a modern aesthetic, our van cabinetry is tailored for convenience, safety, and style. We understand the unique needs of the van life community, so our cabinets are designed to fit seamlessly in your van and can be easily customized to match your vehicle's make and model. Plus, our robust construction ensures that these cabinets can withstand the rigors of the road. At Serg Supply, we're not just selling van cabinets; we're offering an elevated van life experience.

In Serg's van cabinetry lineup, we also have square overhead cabinets if you don't like the rounded look.

Features

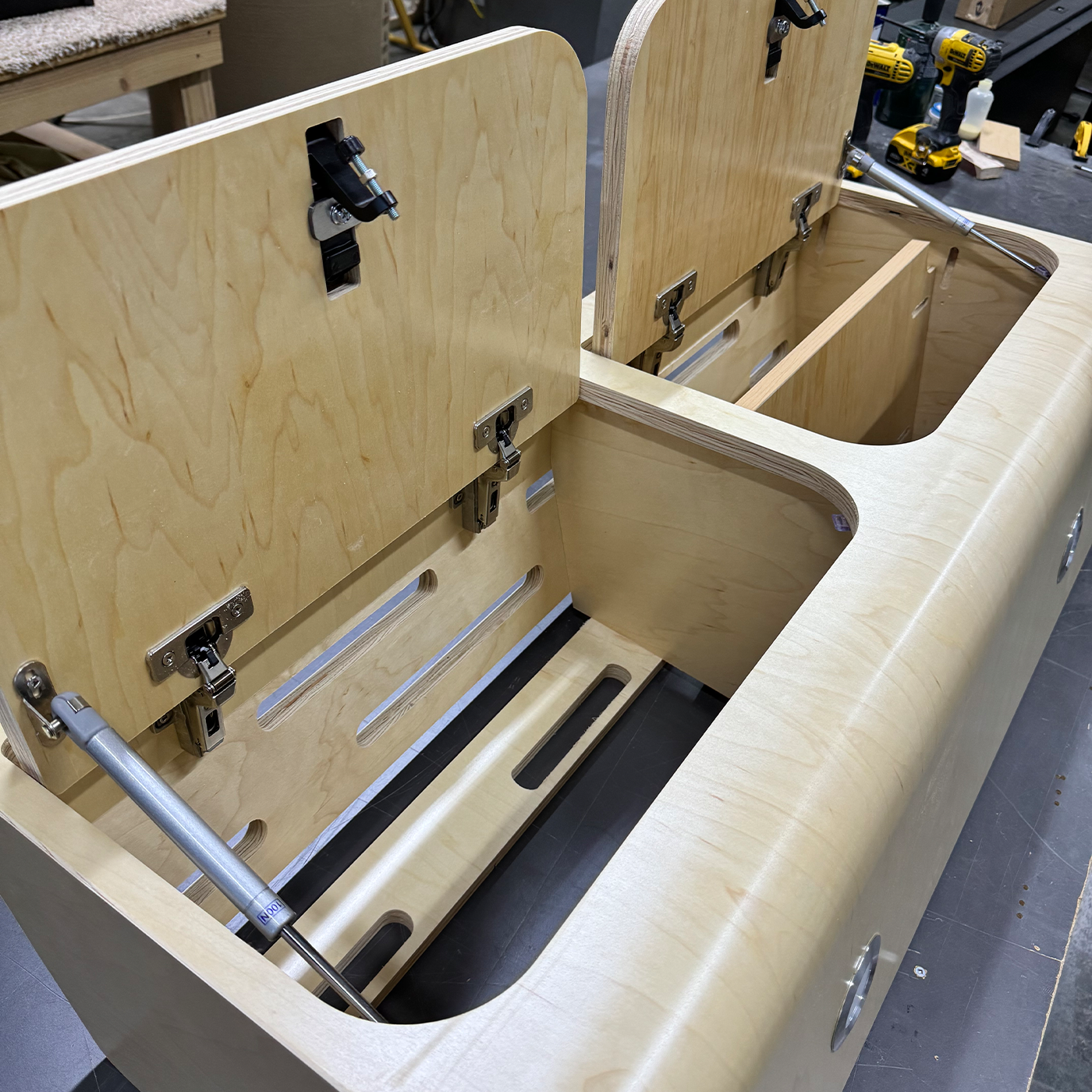

• Spacious Access: Our Rounded Overhead Van Cabinets feature large doors, providing convenient and easy access to your stored items, making your van life even more comfortable.
• Elegance in Design: These paint-grade cabinets boast a sleek, modern look with solid continuous sections and grain-matched doors, adding a touch of style to your van conversion. A slight angle amplifies available space in your build and reduces the risk of bumping into your overhead cabinetry.

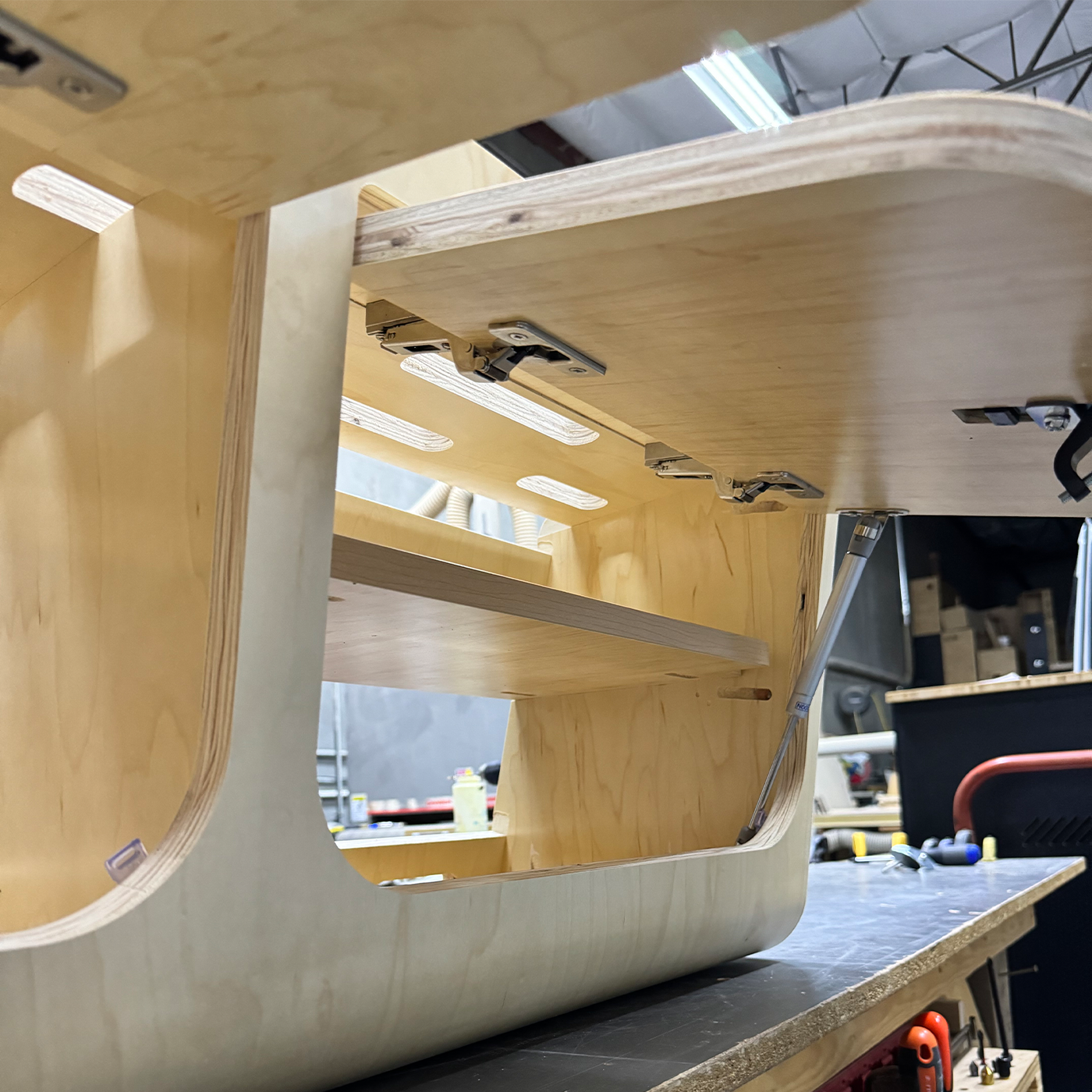

• Secure Closure: Our cabinets, equipped with black-coated compression latches, ensure a secure closure, keeping your belongings safe and sound throughout your van life adventures.
• Contemporary Aesthetic: With a 1.5" curved edge, our cabinets offer a modern and stylish appearance, enhancing the overall aesthetics of your van.
• Versatile Mounting: These cabinets are designed for convenience and can be easily mounted on walls, ceiling panels, headliners, or directly onto the overhead frame (Rivet Nuts Recommended).
• Tailored Fit: The cabinets' back curves are precisely cut to match your specific vehicle make and model, ensuring a perfect and customized fit.
• Lighting Options: The lights are not pre-wired to the ballast. You must wire them to your ballast and central power system to illuminate your storage space efficiently.
• Robust Build: Our cabinets are engineered with robust construction, capable of holding heavy cargo without risk of breaking. However, please note that they are rated for at most 100 lbs of storage per cabinet.

Specifications

• Materials: Prefinished Maple
• Length: 40" - 44" (Can be mounted side by side to cover the full length of any vehicle)
• Depth: 10.7" Upper Depth, 12.5" Lower Depth
• Height: 15.5" Height
• Weight: Approx. 38lbs per 40" section
• Load Capacity: 100lbs per 20" section

Please refer to our specs page to see more images and dimensions: Spec Sheet

Please refer to our materials page here to see images and details of each option: Materials

DIY Installation

Installation Difficulty: Medium | 2 people
Installation Time: 1 Hour
Tools Needed: Power Drill, Rivet Nut Tool, Screw Driver, Drill Bits

FAQs

Will these cabinets perfectly fit my vehicle?

All overhead cabinets have a curved backing and curved top to fit the vehicle's factory curvature. While this will fit most wall paneling/ceiling setups, minor modifications may be required to install these cabinets with builds utilizing furring strips. It is strongly recommended that this cabinet is mounted using rivet nuts as specified by our INSTALLATION GUIDE

What are the differences in material choice for upper cabinetry?

All upper cabinetry materials are made from the same paint-grade plywood used in custom kitchen builds and are designed to withstand years of daily use. The Prefinished Maple is a semigloss finish. It does not take stains or seals. It takes very well to paint. No finish work is needed - it is already sealed and protected. This is lightweight and durable.

How do I paint my cabinet?

First you will lightly scuff the entire cabinet surface you plan to coat with 120-180 grit sandpaper. Then you will apply 2-3 coats of primer before applying your main coat. Always apply a finish when you're happy with the paint for a long-lasting appearance.

Is the wood color consistent across orders?

A lumber pattern is not guaranteed. Raw lumber varies in tint, shade, and grain. Minor defects in the veneer also occur occasionally, and we make a great effort not to use lumber with serious flaws. The ends are made from natural wood, not veneer. For this reason, you may see small gaps (~0.075") at the ends and centers of your cabinet sections. These may be filled with putty, painted over, or ignored.

Resources

Here is a list of resources to help you. If you have any other questions please reach out to us directly.

• Please refer to our specs page to see more images and dimensions: Spec Sheet
• Please refer to our materials page here to see images and details of each option: Materials
• Please refer to our installation guides page for detailed instructions: Installation Guide

Video Title: How To Choose Cabinets For Your Van Conversion
