Volthium

12V 400Ah Battery

12V 400Ah Battery

Regular price $2,360.00 USD
Regular price Sale price $2,360.00 USD
Sale Sold out
Shipping calculated at checkout.
Options

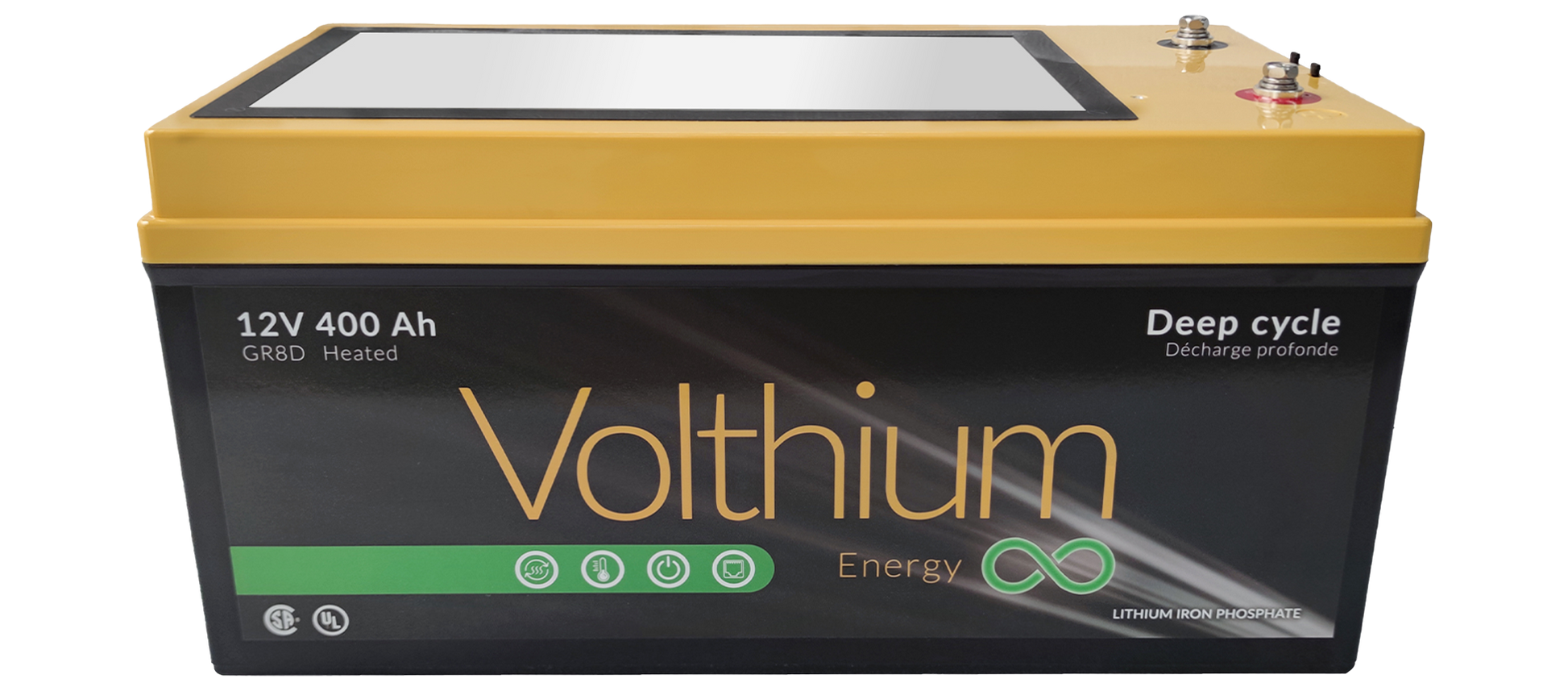

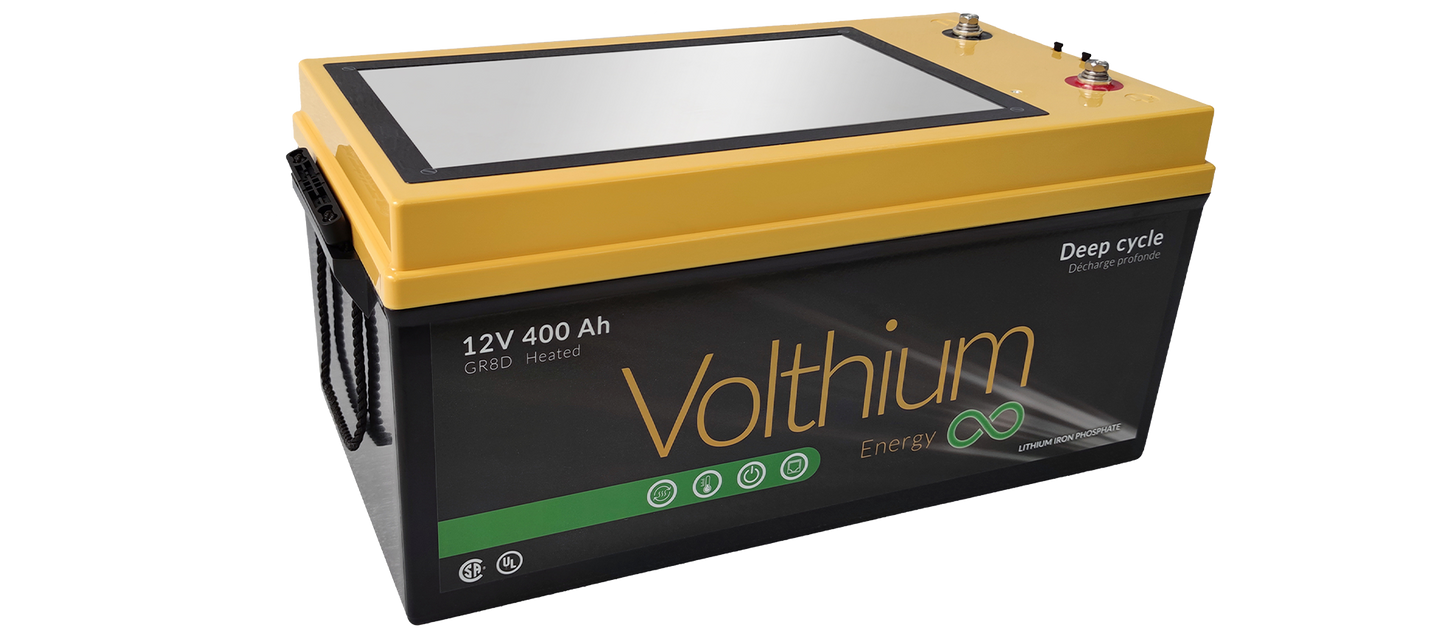

This 12 V400 Ah LiFePO4 battery in ABS in 8D format is manufactured specifically for boat, sailboat, motor vehicle and industrial customers.

The 12 V 400 Ah Volthium Batteries, with or without an integrated self-heating system, meet ABYC standards, including clause E-13, relating to communication.

In order to comply with ABYC requirements (e.g. Standard E-13), this battery has an exclusive Volthium housing offering 2 RJ45 ( Ethernet) communication ports allowing the transmission of internal data from the battery to the monitoring systems. By adding our Smart Bridge to their system, the user can access the dedicated Volthium app allowing them to access, via Bluetooth, all relevant data from their battery.

The user can also set up audible and/or visual alerts to be notified before the batteries are automatically switched off. The user will be able to set an alert for a specific %SOC, of their choice, in addition to determining a warning alert for high temperature, and low temperature. This feature is available on several Volthium Batteries.

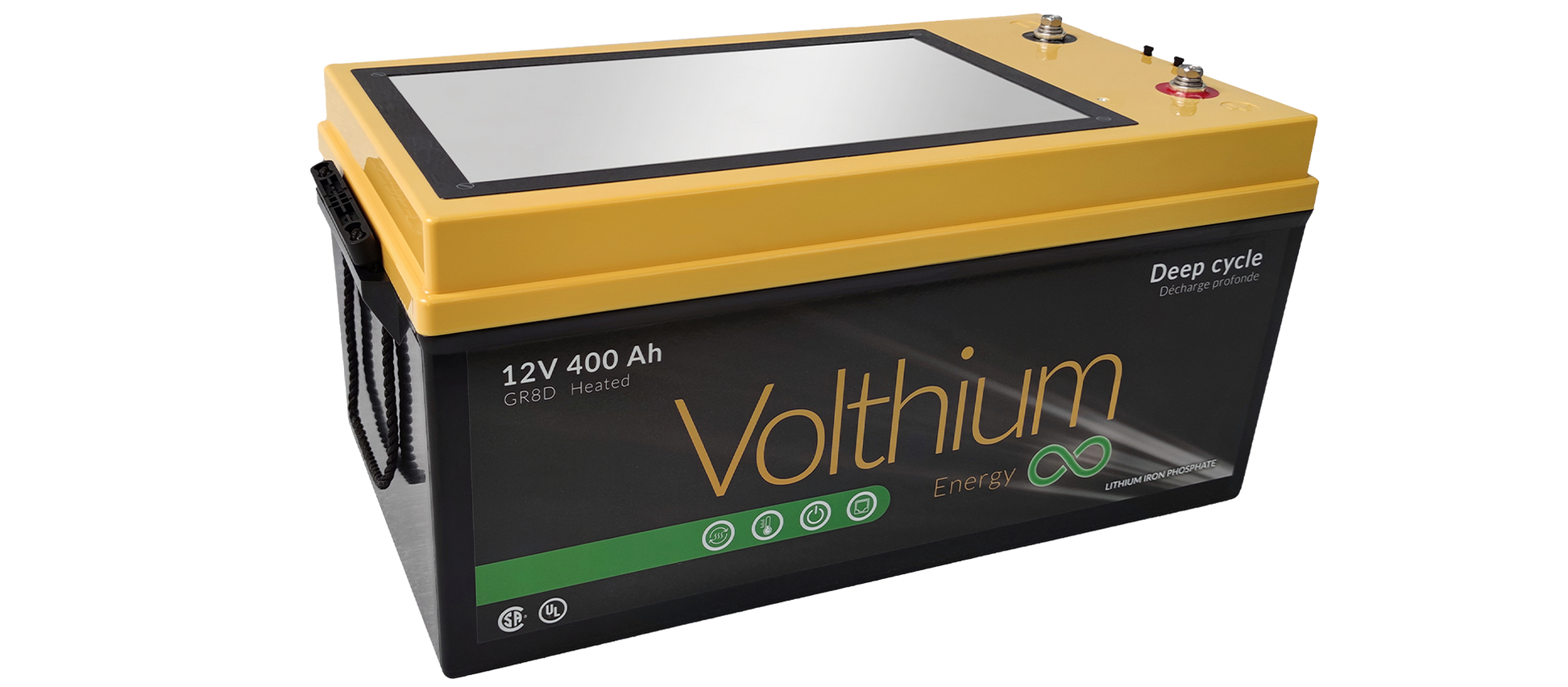

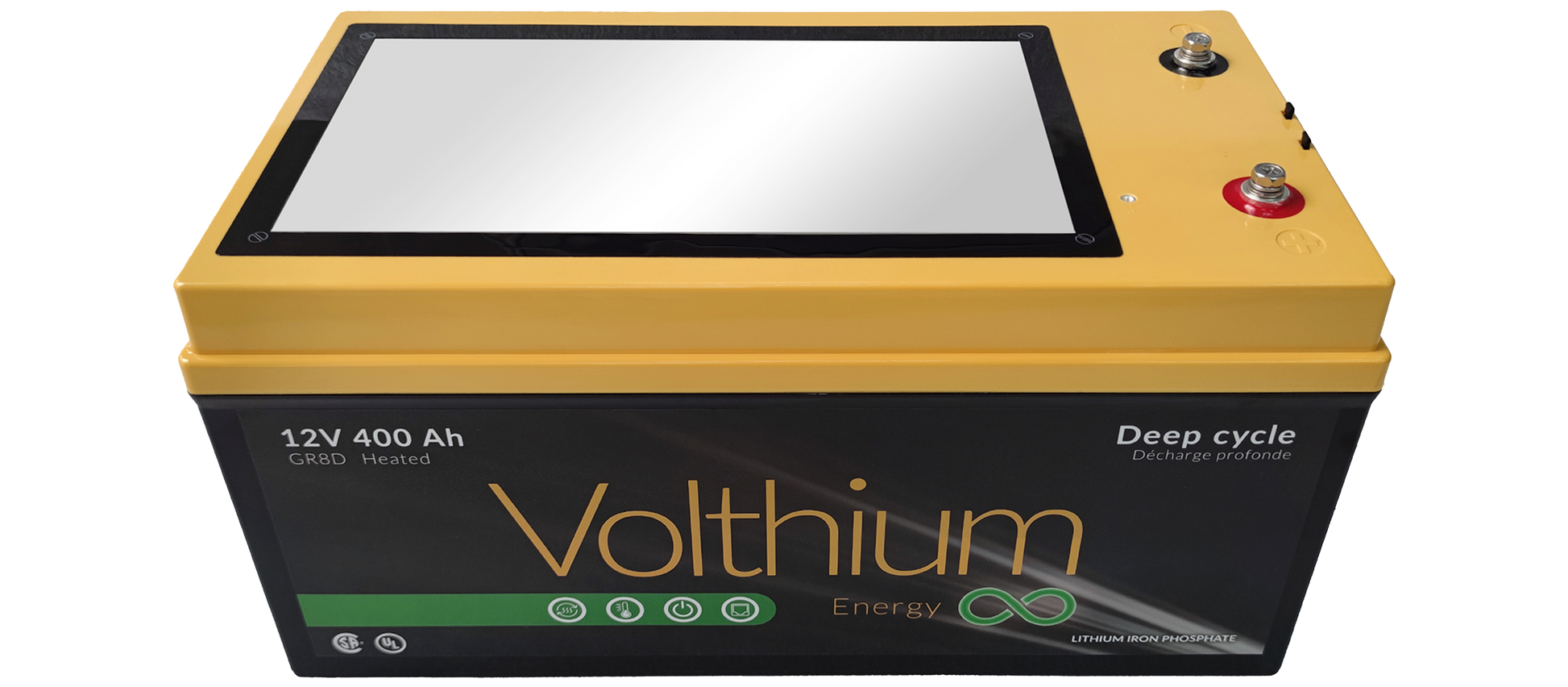

This model is also available in a self-heating version (Dual Technology).

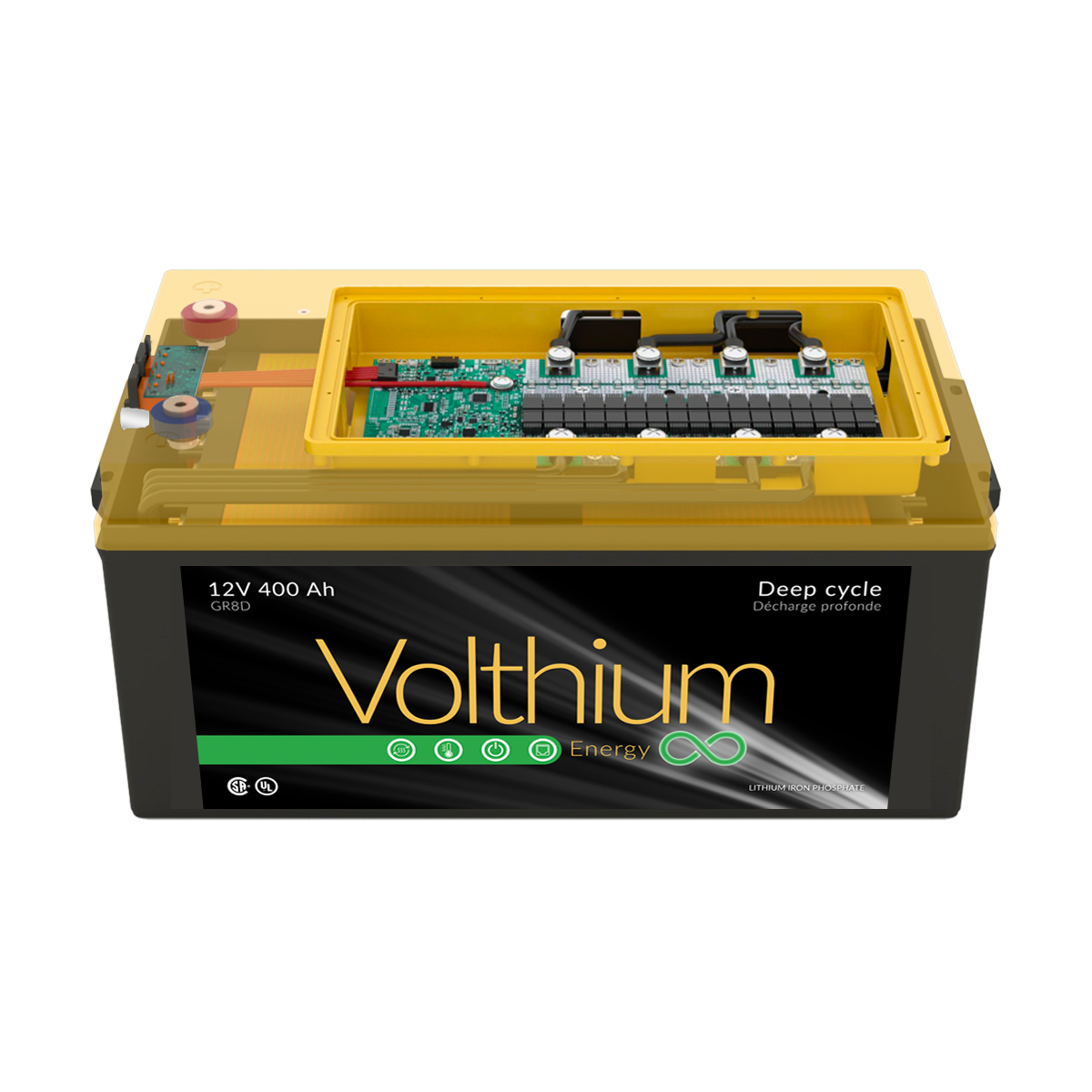

This 12 V 400 Ah batteries, like all Volthium batteries over 100 Ah, have easy and reserved access for the BMS. This access makes it easy to repair if necessary.

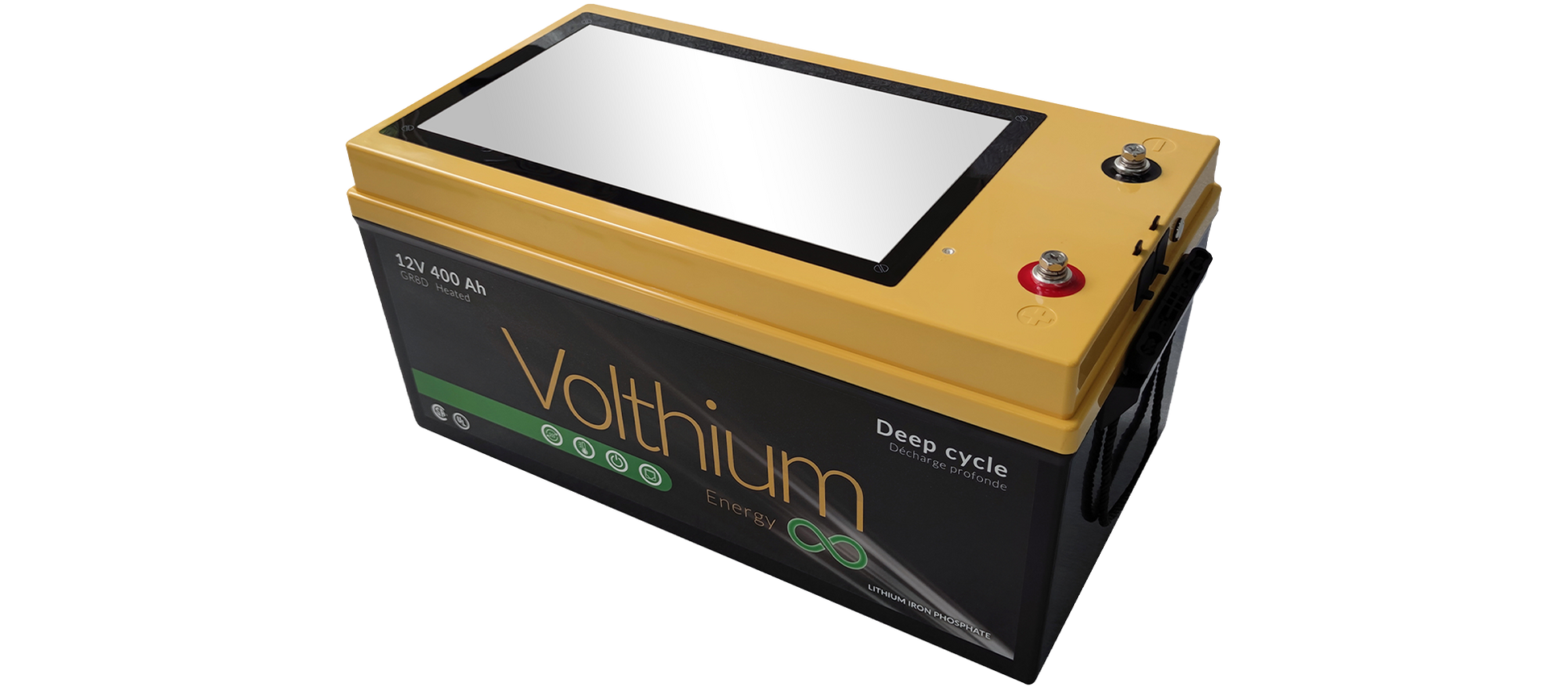

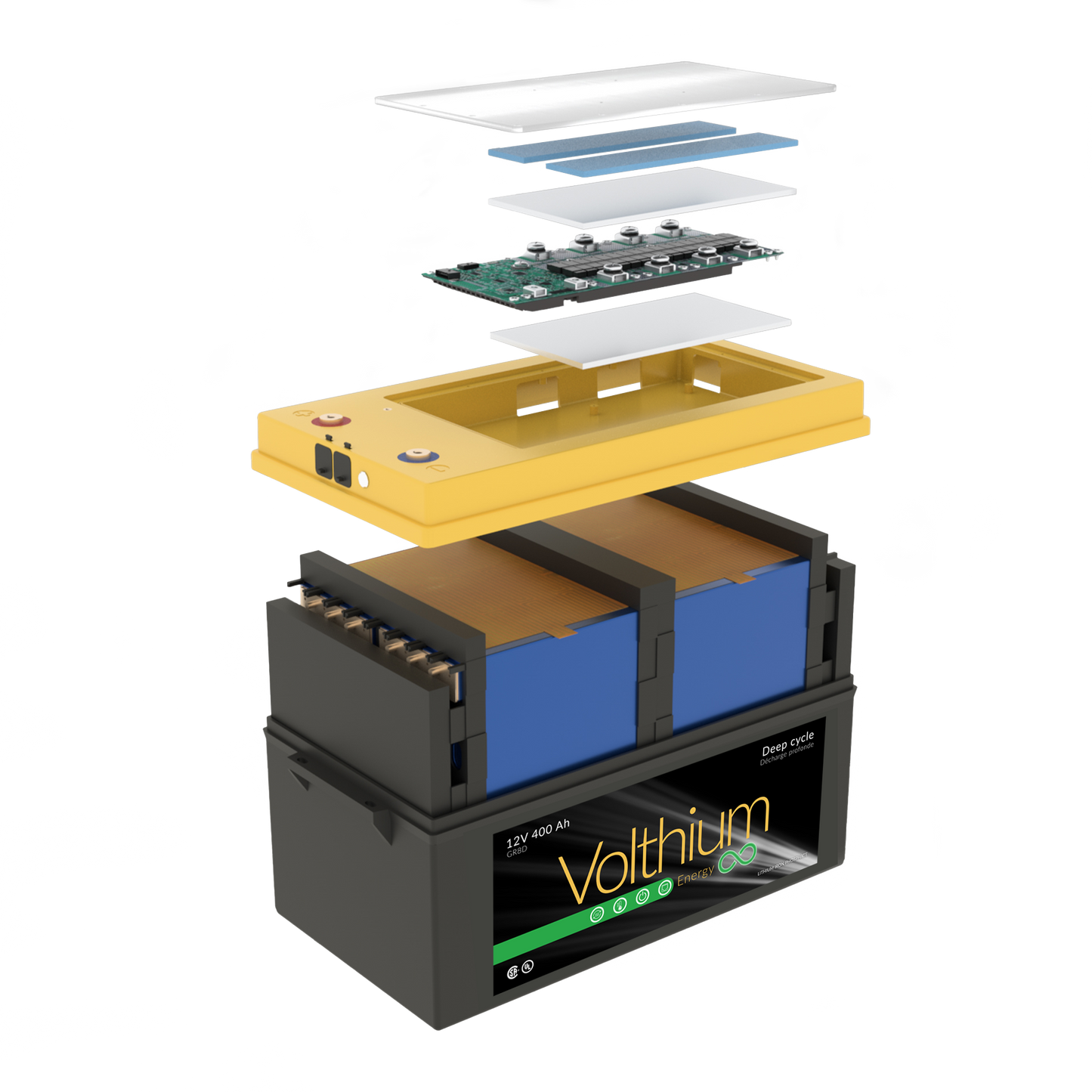

In addition, this lithium battery has a built-in cooling system to draw heat out of the battery via its aluminum conductive plate. The heatsink further increases the range of use in terms of temperature, while promoting better efficiency in the integrated BMS. This cooling system extends the life of the cells by limiting the transmission of heat to them. It also increases the usable temperature range of these batteries.

This new generation of batteries is also equipped with a stainless steel on/off button, allowing you to deactivate discharge, while allowing recharging. Extremely convenient when you want to leave batteries plugged into the solar system during storage, while eliminating the fear of them being drained by parasitic discharges.

Not only is this LiFePO4 battery vibration-resistant, but it has a higher discharge range than the competition. Indeed, this battery can be discharged down to -25 degrees, instead of -20 degrees for competition. And if you opt for the self-heating version, it can be recharged down to -40 degrees! This innovation is possible thanks to the high quality of the cells used in Volthium batteries (cells from the automotive industry).

10-year warranty , useful life around 15 years and more.

Operation average over 6000 cycles.

Certifications: Complete Assembly: UL1973 & ABYC |

Cells UL1642, UL1973, IEC62619, IEC62660, CSA UL9540A.

BMS:

The core of the BMS is produced by the American company Texas Intrument. This manufacturer of BMS microcontrollers is recognized worldwide in the field of electric automobiles, in addition to being known for its long-standing collaboration with NASA and the U.S. military. The programming and communication protocols are entirely developed by our engineers in Quebec.

Cells:

The quality of the LFP cells is paramount. Indeed, it is what ensures that you have a durable product whose long-term performance will be faithful.

The 24V ABS solar storage batteries are equipped with GRADE A+ prismatic cells, manufactured by Volkswagen Group.

Engineering:

A true pillar, bringing together the strength of each of the parts that make up the product. Our engineering is distinguished by the choice of the best components in each industry, with the aim of obtaining the best final product, scalable to future needs and impossible to compete. The continuous integration of new communication protocols, combined with the custom development implemented for customers, in addition to integrating technologies perfectly adapted to our Canadian environment makes Volthium a benchmark in terms of design quality.
