11-Gallon Toyota Tacoma Wheel Well Water Tank (TOY-11)

11-Gallon Toyota Tacoma Wheel Well Water Tank (TOY-11)

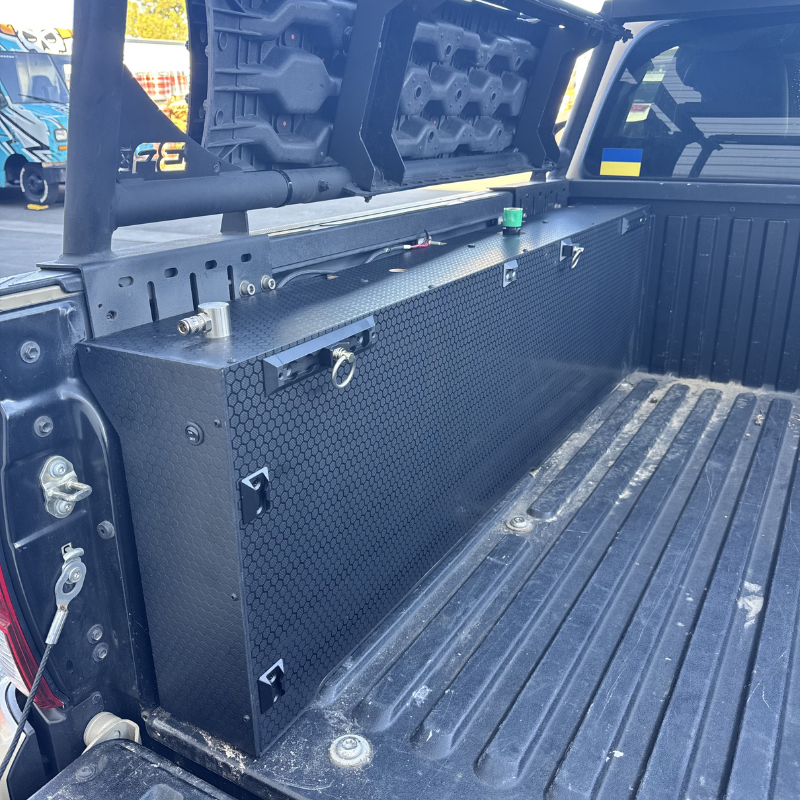

Engineered to maximize space in your Tacoma's truck bed while keeping weight low and centered. This tank contours over the passenger side wheel well for maximum space efficiency and works with most common bed drawer systems and bed stiffener kits, including factory composite beds. Suitable for fresh or grey water applications.

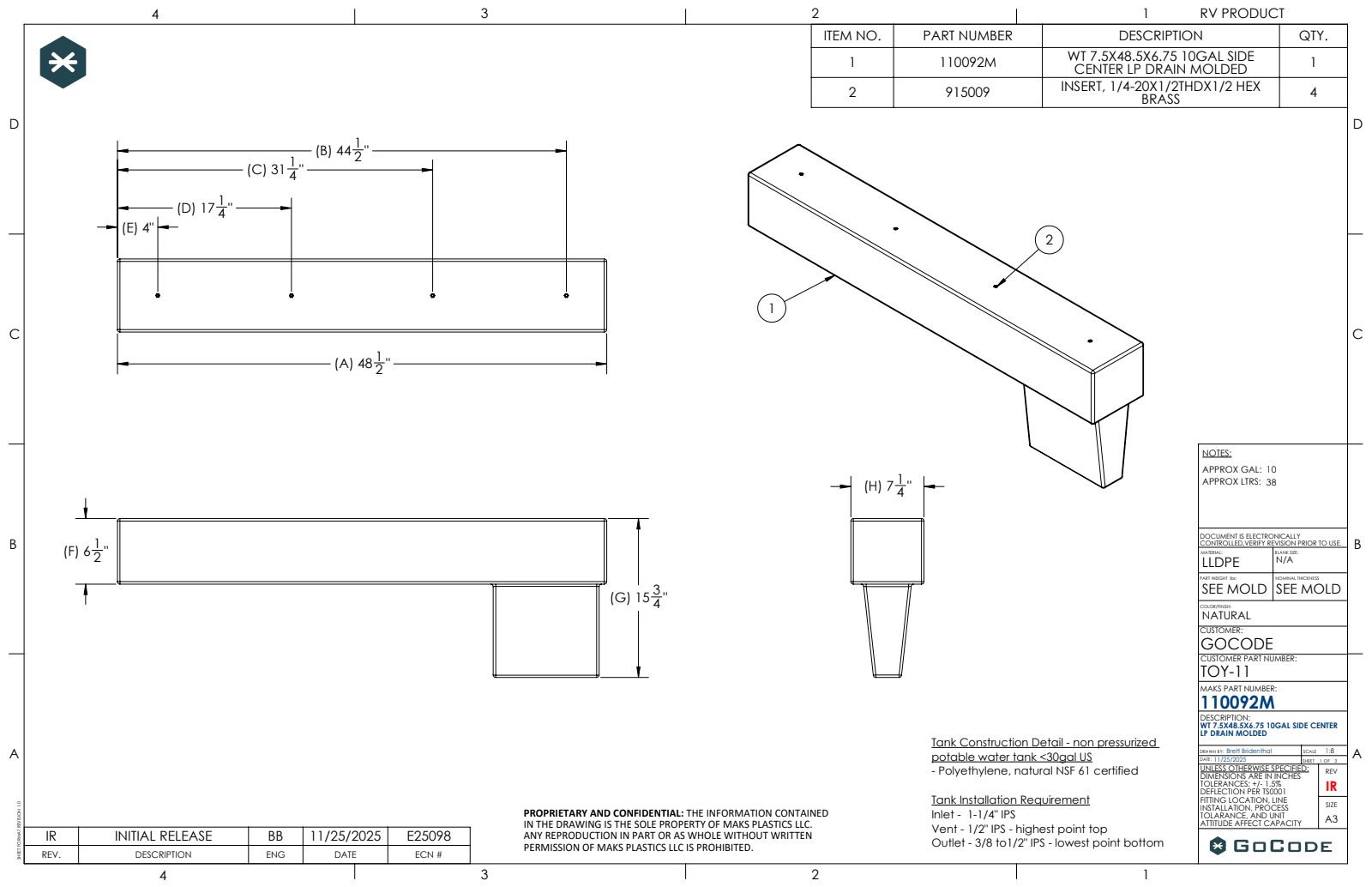

Dimensions & Weight

• Size: 48" long × 7.25" wide × 16" tall
• Capacity: 11 gallons
• Weight: 24 lbs
• Not designed for pressurized systems, must be vented

Ports & Plumbing

• (2) 1.5" NPT ports on the tailgate-facing end
• (2) 1/2" NPT ports on the tailgate-facing end
• (1) 1.5" NPT port on top for fill or level sensor

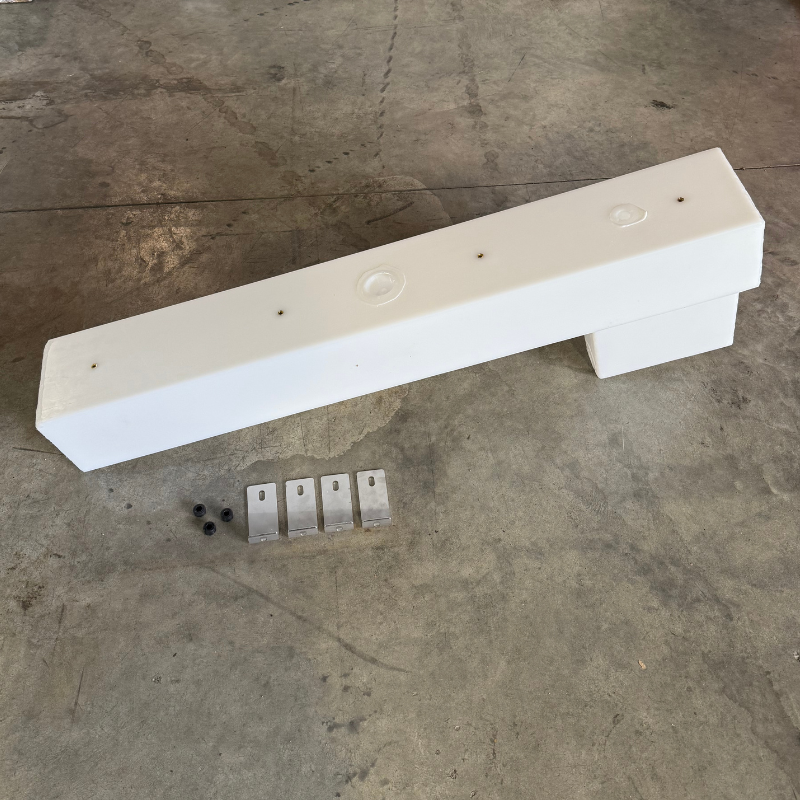

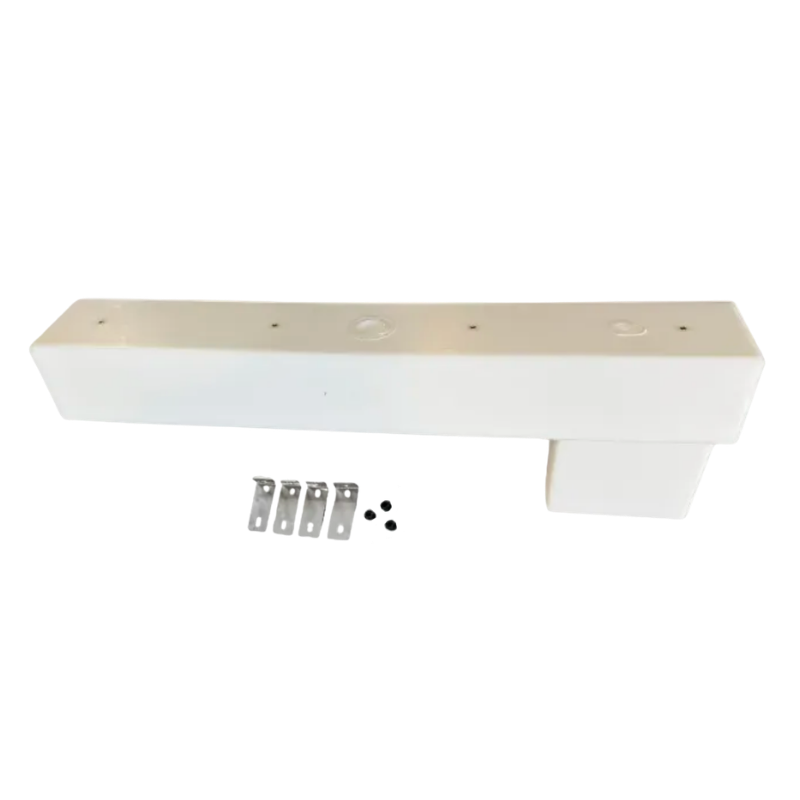

Included With Every Order

• (x4) stainless steel laser-cut brackets
• Stainless 3/8" hardware and 3/8" rivnuts

Materials & Certifications

• BPA-free, food-grade plastic
• IAPMO TS 4 Certified
• Made in the USA
• TEi listed and RVIA approved

Vehicle Compatibility

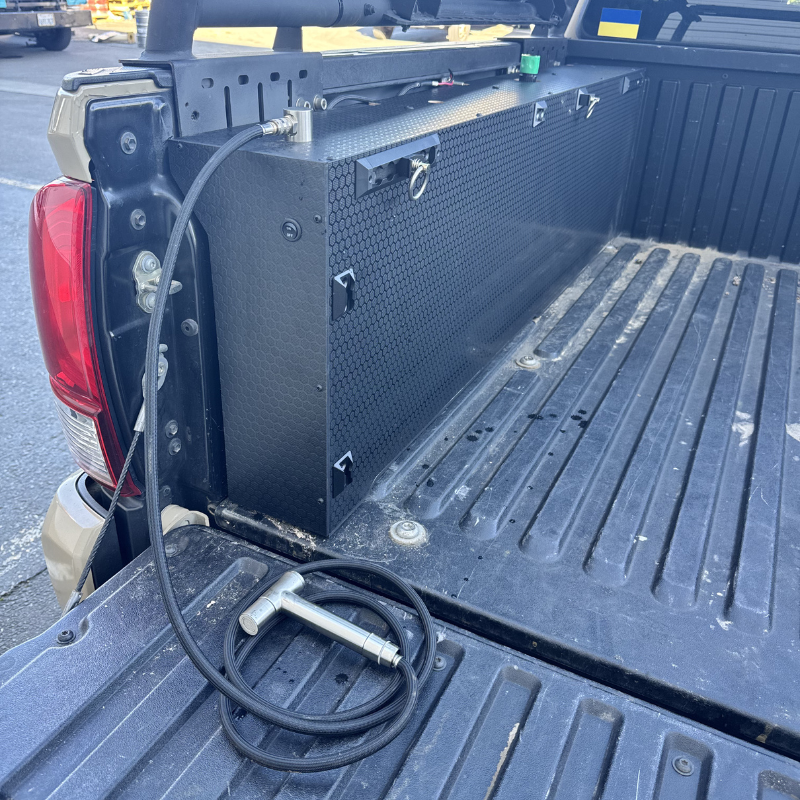

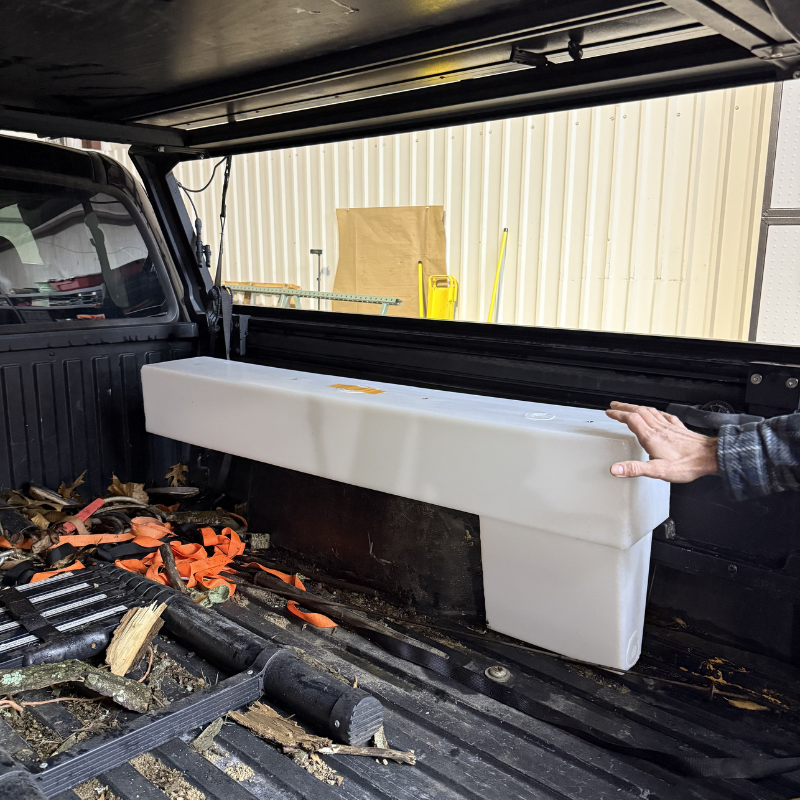

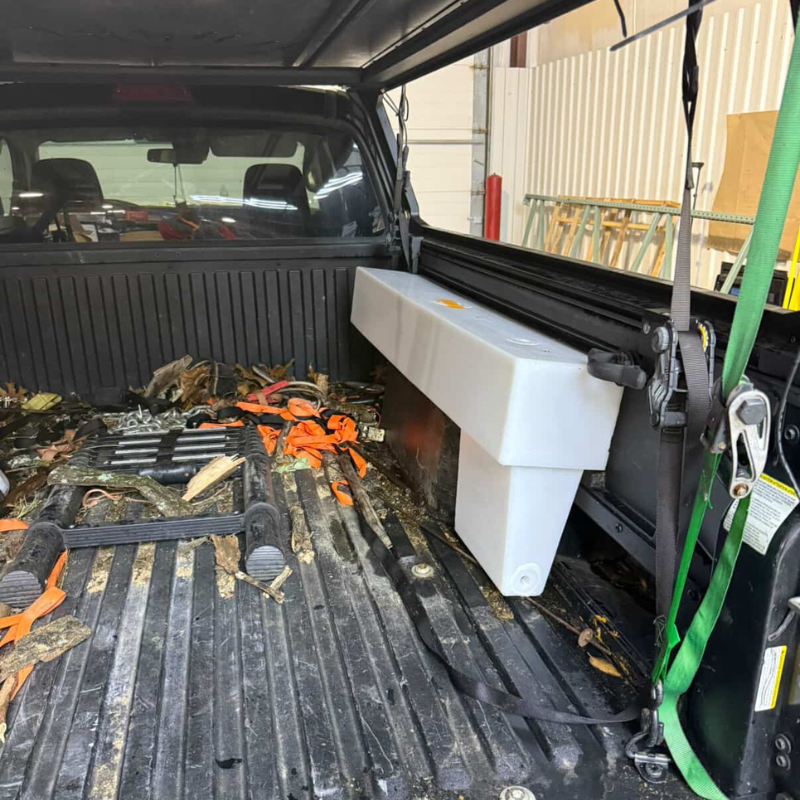

• Toyota Tacoma, passenger side bed wheel well
• Fits 2nd and 3rd generation Tacomas (2005-present)

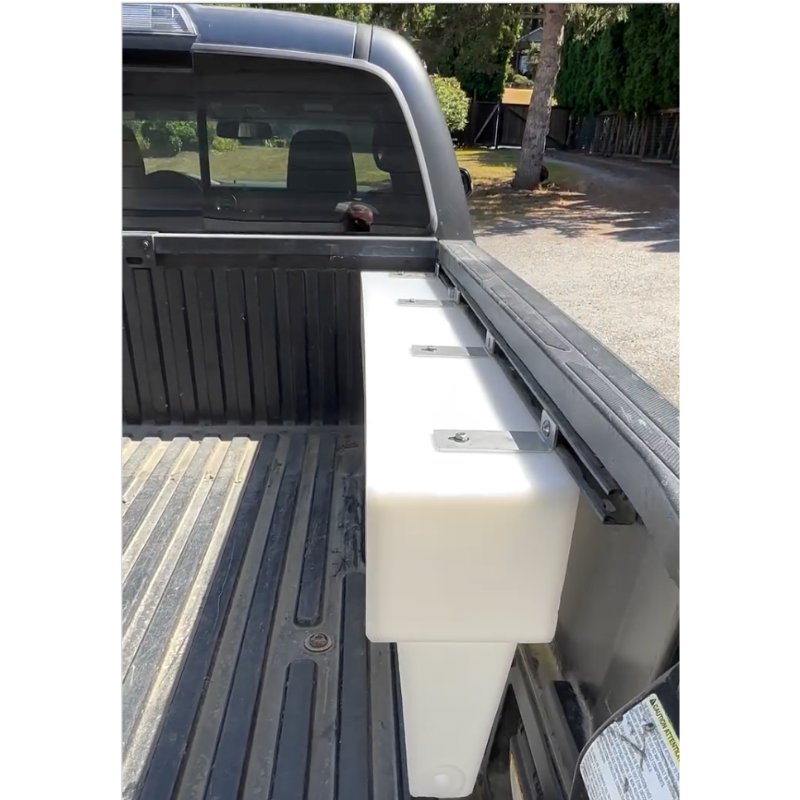

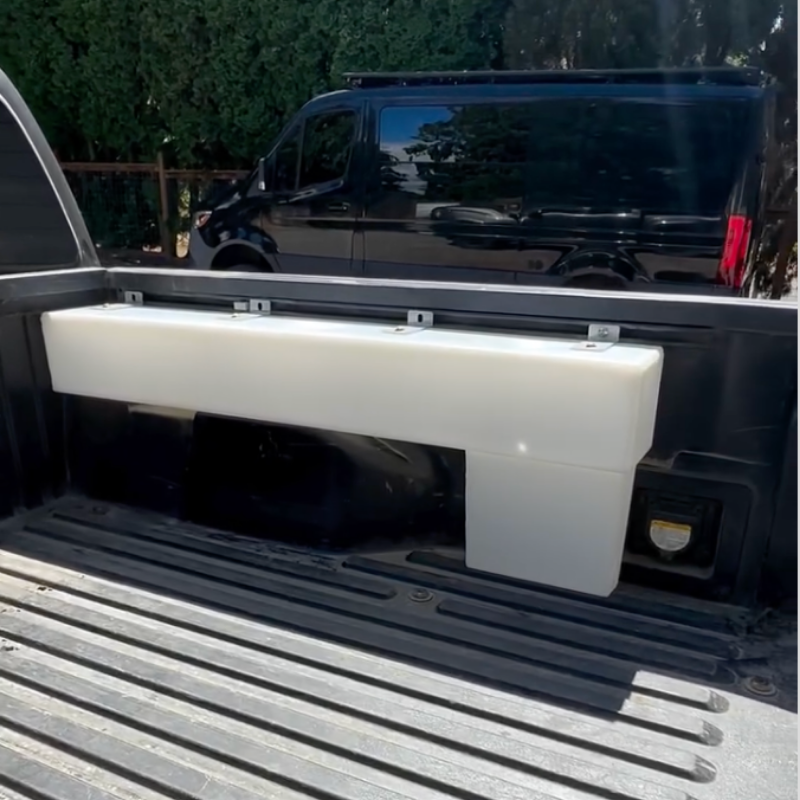

• Installs into the bed rails using included brackets and hardware

Resources

• TEI Listing
