KC50
C-Series LED Light Bars
C-Series LED Light Bars
Regular price
$260.00 USD
Regular price
Sale price
$260.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
FEATURES
-6"to 50" C-SERIES LED Dual Row Light Bar
-Precision reflectors with forward facing LEDs
-Combo Beam Pattern: 8° Spot & 90° Spread
-Extruded Aluminum Housings
-GORE® Membrane Barrier
LIGHT PERFORMANCE
-RAW Lumens: 6"= 3,240 lm, 10"= 5,400 lm, 20"= 10,800 lm, 30"= 16,200 lm, 40"= 21,600 lm, 50"= 27,000 lm
-LUX @ 10 meters: 6"= 230 lx, 10"= 680 lx, 20"= 1,750 lx, 30"= 2,050 lx, 40"= 2,800 lx, 50"= 3,200 lx
-Candela: 6"= 23,000 cd, 10"= 68,000 cd, 20"= 175,000 cd, 30"= 205,000 cd, 40"= 280,000 cd, 50"= 320,000 cd
-Beam Distance (Meters): 6" = 303m, 10"= 522m, 20"= 837m, 30"= 906m, 40"= 1,058m, 50"= 1,131m
SPECIFICATIONS
-Wattage: 36W-300W
-LED Source: CREE LED
-Color: 6000K
-Amp Draw: 3.0A-25.0A
-Voltage: 9V-32V
-IP Rating: IP67
-Product Dimensions: 6" = L - 7.38" x H - 3.09" x D - 3.40"; 10" = L - 11.38" x H - 3.09" x D - 3.40"; 20" = L - 21.38" x H - 3.09" x D - 3.40"; 30" = L - 31.38" x H - 3.09" x D - 3.40"; 40" = L - 41.38" x H - 3.09" x D - 3.40"; 50" = L - 51.38" x H - 3.09" x D - 3.40"
Parts Included with C-SERIES Light Bars
-Deluxe Wiring Harness w/ 2-Pin weather proof connectors
-Die-Cast Mounting Brackets with hardware
PERFORMANCE OUTPUT AND CLARITY
The C-Series uses an advanced dual row CREE LED design delivering up to 27,000 lumens of output with maximum power efficiency. Coming in various sizes KC HiLiTES C-Series LED Light bars are perfect for hood, front bumper, windshield and grille applications providing balanced and powerful light illumination.
HIGH PERFORMANCE MEETS AFFORDABILITY
C-Series light bar features an extruded aluminum housing, aluminum core PCBs with thermal management and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency, stability and reliability.
COMBO BEAM PATTERN AND ADVANTAGES
When it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 8° Spot & 90° Spread reflectors, for maximum forward distance and increased peripheral illumination along road edges.
DESIGNED FOR DURABILITY
Off road race tested, the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE® Membranes, the C-Series is resistant to moisture and dust.
Available Part Numbers
• 6" C Series C6 LED Light Bar Combo Beam - KC #314 (Combo Spot/Spread Beam)

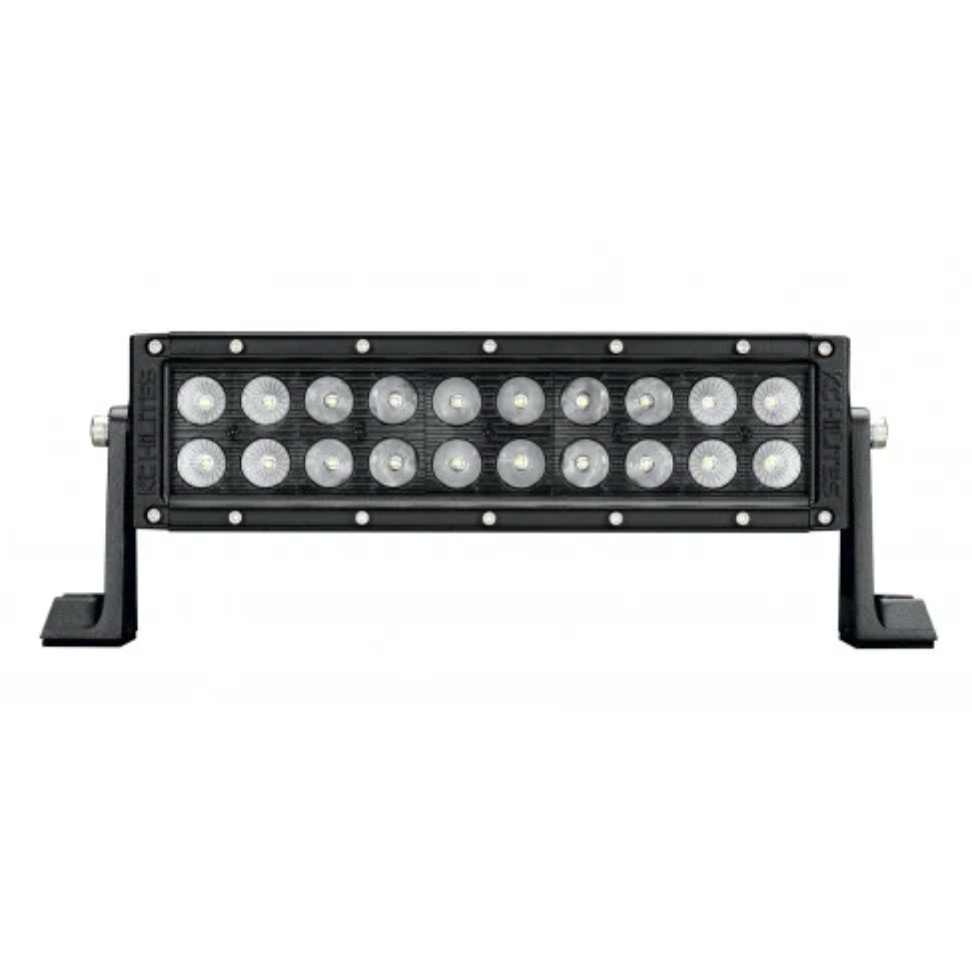

• 10" C Series C10 LED Light Bar Combo Beam - KC #334 (Combo Spot/Spread Beam)

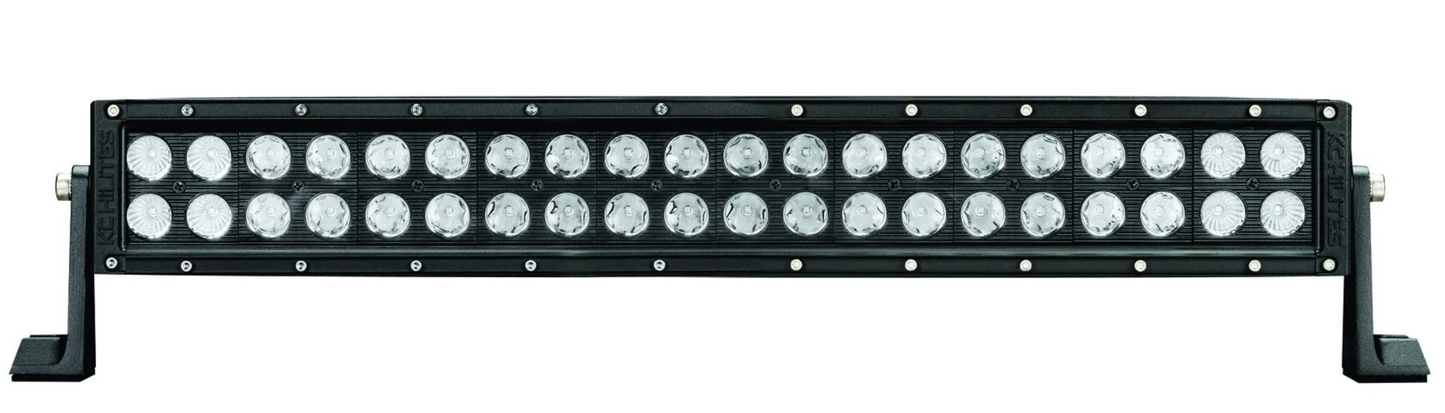

• 20" C Series C20 LED Light Bar Combo Beam - KC #335 (Combo Spot/Spread Beam)

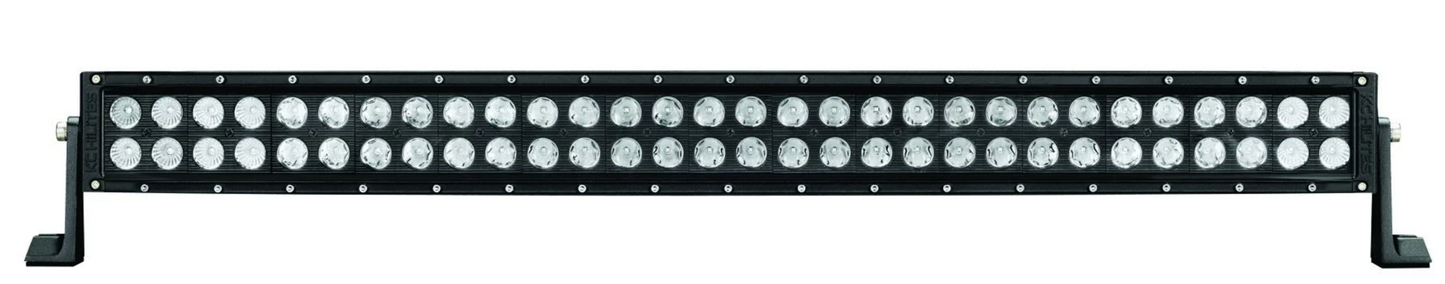

• 30" C Series C30 LED Light Bar Combo Beam - KC #336 (Combo Spot/Spread Beam)

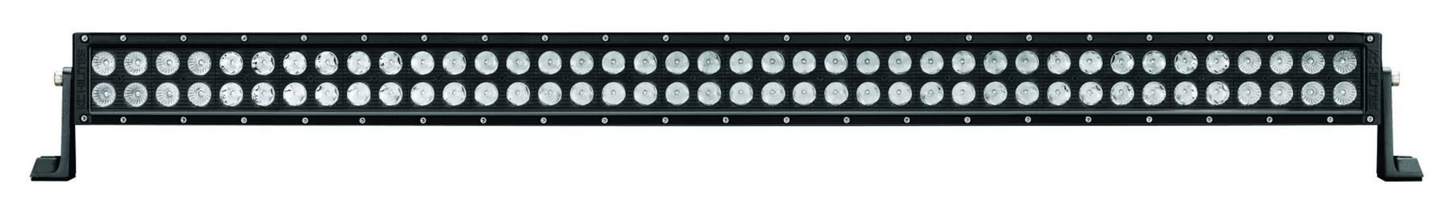

• 40" C Series C40 LED Light Bar Combo Beam - KC #337 (Combo Spot/Spread Beam)

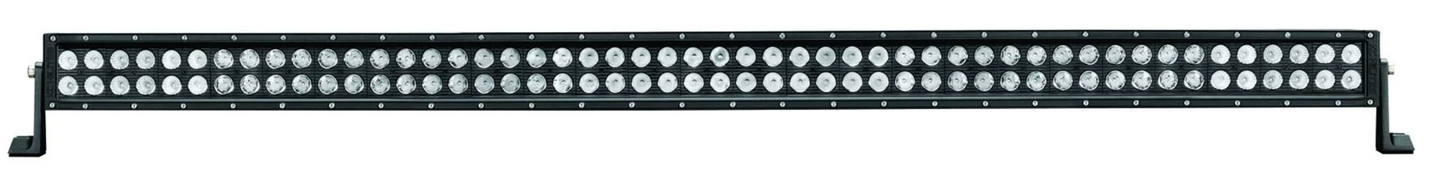

• 50" C Series C50 LED Light Bar Combo Beam - KC #338 (Combo Spot/Spread Beam)
View full details
-6"to 50" C-SERIES LED Dual Row Light Bar
-Precision reflectors with forward facing LEDs
-Combo Beam Pattern: 8° Spot & 90° Spread
-Extruded Aluminum Housings
-GORE® Membrane Barrier
LIGHT PERFORMANCE
-RAW Lumens: 6"= 3,240 lm, 10"= 5,400 lm, 20"= 10,800 lm, 30"= 16,200 lm, 40"= 21,600 lm, 50"= 27,000 lm
-LUX @ 10 meters: 6"= 230 lx, 10"= 680 lx, 20"= 1,750 lx, 30"= 2,050 lx, 40"= 2,800 lx, 50"= 3,200 lx
-Candela: 6"= 23,000 cd, 10"= 68,000 cd, 20"= 175,000 cd, 30"= 205,000 cd, 40"= 280,000 cd, 50"= 320,000 cd
-Beam Distance (Meters): 6" = 303m, 10"= 522m, 20"= 837m, 30"= 906m, 40"= 1,058m, 50"= 1,131m
SPECIFICATIONS
-Wattage: 36W-300W
-LED Source: CREE LED
-Color: 6000K
-Amp Draw: 3.0A-25.0A
-Voltage: 9V-32V
-IP Rating: IP67
-Product Dimensions: 6" = L - 7.38" x H - 3.09" x D - 3.40"; 10" = L - 11.38" x H - 3.09" x D - 3.40"; 20" = L - 21.38" x H - 3.09" x D - 3.40"; 30" = L - 31.38" x H - 3.09" x D - 3.40"; 40" = L - 41.38" x H - 3.09" x D - 3.40"; 50" = L - 51.38" x H - 3.09" x D - 3.40"
Parts Included with C-SERIES Light Bars
-Deluxe Wiring Harness w/ 2-Pin weather proof connectors
-Die-Cast Mounting Brackets with hardware
PERFORMANCE OUTPUT AND CLARITY
The C-Series uses an advanced dual row CREE LED design delivering up to 27,000 lumens of output with maximum power efficiency. Coming in various sizes KC HiLiTES C-Series LED Light bars are perfect for hood, front bumper, windshield and grille applications providing balanced and powerful light illumination.
HIGH PERFORMANCE MEETS AFFORDABILITY
C-Series light bar features an extruded aluminum housing, aluminum core PCBs with thermal management and lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency, stability and reliability.
COMBO BEAM PATTERN AND ADVANTAGES
When it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 8° Spot & 90° Spread reflectors, for maximum forward distance and increased peripheral illumination along road edges.
DESIGNED FOR DURABILITY
Off road race tested, the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE® Membranes, the C-Series is resistant to moisture and dust.
Available Part Numbers
• 6" C Series C6 LED Light Bar Combo Beam - KC #314 (Combo Spot/Spread Beam)
• 10" C Series C10 LED Light Bar Combo Beam - KC #334 (Combo Spot/Spread Beam)
• 20" C Series C20 LED Light Bar Combo Beam - KC #335 (Combo Spot/Spread Beam)
• 30" C Series C30 LED Light Bar Combo Beam - KC #336 (Combo Spot/Spread Beam)
• 40" C Series C40 LED Light Bar Combo Beam - KC #337 (Combo Spot/Spread Beam)
• 50" C Series C50 LED Light Bar Combo Beam - KC #338 (Combo Spot/Spread Beam)
