Passenger Side Van Kitchen

Are you looking for a way to maximize the space in your van conversion without sacrificing a complete kitchen space? Serg Supply's Passenger Side Van Kitchen for the Mercedes Sprinter, Ford Transit, or Ram Promaster van provides you with all that you need and more for living life on the road in comfort and style.

Serg Supply's passenger-side van kitchen is preassembled and ready for installation. It is designed for the DIYer and professional builder to speed up the time of your van conversion and get you on the road, not in the garage or shop working on your Sprinter Van.

This passenger-side van kitchen is crafted in the USA with top-quality materials, creating an unparalleled on-the-go cooking experience.

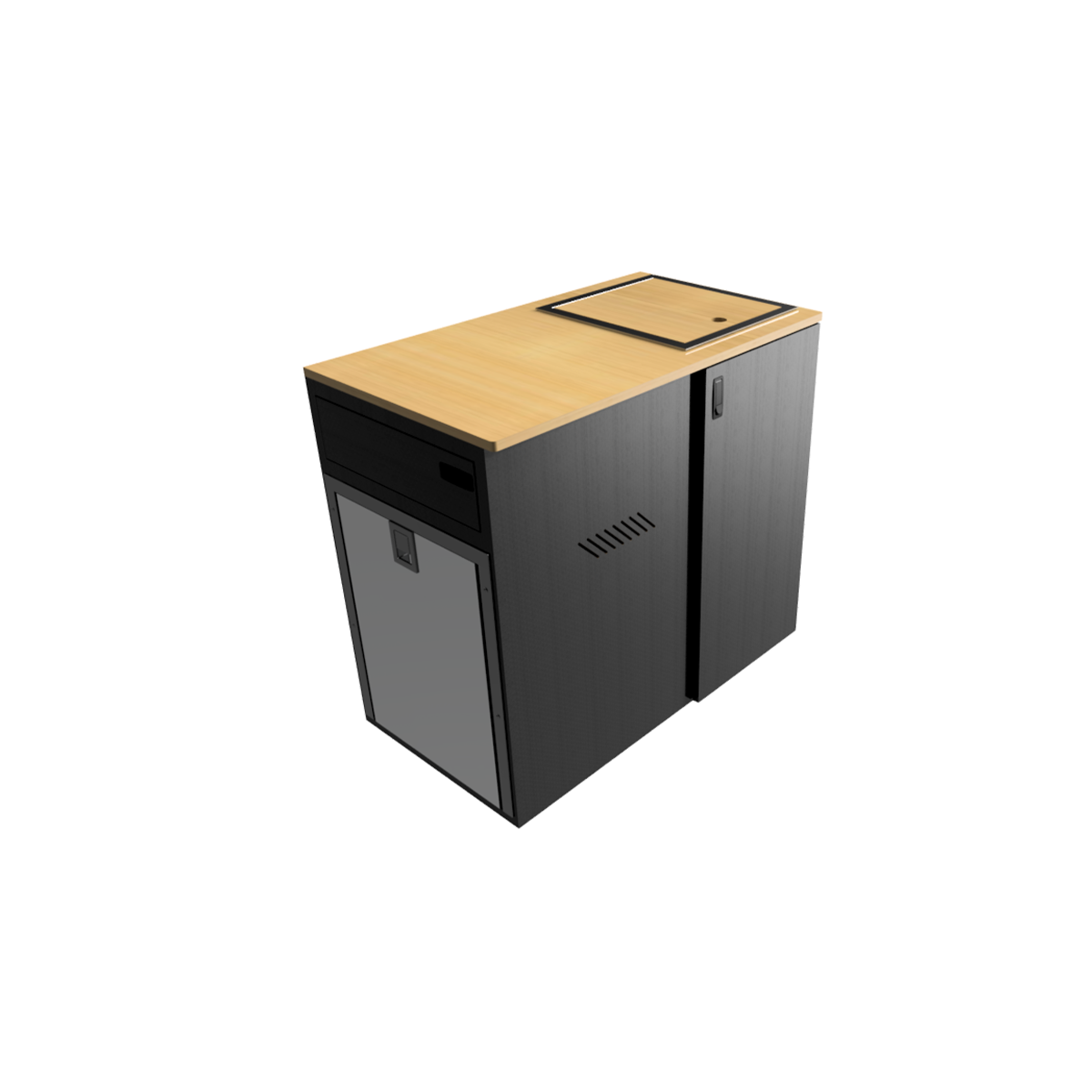

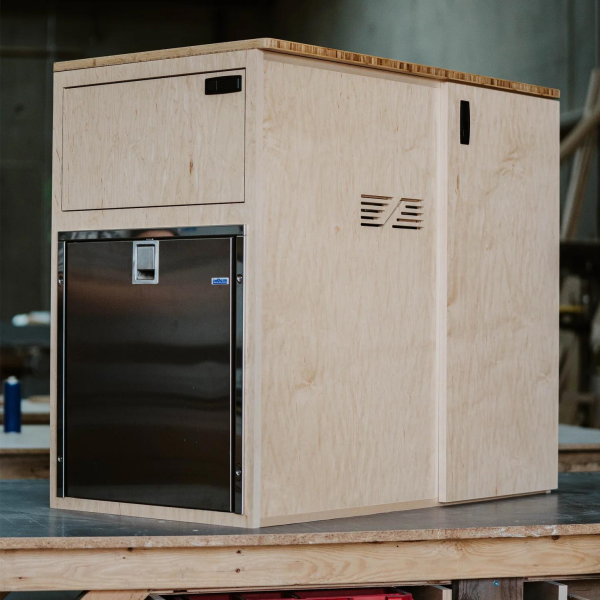

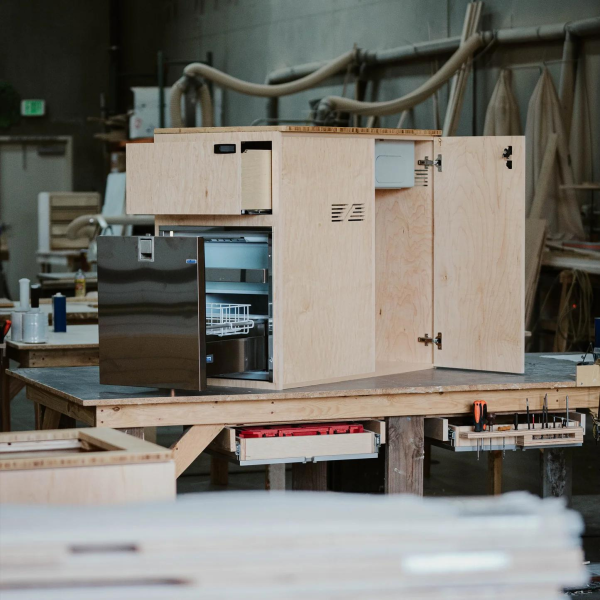

The Van Kitchen sits on the passenger side of your van, protruding into the slider door access area. This van kitchen was designed specifically for the passenger side to allow access to the refrigerator from the inside and outside of your camper van. The passenger-side van kitchen boasts not only a drop-in sink but a full pull-out drawer with dovetail construction to keep your kitchen items neatly stored and secure while traveling. Below the sink, you're provided a large door that offers easy access to your sink plumbing and a large storage area for whatever you need on your travels. Most commonly, the space beneath the sink in your van kitchen stores additional water.

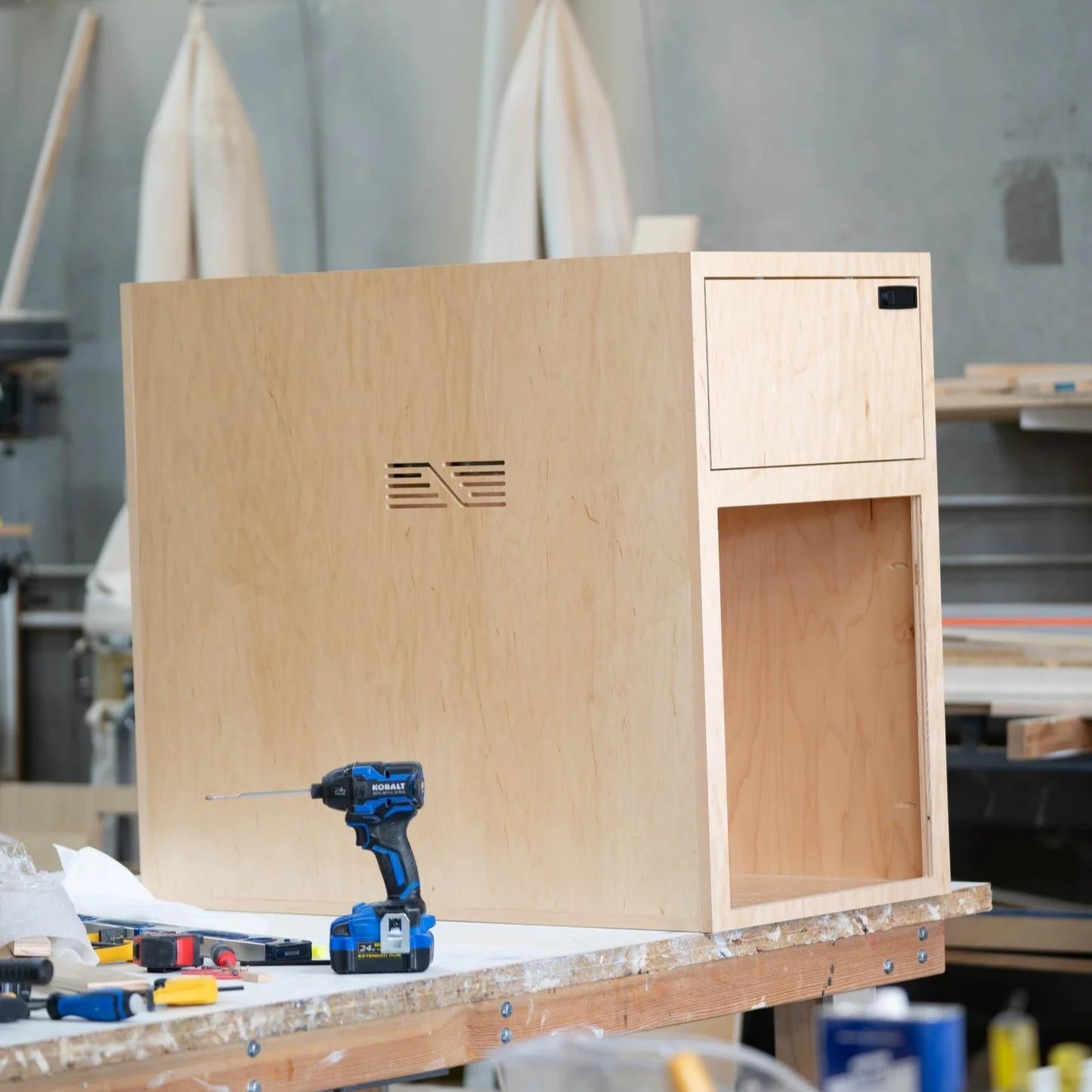

This unit is designed for the ISOTHERM DR65 or ISOTHERM DR85. Make your van conversion simple by choosing the preinstalled option, or send us a message about a refrigerator you may already have, and we will do our best to accommodate.

All of Serg Supply's Products, including the Passenger-Side Kitchen, are handmade right here in the USA using only high-quality materials for a professional finish.

*These are made to order products. ALL SALES ARE FINAL.

If you need more space from your slider door area for your van conversion, we suggest checking out the universal kitchen galley as well as our refrigerator cabinet!

Features

• Tailored for ISOTHERM DR65 or ISOTHERM DR85 for top-quality and high-performing refrigeration.
• Premium Materials: Serg Supply's cabinet is constructed using high-quality materials of your choice, accentuated by a beautiful prefinished carbonized bamboo slab, adding a touch of elegance to your mobile kitchen.

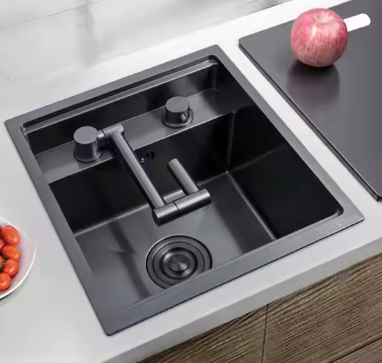

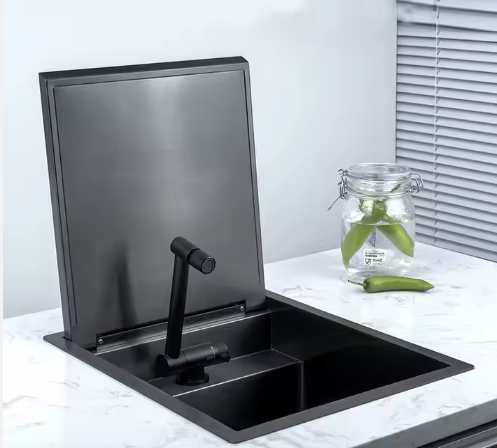

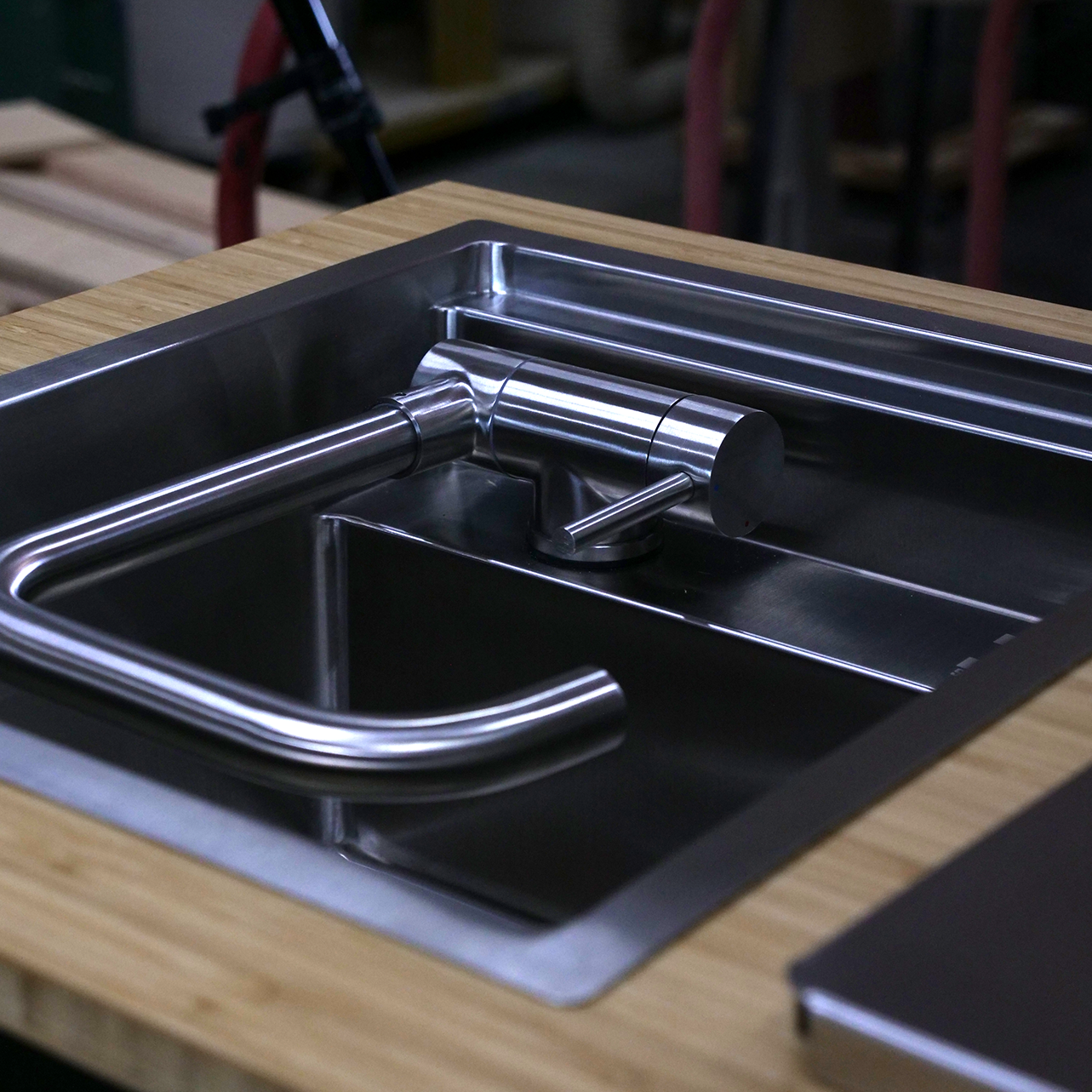

• Efficient Design: This van kitchen is thoughtfully designed to maximize functionality. It has a stainless steel sink with a bamboo insert for a functional and elegant finish.

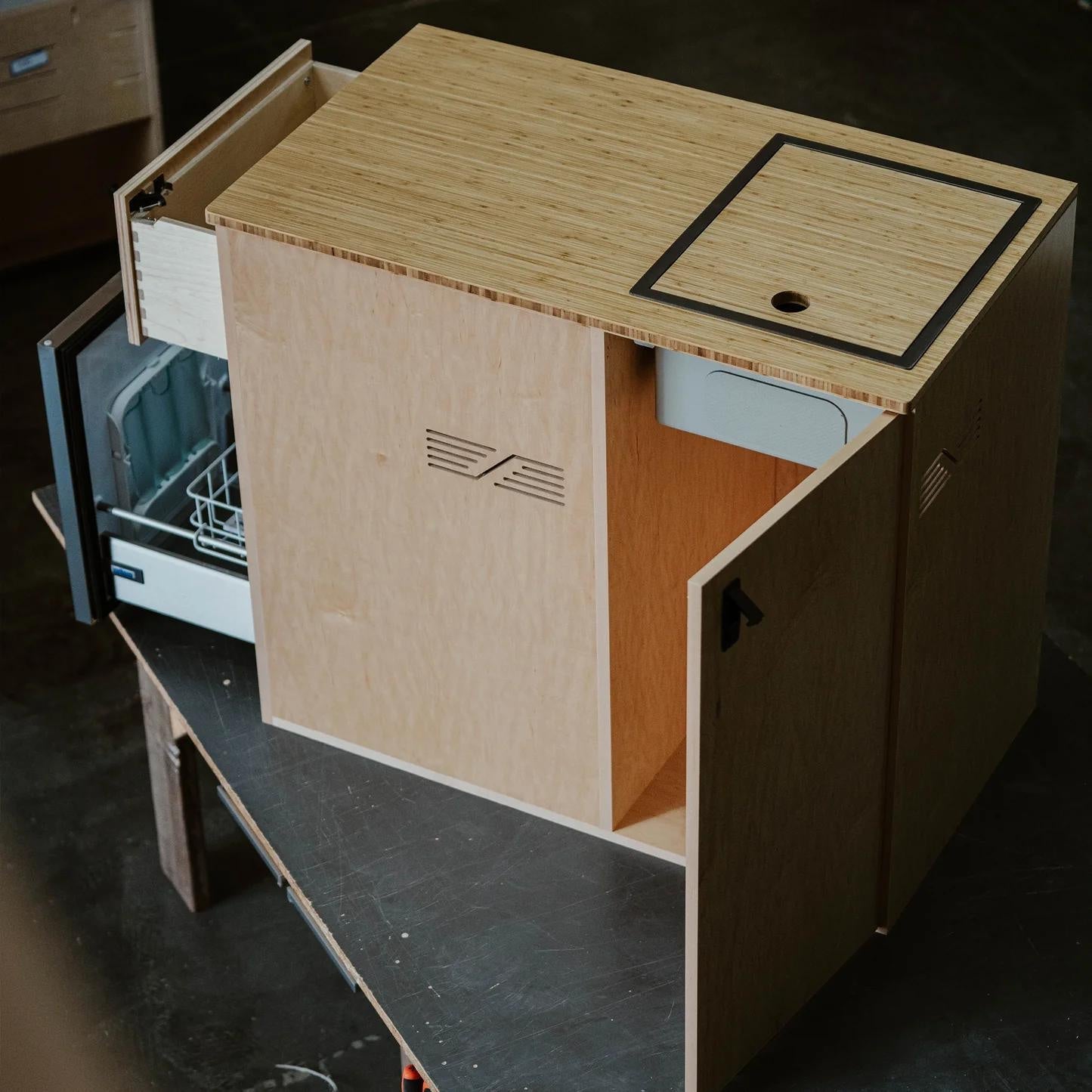

• Ample Storage: A hinged door provides easy access to the lower sink area, while a pullout drawer above the refrigerator offers additional storage space for your essentials.
• Silent Operation: The soft-close hinges and slides ensure a quiet and smooth user experience. You can adjust the height, angle, and depth to suit your preferences.
• Water System Ready: This van kitchen can accommodate and enclose your water system, saving you time and effort during the conversion process.
• Secure Closure: Black adjustable pushbutton latches are preinstalled for added security, ensuring your kitchen remains intact during your adventures.

Materials

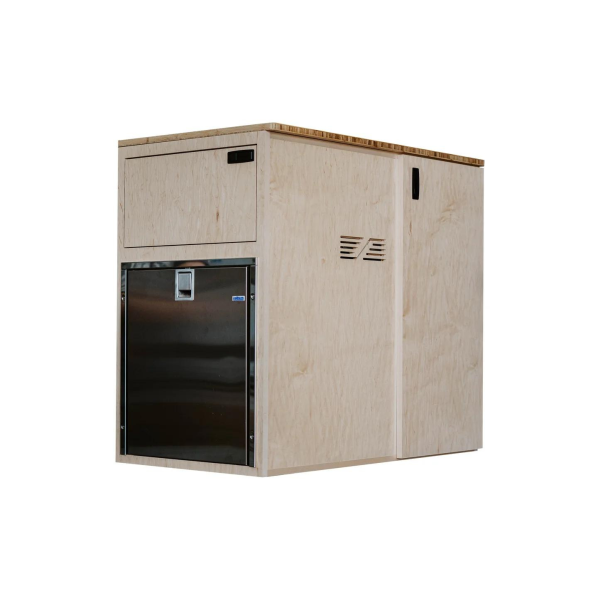

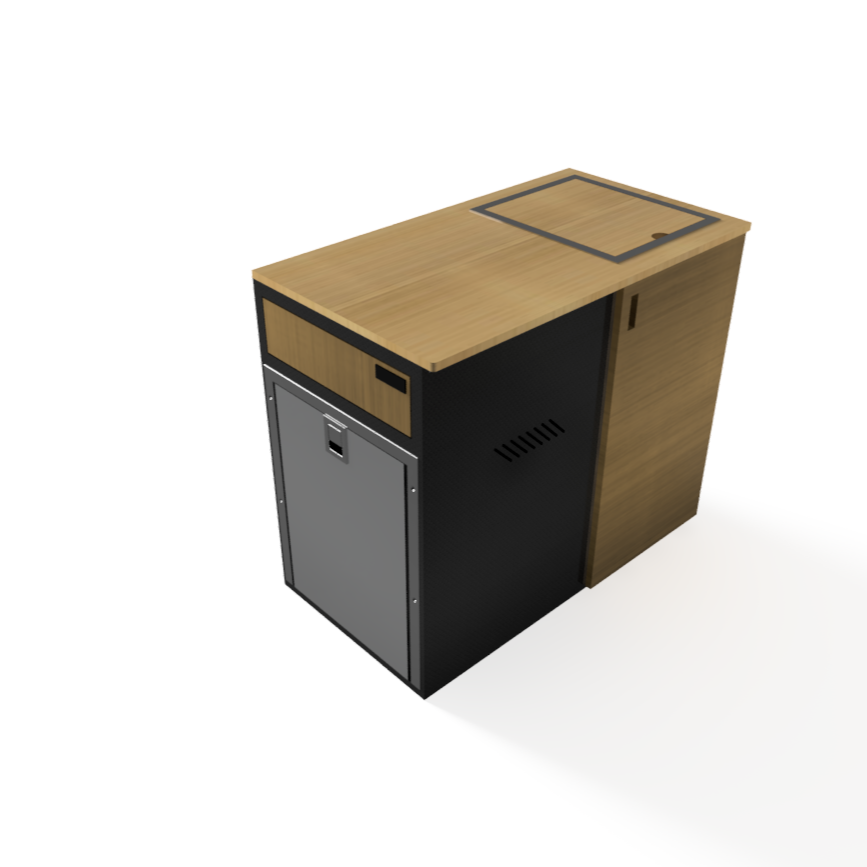

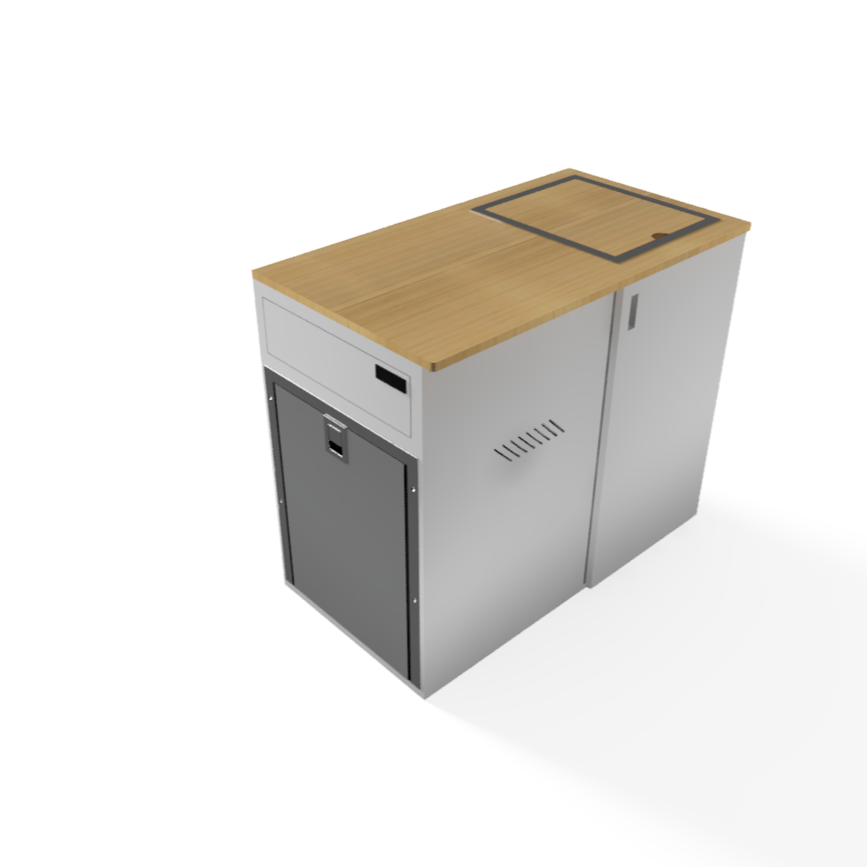

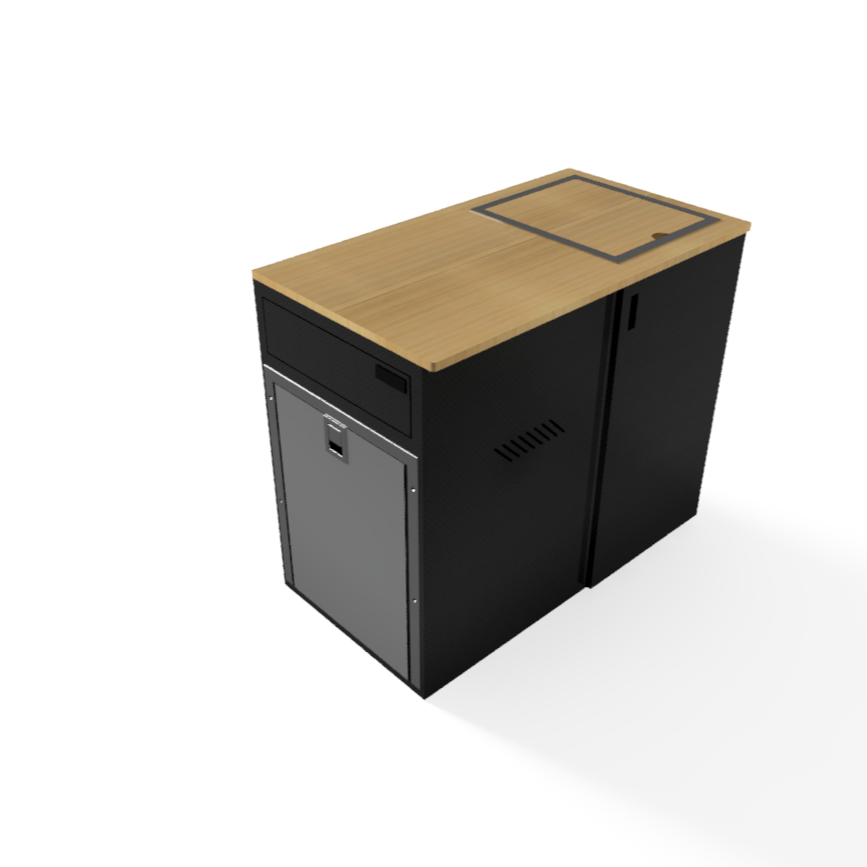

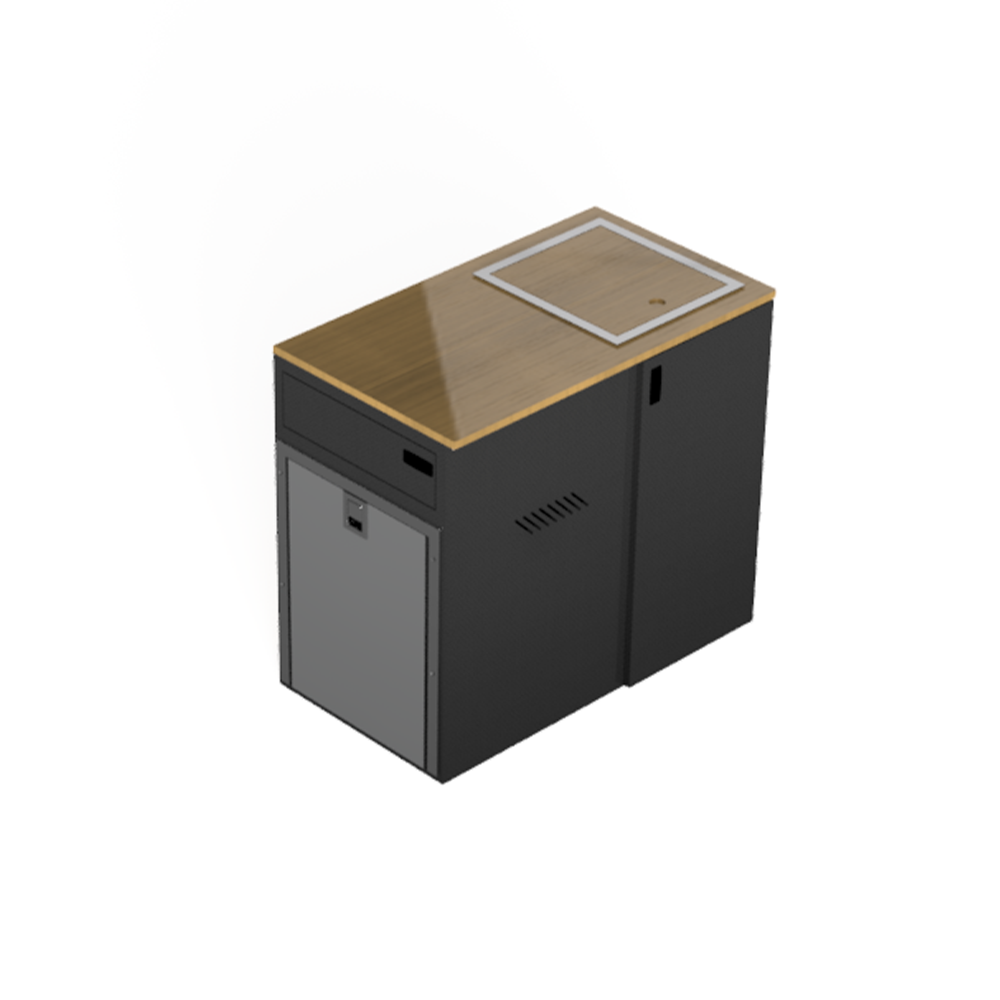

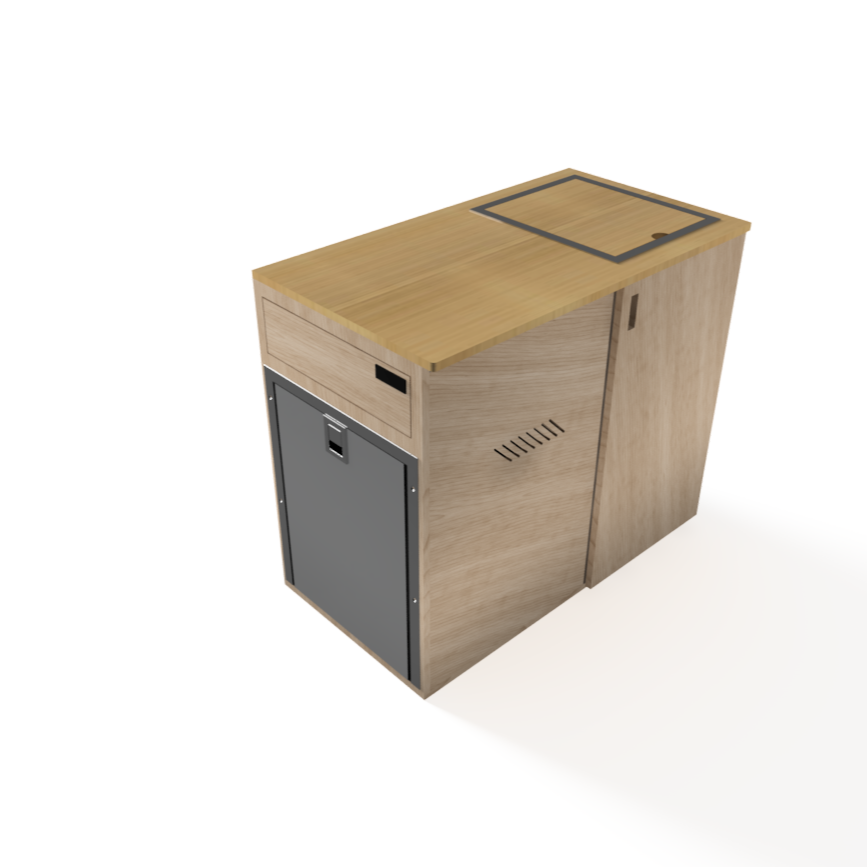

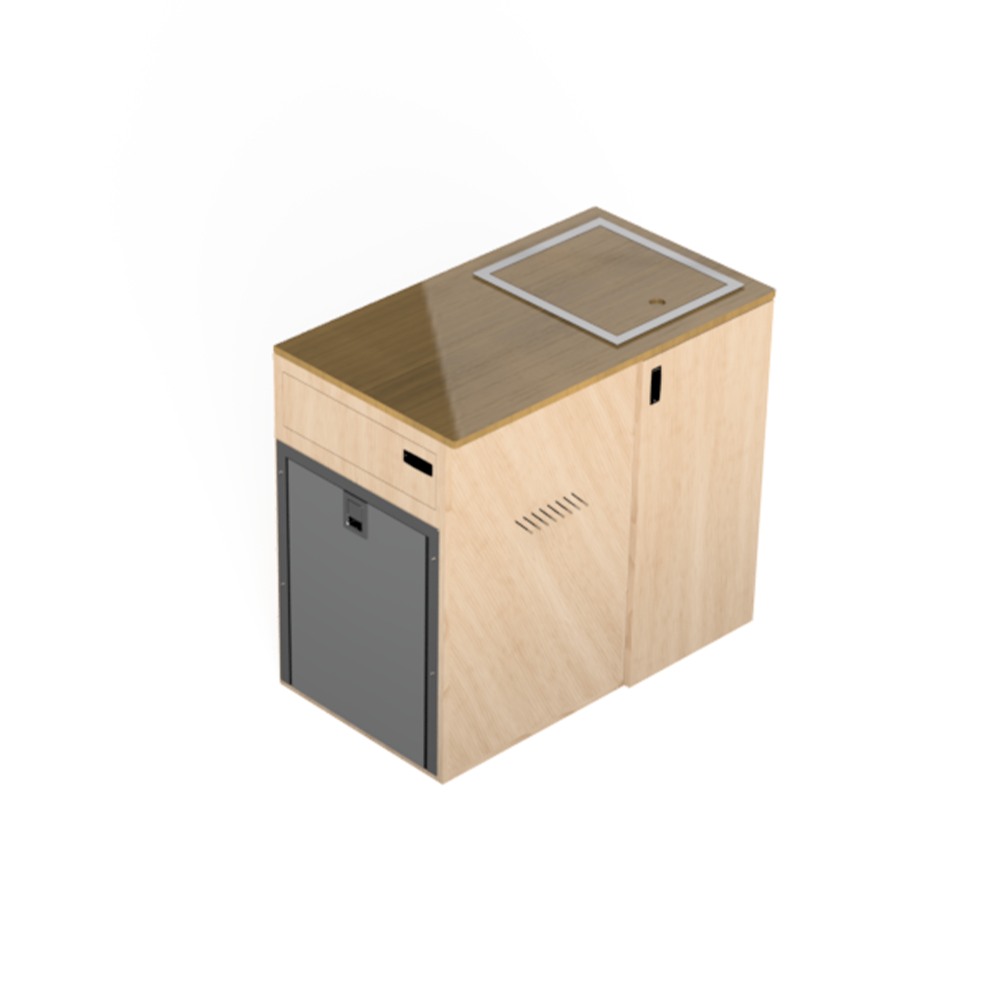

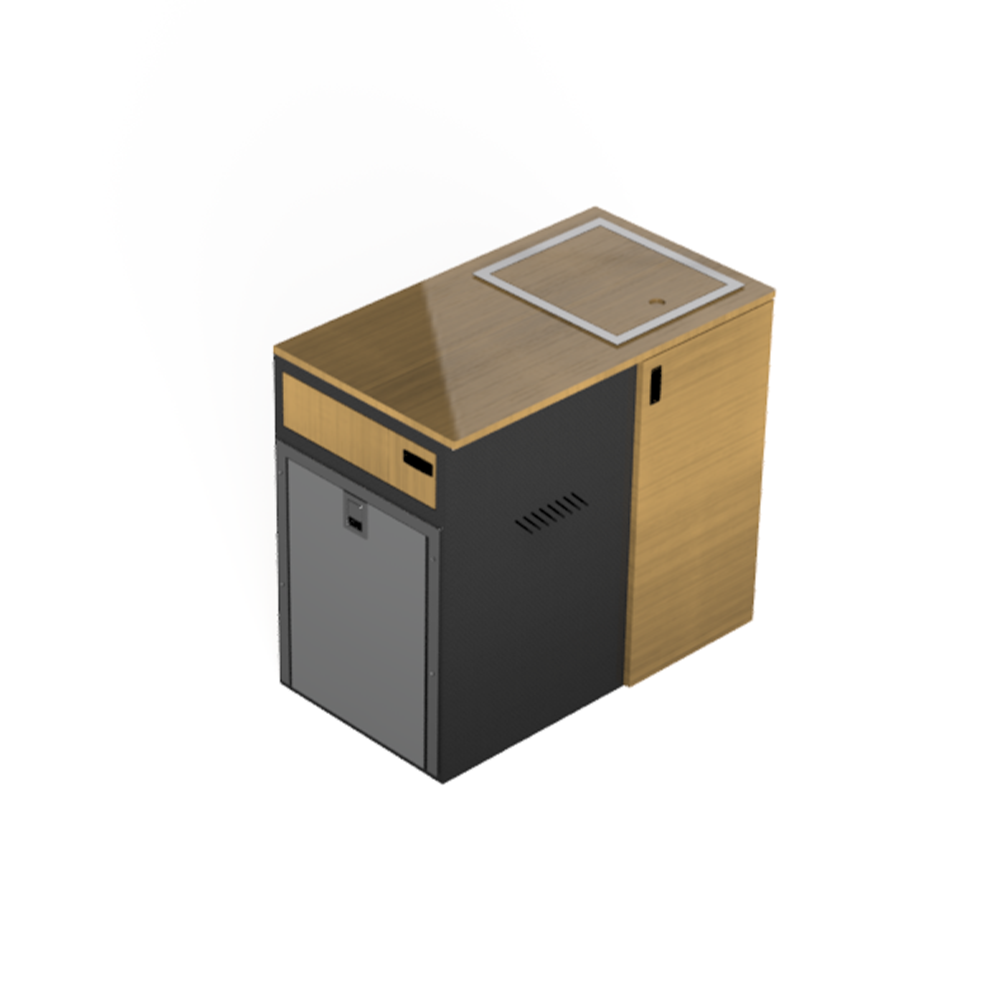

• Prefinished Maple, Stealth, or Stealth + Bamboo
• Amber Bamboo Slab - 3/4" 3-ply with a satin finish
• Prefinished with a satin-hardened urethane seal

• The back is prefinished and can be exposed to the outside slider
• Please refer to Serg Supply's materials page here to see images and details of each option: Materials

What's Included

• Kitchen Cabinet
• Stainless Steel Sink w/ sink insert
• Installation Hardware
• Isotherm DR65 or Isotherm DR85

Specs

• Cabinet: 40" Width x 22.75" Depth x 35.75" Height
• Weight: 80-130lbs without refrigerator

DIY Installation

Our Van Kitchens are designed to fit your walls with screws or Rivet Nuts.

• Installation Difficulty: Easy | 2 people
• Installation Time: 30 minutes
• Tools Needed: Power Drill, Rivet Nut Tool

FAQs

How do I install the galley?

Mounting to the wall: Serg Supply's galleys are designed to mount to the vehicle's wall. You can measure and mark a section of solid wall truss/beam behind the cabinet to approximate before shooting a screw or rivet nut into the wall. We recommend a minimum of three rivet nuts or five self-tapping screws to hold the galley in place.

Mounting the sink: Make sure to properly install the sink using the hardware provided with the sink. It is never wise to drop in a sink with no mounting brackets or silicone seal around the edges of the sink.

Installing a refrigerator: It is required to cut inlet and outlet ventilation holes for the unit; this allows the unit to cool down without posing a fire risk. Refer to your refrigerator unit manual for airflow direction and ventilation requirements.

How do I know if the Passenger Van Kitchen will fit my vehicle?

This kitchen is designed to stick out partially into your entry way. While we recommend a walk-through space of 30"+, this actual space will depend on your build layout. Please note: Transits and Promasters may require notching in the cabinet backing to clear the protruding metal entry way beam.

How do I apply, paint, stain, or sealer?

Painting

• Lightly scuff the entire cabinet surface that you plan on coating with 120-180 grit sandpaper.
• Apply 2-3 coats of primer before applying your main coat.
• Always apply a finish when you're happy with the paint for a long-lasting appearance.

Staining

• Sand the surface on all faces with sandpaper traveling with the grain of the wood.
• Apply stain cautiously to a section of the cabinet that will not be visible to gauge the volume and pressure you need to achieve the look you want.
• Apply the stain evenly with a rag, sponge, or spray gun until all surfaces are coated.
• Please note that overlapping surfaces may make the stain darker on the overlapped areas.
• Always apply a finish when you're happy with the stain for a long-lasting appearance.

What power intake does the refrigerator take?

The ISOTHERM line of refrigerators Serg Supply uses accepts 100-240V AC and 12V/24V DC
