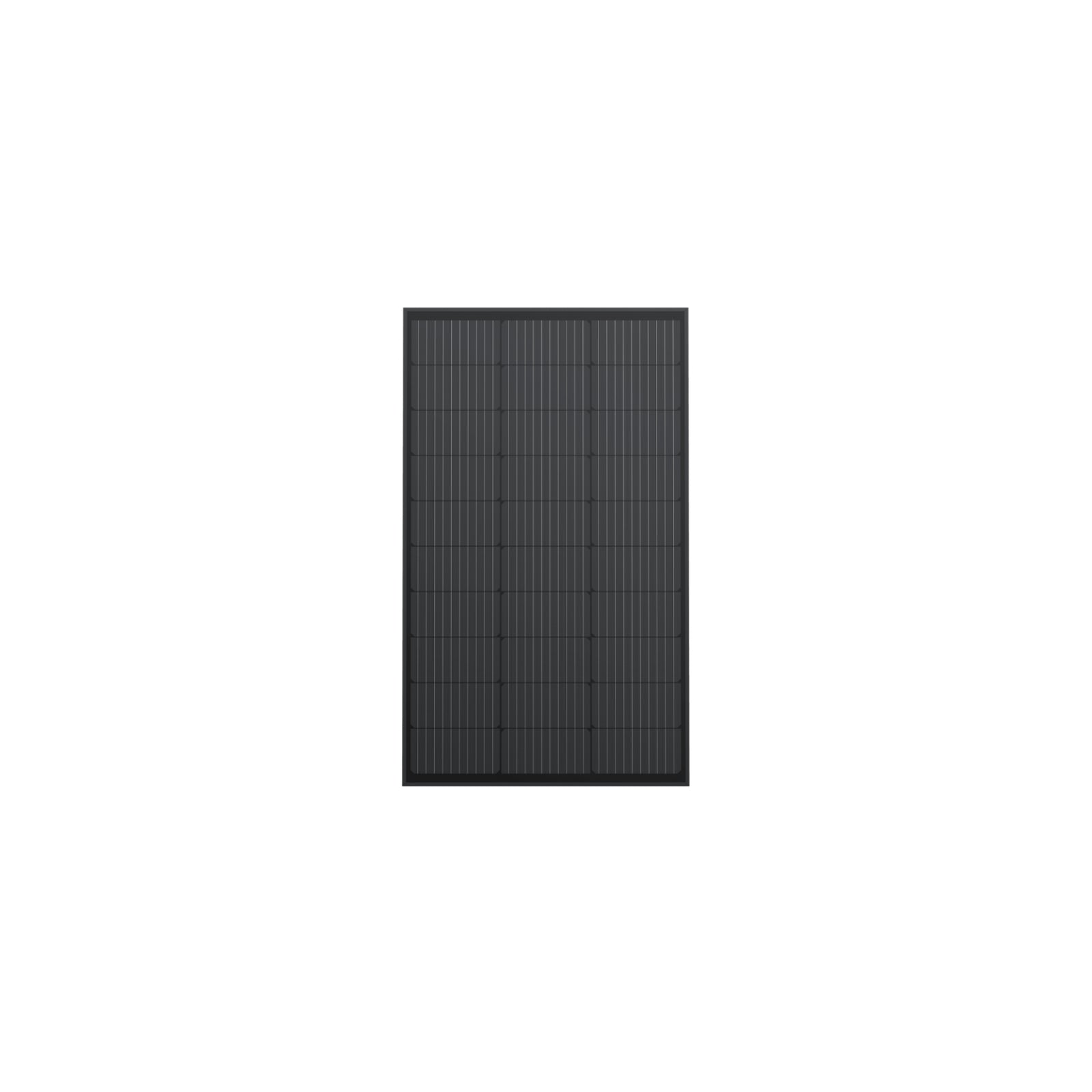

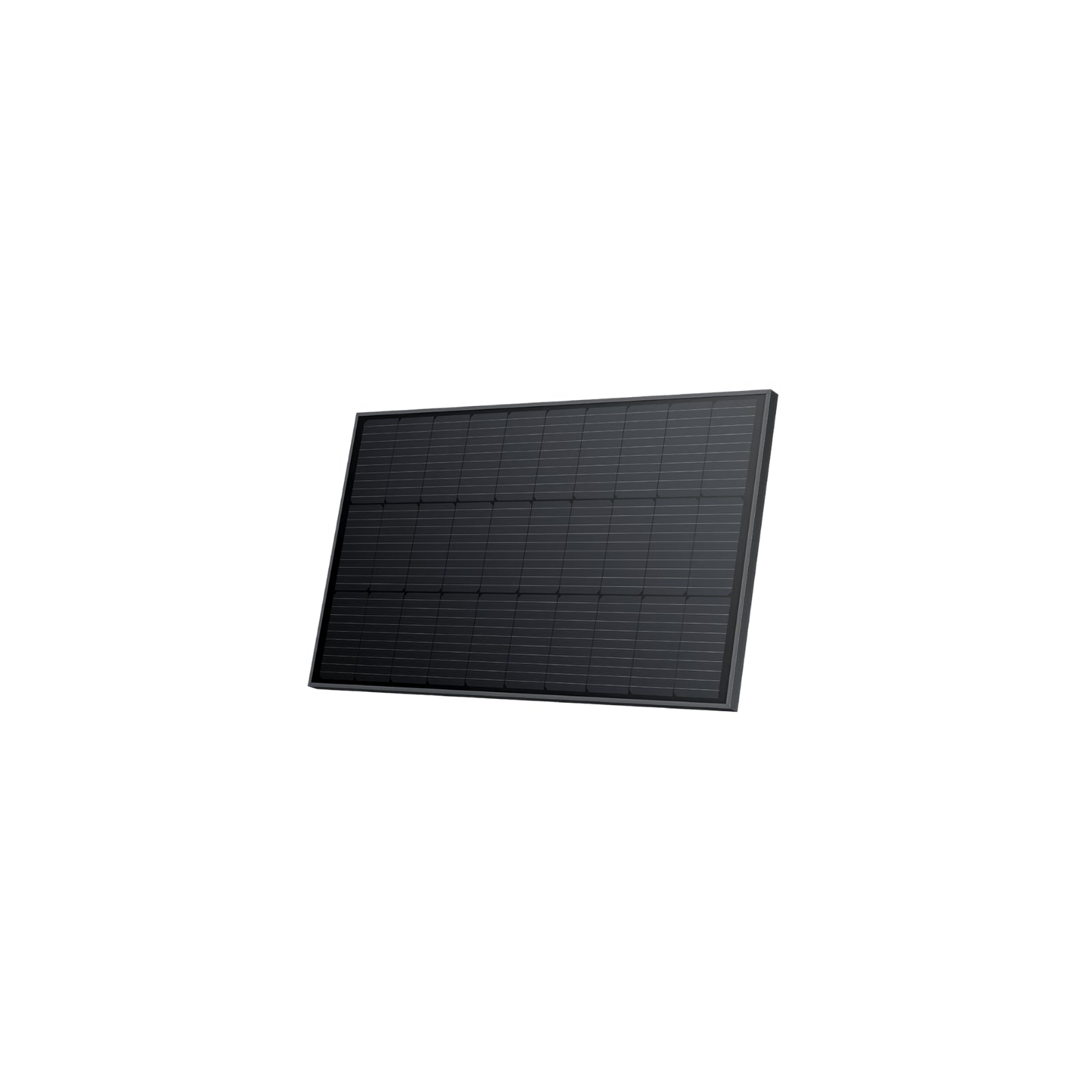

EcoFlow 100W Rigid Solar Panel
EcoFlow 100W Rigid Solar Panel
With a compact design and high-efficiency rating, string several of these industry-leading solar panels to quickly charge your LFP batteries and power your RV for days.
This item ships FREE in the Continental U.S.
Features:
- A 23% conversion rate to sunlight

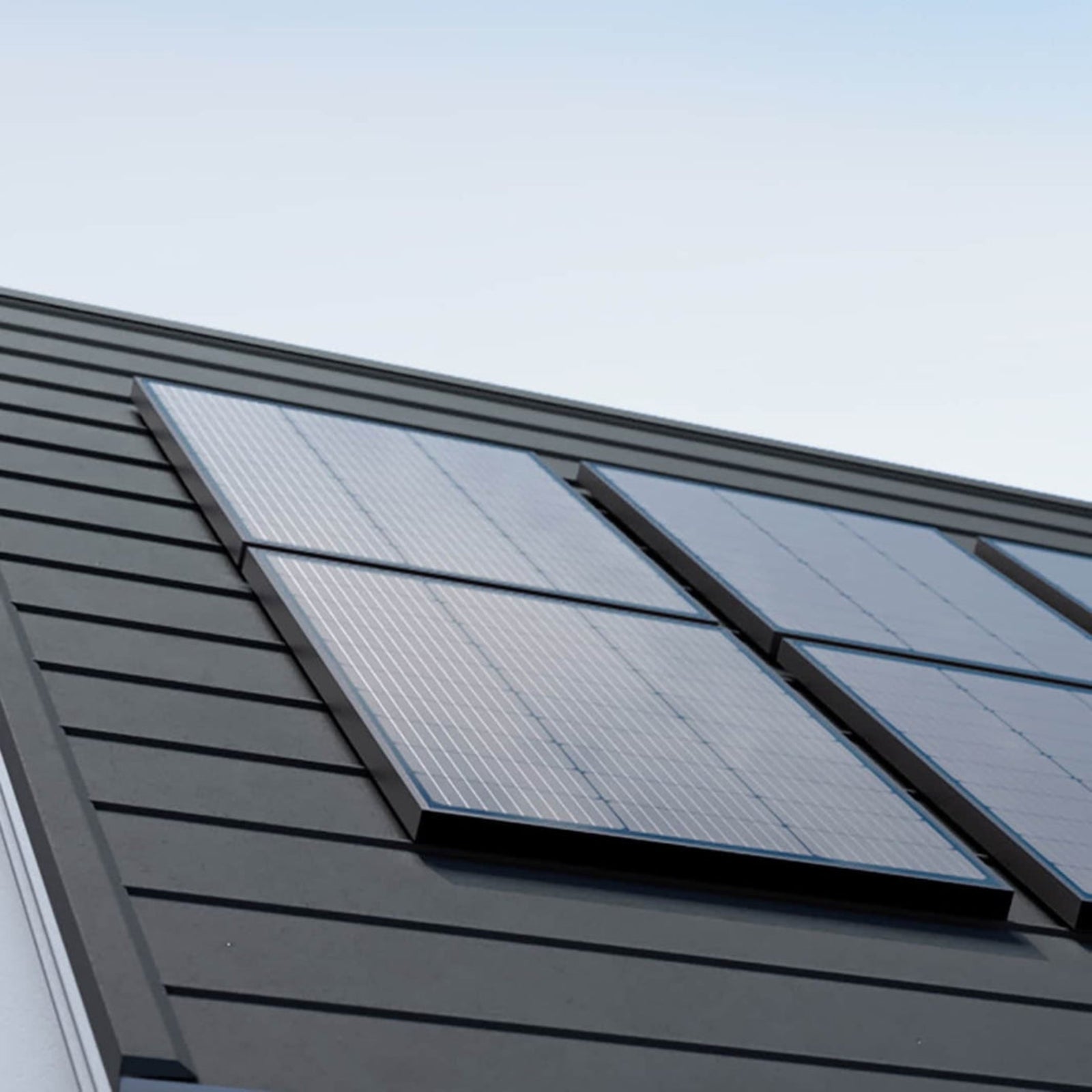

- All-black design that fits any house style
- Built to last with an IP68 waterproof rating
- Fast and Easy Installation
- Up to a 5-year warranty
100W Rigid Solar Panels
With a compact design and high-efficiency rating, string several of these industry-leading solar panels to quickly charge your LFP batteries and power your RV for days.

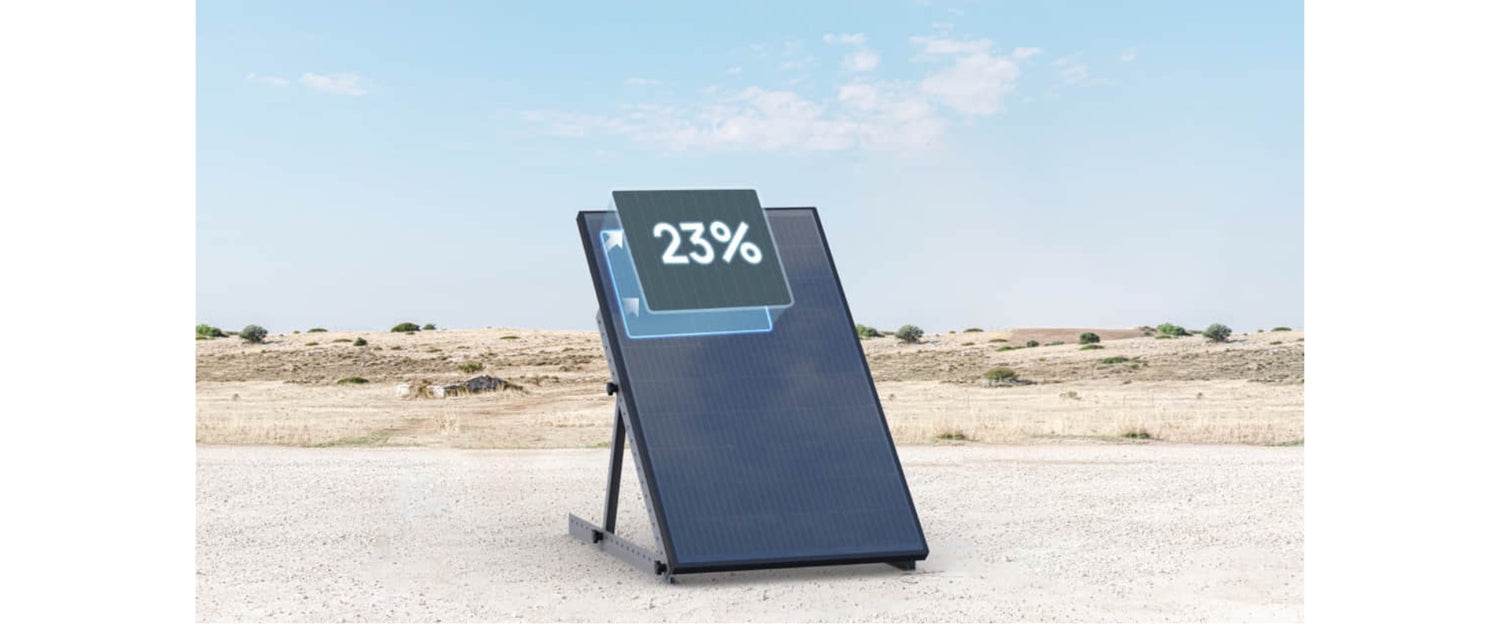

Charge Faster with High Solar Conversion
Our 100W rigid solar panel has an excellent conversion rating of 23%, allowing you to charge even faster. Combine as part of your Power Kits setup or EcoFlow portable power station, and the integrated MPPT algorithm optimizes your solar input.

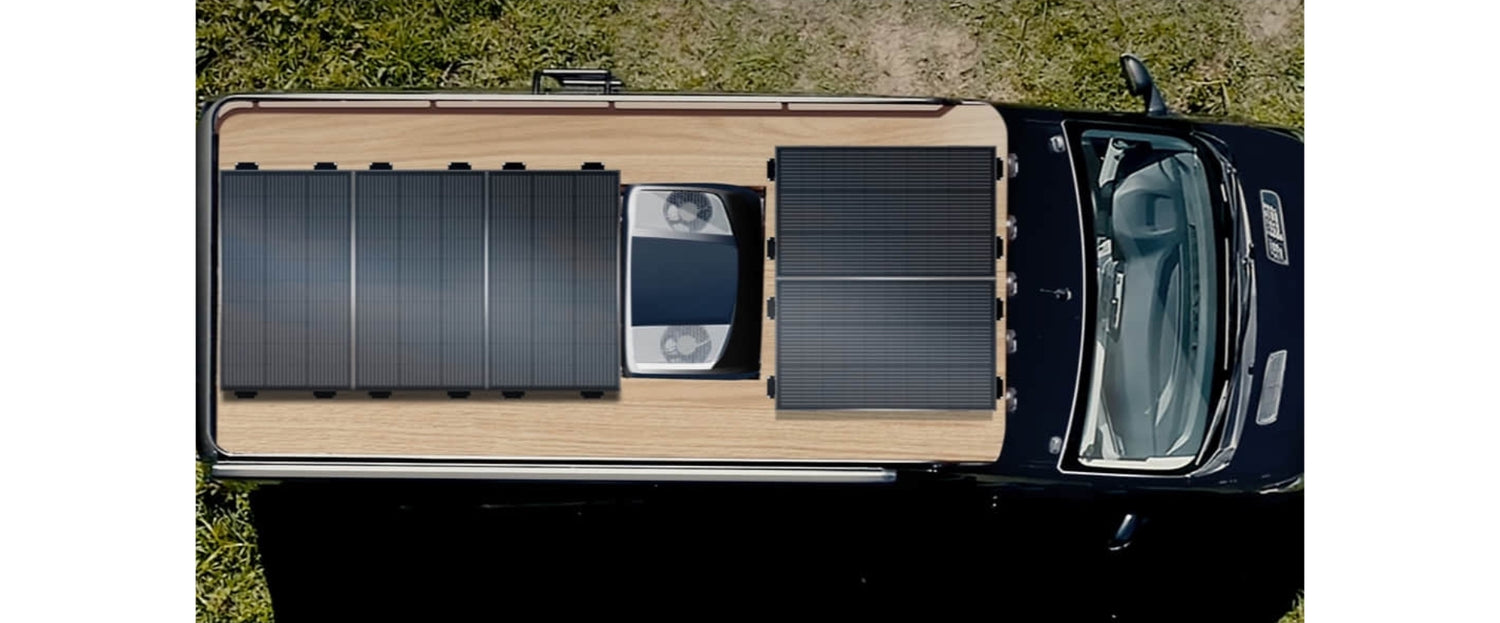

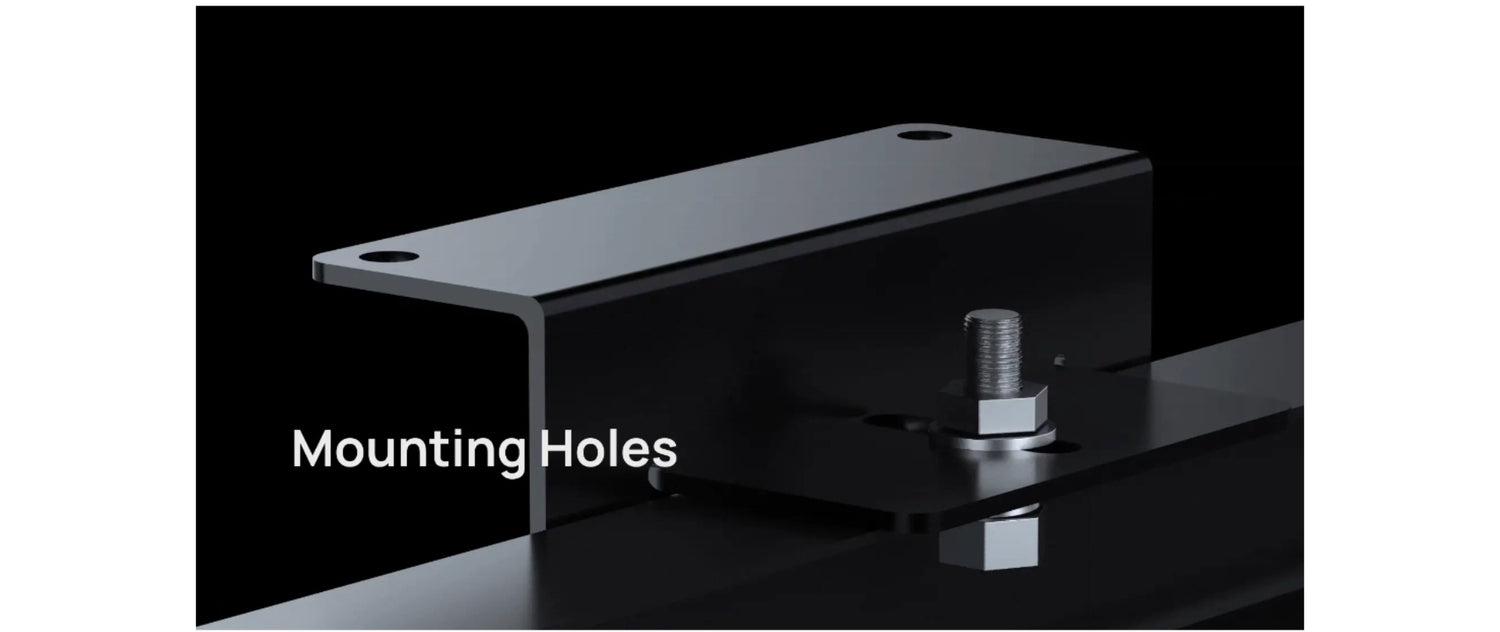

Ready to Install on Your Surfaces
With pre-cut holes on the panel, the 100W rigid panel is ready to mount on your van or off-grid build. Pair with the 100W Rigid Solar Panel Mounting Feet for a secure attachment to any surface.

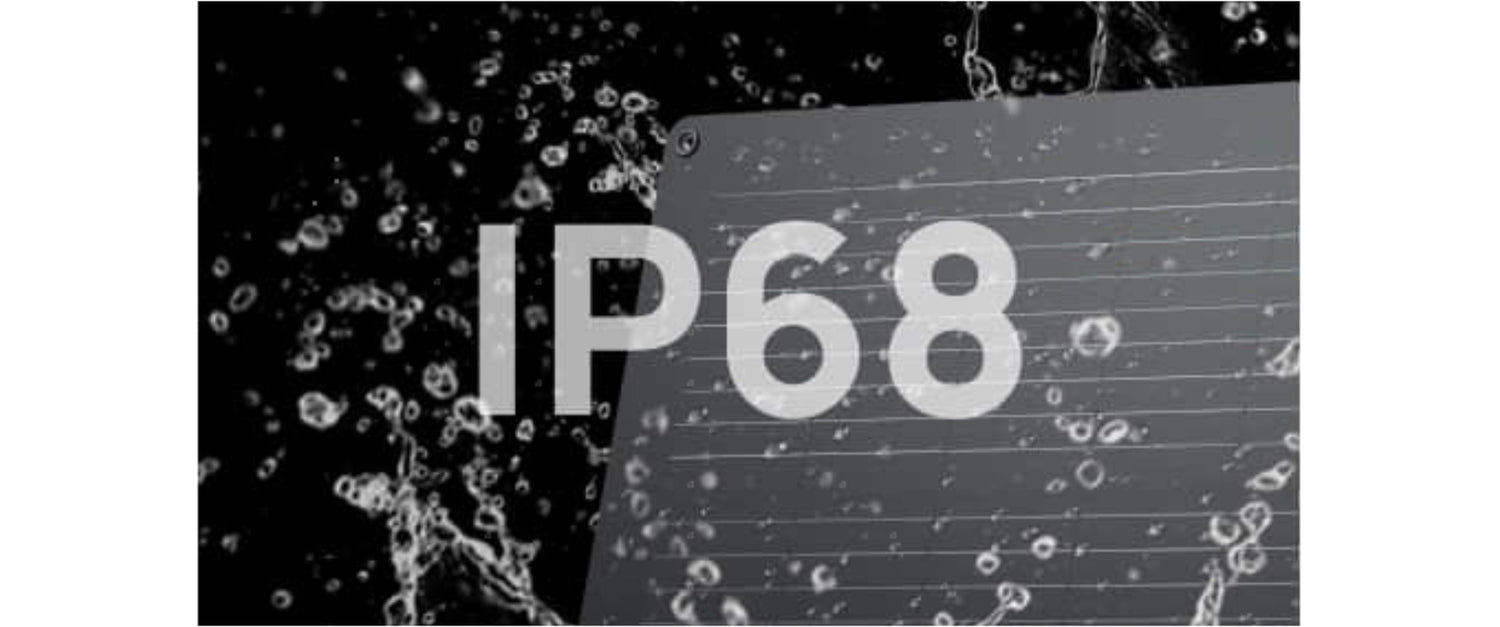

Stand Through All Weather
Our 100W rigid solar panel is designed for outdoor weather. With an IP68* waterproof rating, the panel can withstand dirt, low-pressure water jets, extreme winds of up to 130 mph, and even heavy snowfalls.
*Water and dust resistance were tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum water depth of 1 meter for up to 72 hours.)

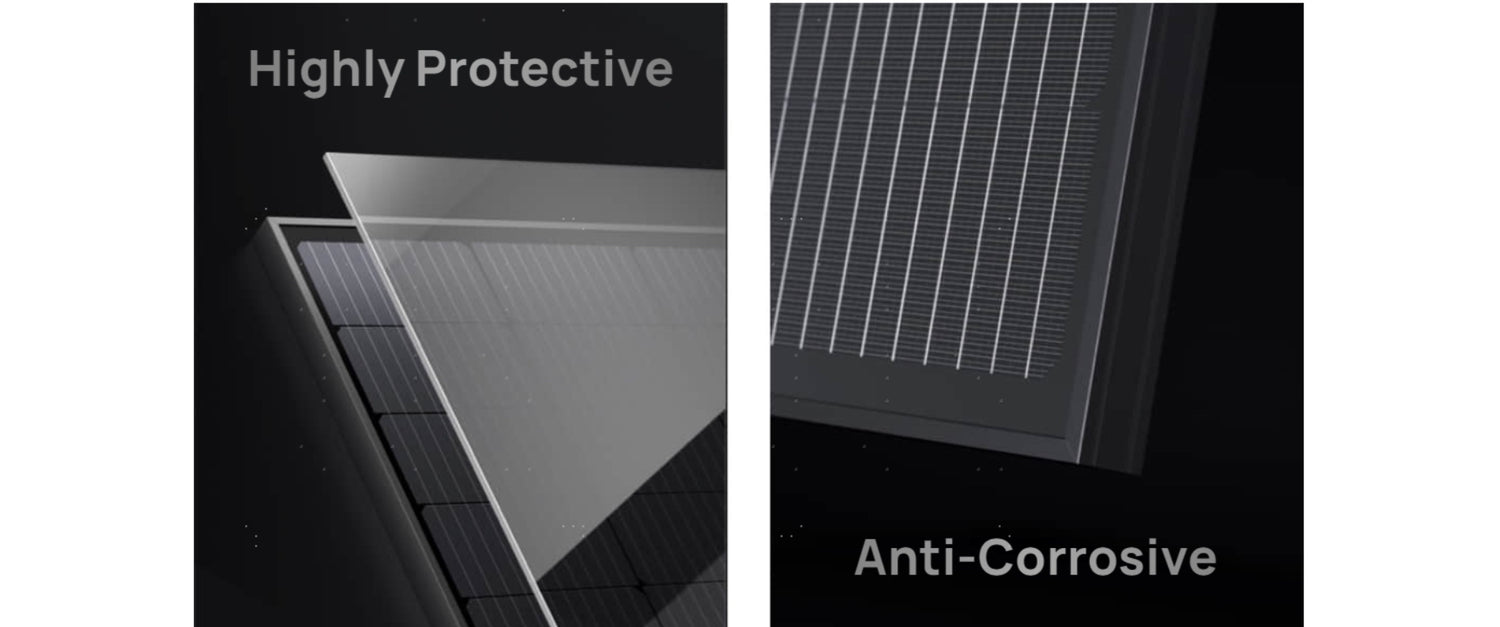

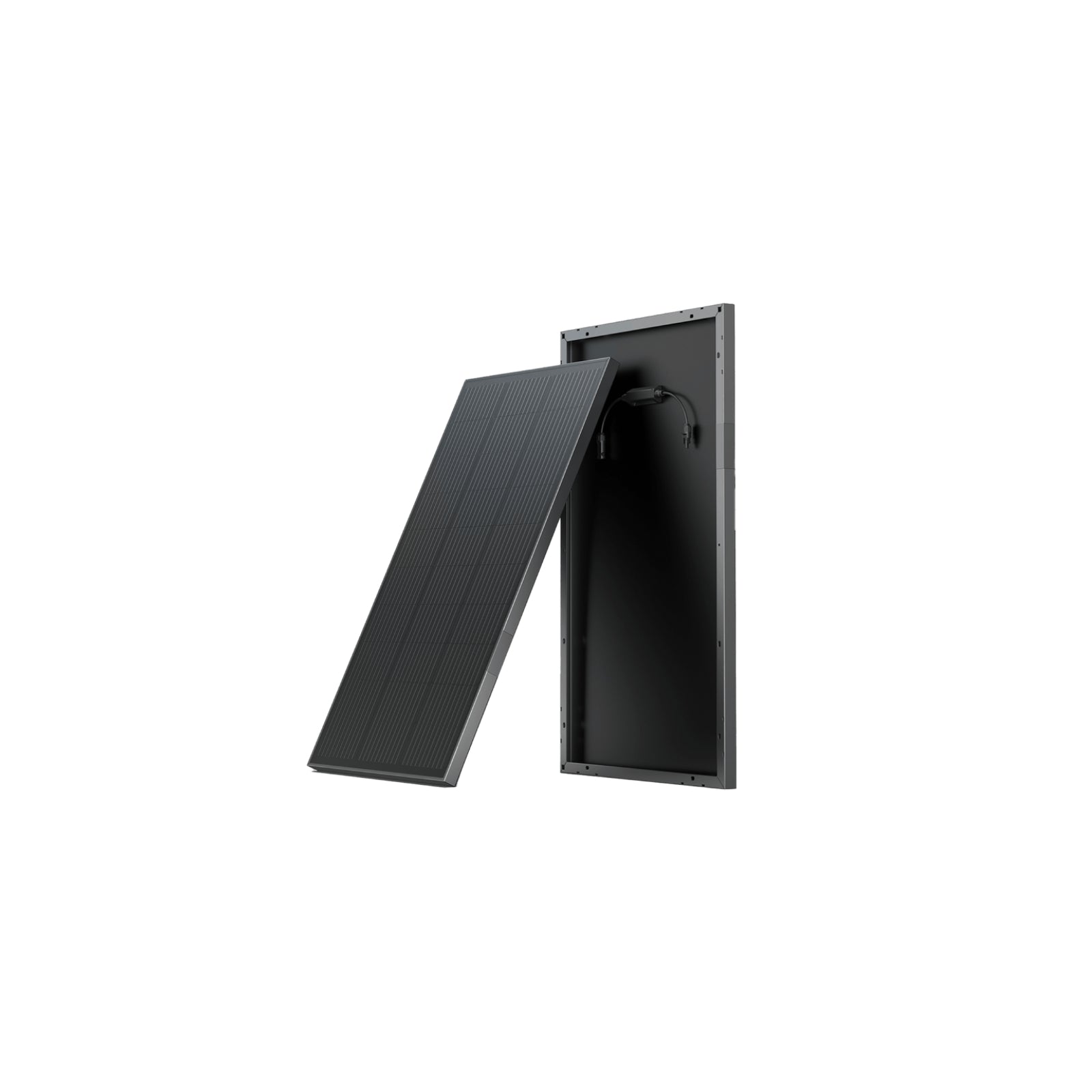

Durable Structure Design for Long-Lasting Performance
Built with a robust anti-corrosive aluminum frame, our 100W rigid solar panel is designed for maintaining solar collection outdoors for years. Its monocrystalline cells are coated with highly protective lamination and tempered glass to enhance performance and offer long-lasting durability.

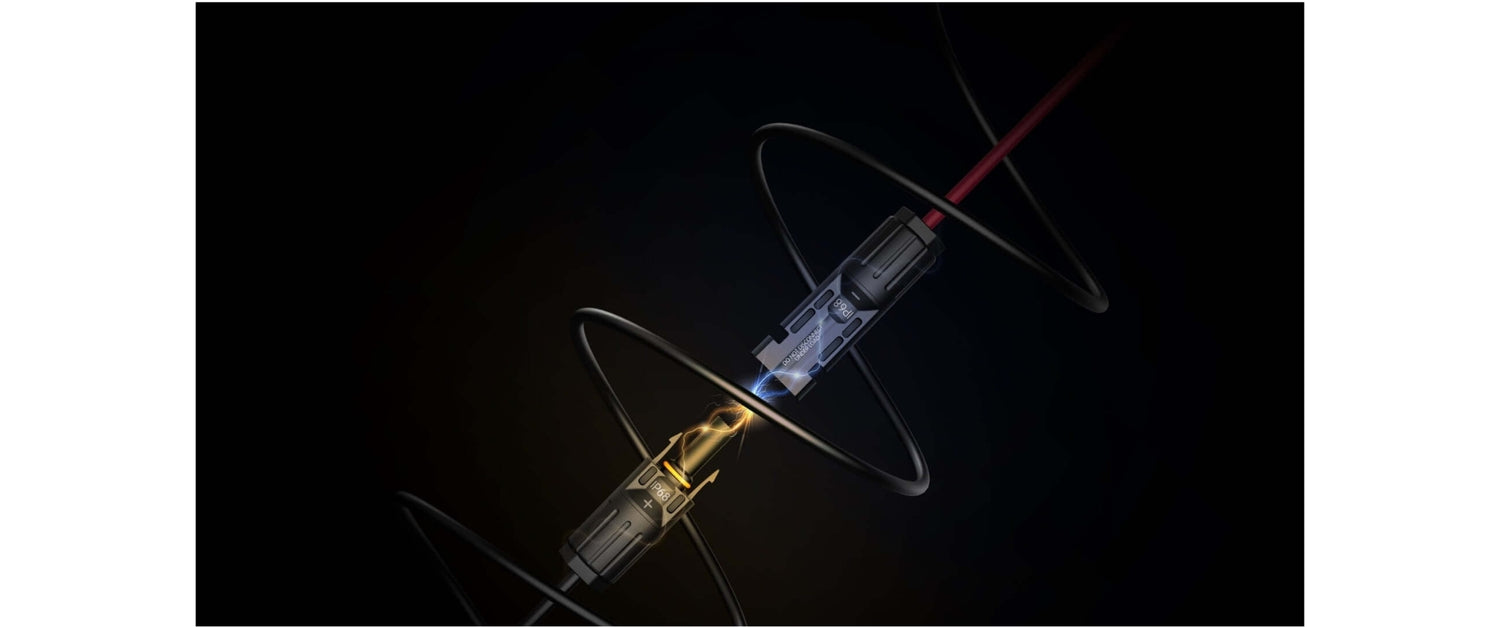

Connect with Your Power Systems at Ease
Using an all-inclusive solar connector, our 100W rigid solar panel can be readily connected with any of your existing third-party solar systems. You can charge up 48v power systems and portable power stations with one or multiple panels.
Specs
EcoFlow 100W Rigid Solar Panel
Solar Panel Weight
Approx. 6.2 kg(13.7 lbs)
Dimensions
98*58.6*3 cm(38.6*23.1*1.2 in)
Rated Power
100 W(+/-5W)
Open Circuit Voltage
20.3 V
Short Circuit Current
6.3 A
Maximum Operating Voltage
17.1 V
Maximum Operating Current
5.9 A
Temperature Coefficient of Rated Power
-0.39%/°C
Temperature Coefficient of Open Circuit Voltage
-0.33%/°C
Temperature Coefficient of Short Circuit Current
0.06%/°C
Maximum System Voltage
600 VDC(UL)
Maximum Fuse Current
15 A
