Sprinter 20 Gallon Water Tank SP-R-20

The 20 gallon wheel well water tank is designed to use the wasted space around the well. It is designed to fit the Sprinter 2500 and will also fit Sprinter T1N and Transit single rear wheel vans. The tank can also fit other vehicle makes and models. Tank measurements are 44.5” long x 16” tall x 12.5” deep.

Details:

• 20 Gallon Water Tank (SP-R-20)

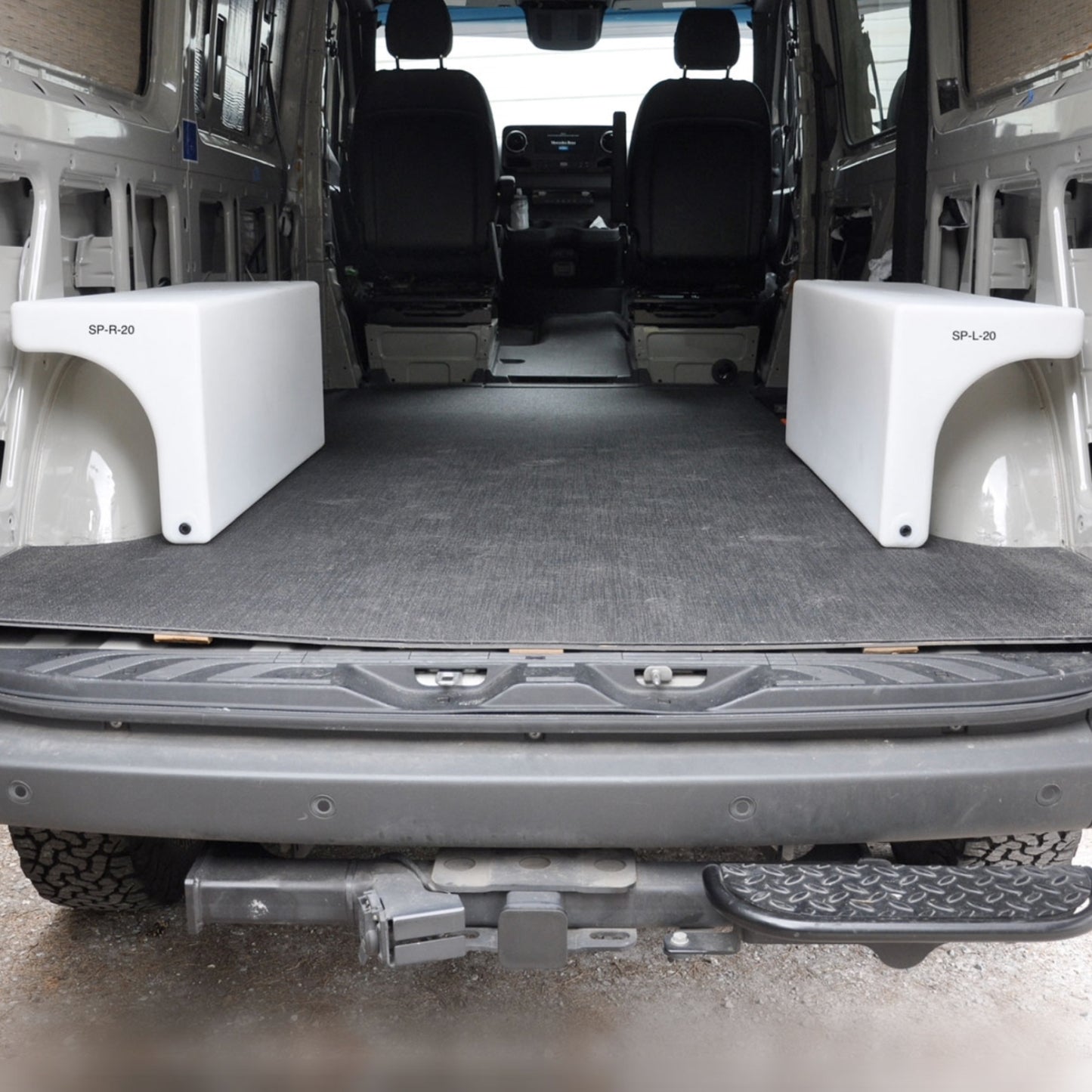

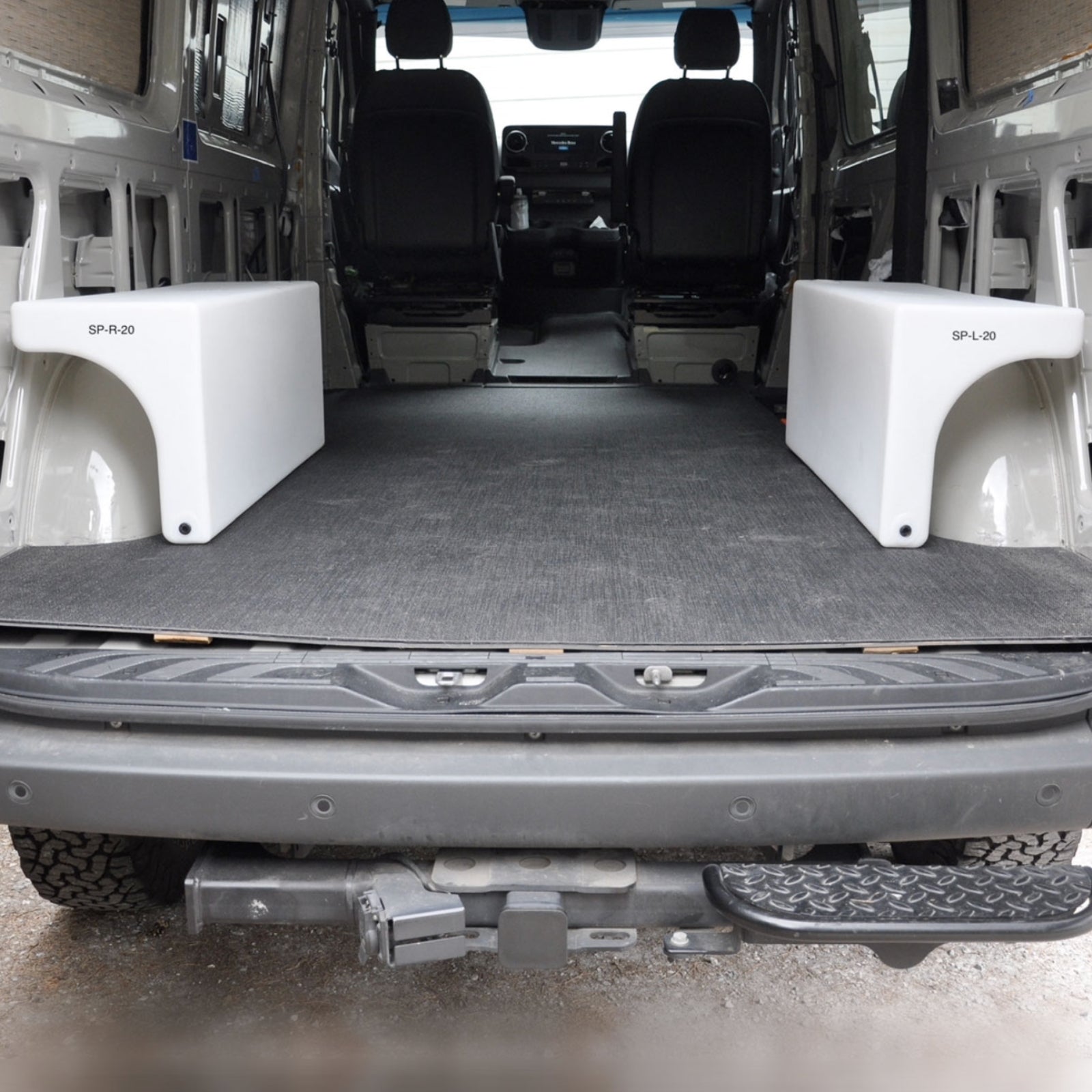

• Can be placed either driver or passenger side

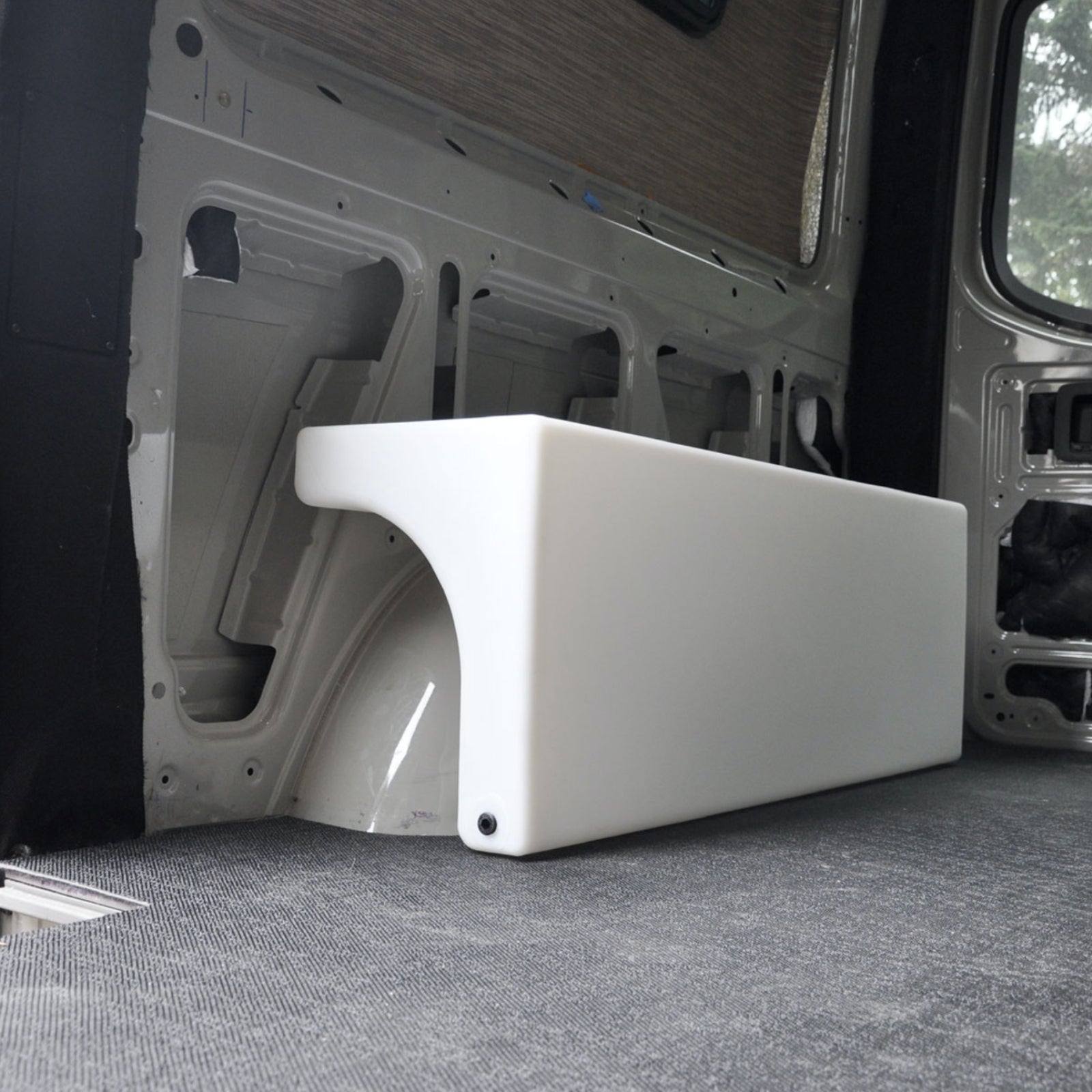

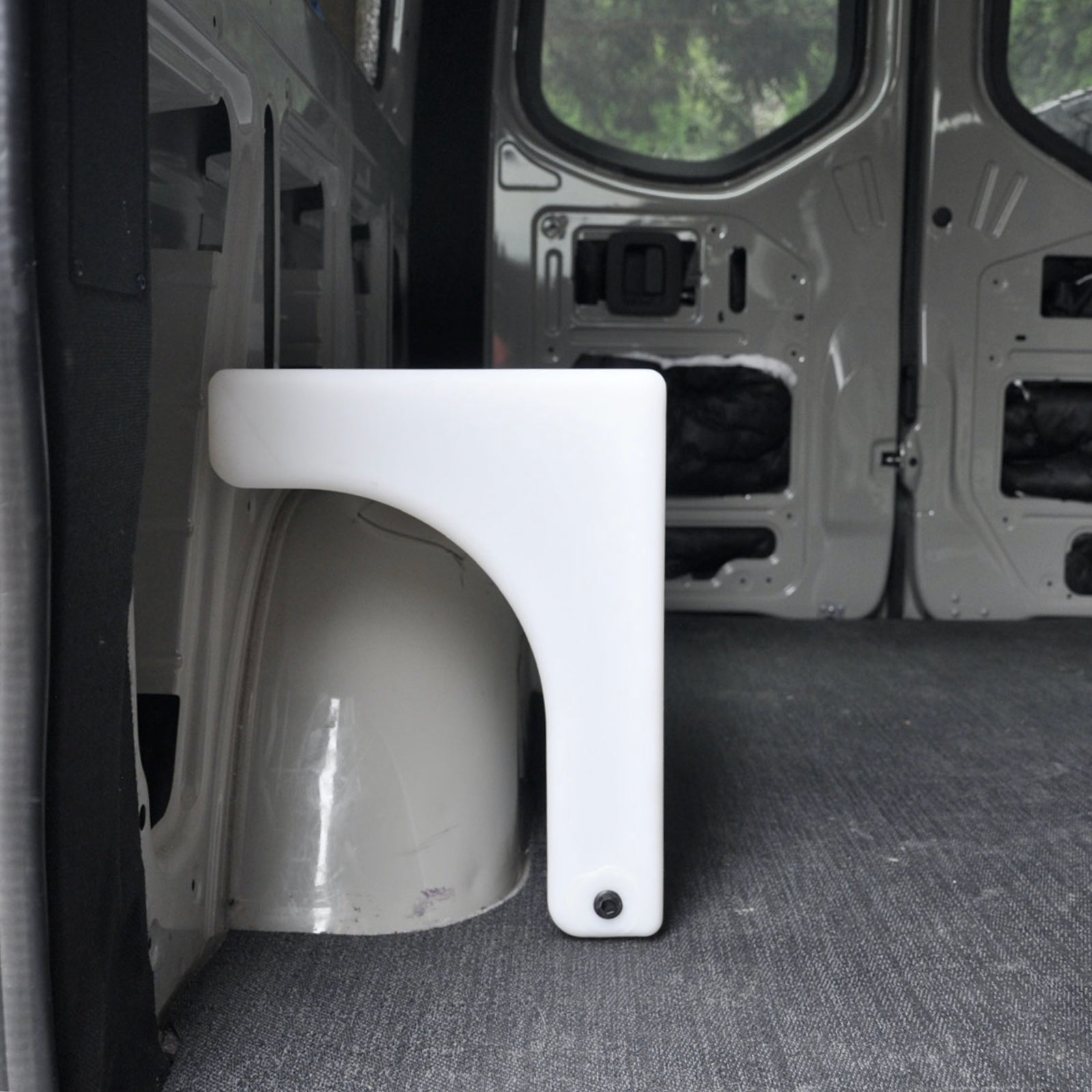

• Tank sits rear of wheel well on driver side and in front of wheel well on passenger side.
• Designed to fit Sprinter Van
• TRANSIT Van wheel wells are slightly smaller than the Sprinter so there is a bit more room for insulation around wheel well.
• **PROMASTER**  needs to be elevated 3.5" to fit the large wheel wells.

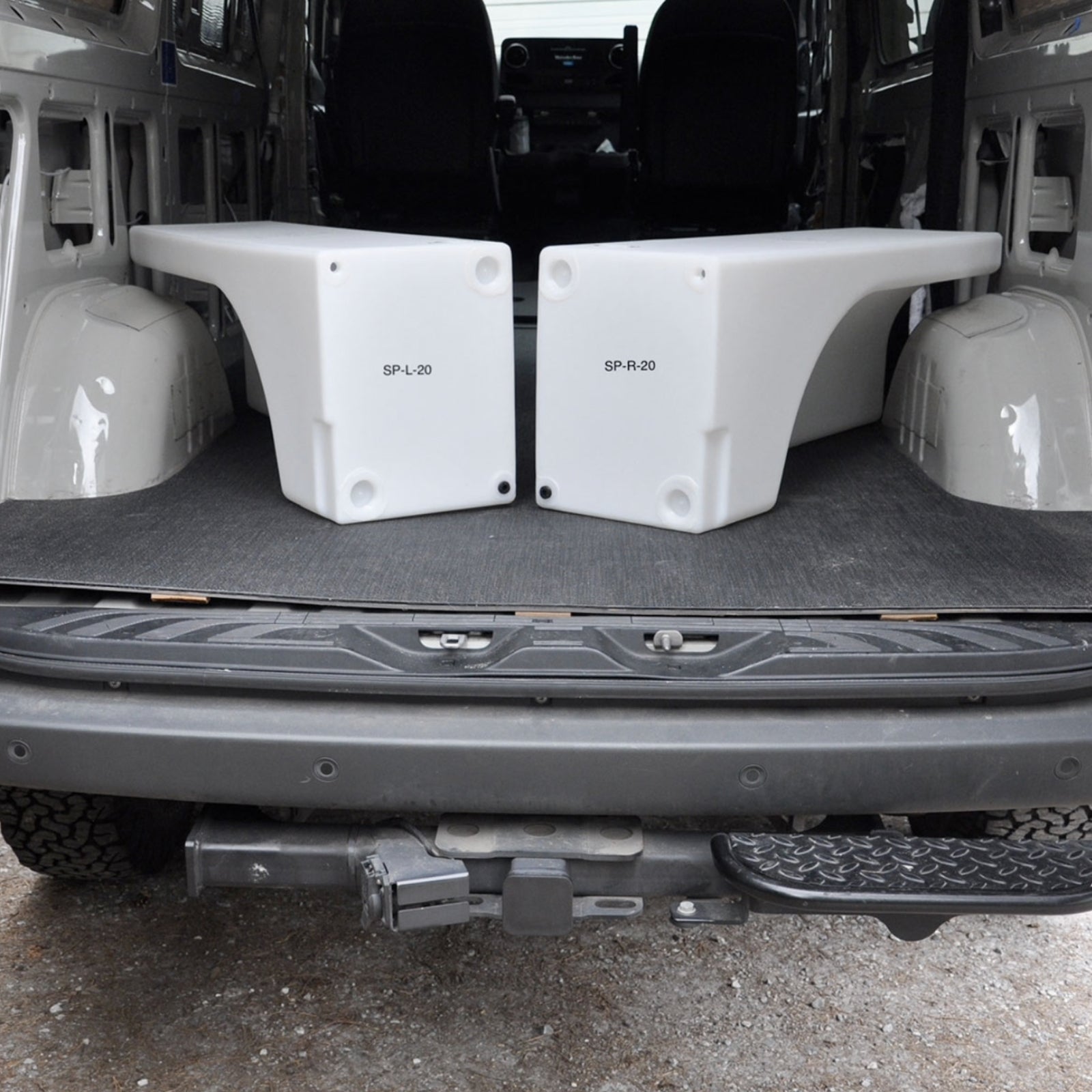

• Tank has (2) 1.5” NPT ports (need to be drilled out) and (2)1/2” NPT ports on rectangular end.  (1) 1/2"  port bottom of open end.
• Tank has (1) 1.5” NPT port (needs to be drilled out) on top or fill or level sensor.
• Tank is designed not to be pressurised (I.e.  Needs to be vented).
• Tanks are made from BPA Free Food Grade Plastic
• Made in the USA
